New Eaton C441K Programmable Logic Controller DeviceNet Communication Module I/O

Name: New Eaton C441K Programmable Logic Controller DeviceNet Communication Module I/O
Brand: Eaton
SKU: C441K
Price: 259.0 USD
Availability: InStock

P/N: C441KNEW · SEALED · Open box

$259.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

DeviceNet module specifications

Compatible platform C441 Motor Insight overload and monitoring relay

Mounting Direct mount to C441 Motor Insight

I/O voltage option (C441K) 120 Vac

DeviceNet baud rates 125 k (default), 250 k, 500 k

Baud rate setting Configuration switches B0 (Sw7) and B1 (Sw8)

Input type IEC 61131-2, Type 1 digital

Input voltage category 120 Vac

Input operating range 80-140 Vac

On-state voltage 79-140 Vac

Electrical, environmental and approvals

Operating temperature -40 °C to 55 °C (-40 °F to 131 °F)

Storage and transport temperature -50 °C to 80 °C (-58 °F to 176 °F)

Humidity 5-95% non-condensing

Pollution degree 3

Ingress protection IP20 (IEC 60947-1)

Circuit board coating Yes

Shock IEC 60068-2-27, 15 G any direction for 11 ms

Vibration IEC 60068-2-6, 10-150 Hz, 3 G, 0.3 mm max peak-to-peak

Agency certifications cULus by UL to UL 508, CSA C22.2 No. 14, CE (Low Voltage and EMC Directives)

Emissions EN 55011 Class A, radiated and conducted

Item specifics

Brand Eaton

Expiration Date Not Applicable/Not Available

Type Programmable Logic Controller DeviceNet Communication Module I/O

Model Eaton C441K

MPN C441K

Controller Platform Programmable Logic Controller DeviceNet Communication Module I/O

Country of Origin China

The Eaton C441K is a DeviceNet communication module for the C441 Motor Insight overload and monitoring relay. It mounts directly to the C441, adding DeviceNet communications plus local I/O on a single network node. It also serves as a drop-in replacement path for legacy Advantage starters with the WPONIDNA module and IT. starters with the DSNAP module.

The module provides four digital inputs rated 120 Vac and two relay outputs. Inputs are IEC 61131-2 Type 1 digital with an 80–140 Vac operating range at 50/60 Hz, 79–140 Vac on-state voltage and 15 mA maximum on-state current. The DeviceNet MAC ID is set with DIP switches 1–6 and the baud rate with the B0/B1 configuration switches; 125 k is the default, with 250 k and 500 k selectable. Preloaded I/O assemblies match those used by the Advantage and IT. starters, so an existing scanner program does not need to be rewritten. Module power is 24 Vdc nominal (18–30 Vdc) drawing approximately 30 mA.

The module is rated for -40 °C to 55 °C operation, 5–95% non-condensing humidity and Pollution Degree 3, with IP20 ingress protection and coated circuit boards. Agency listings are cULus to UL 508, CSA C22.2 No. 14 and CE. The DeviceNet connection is a 5-position screw-terminal connector.

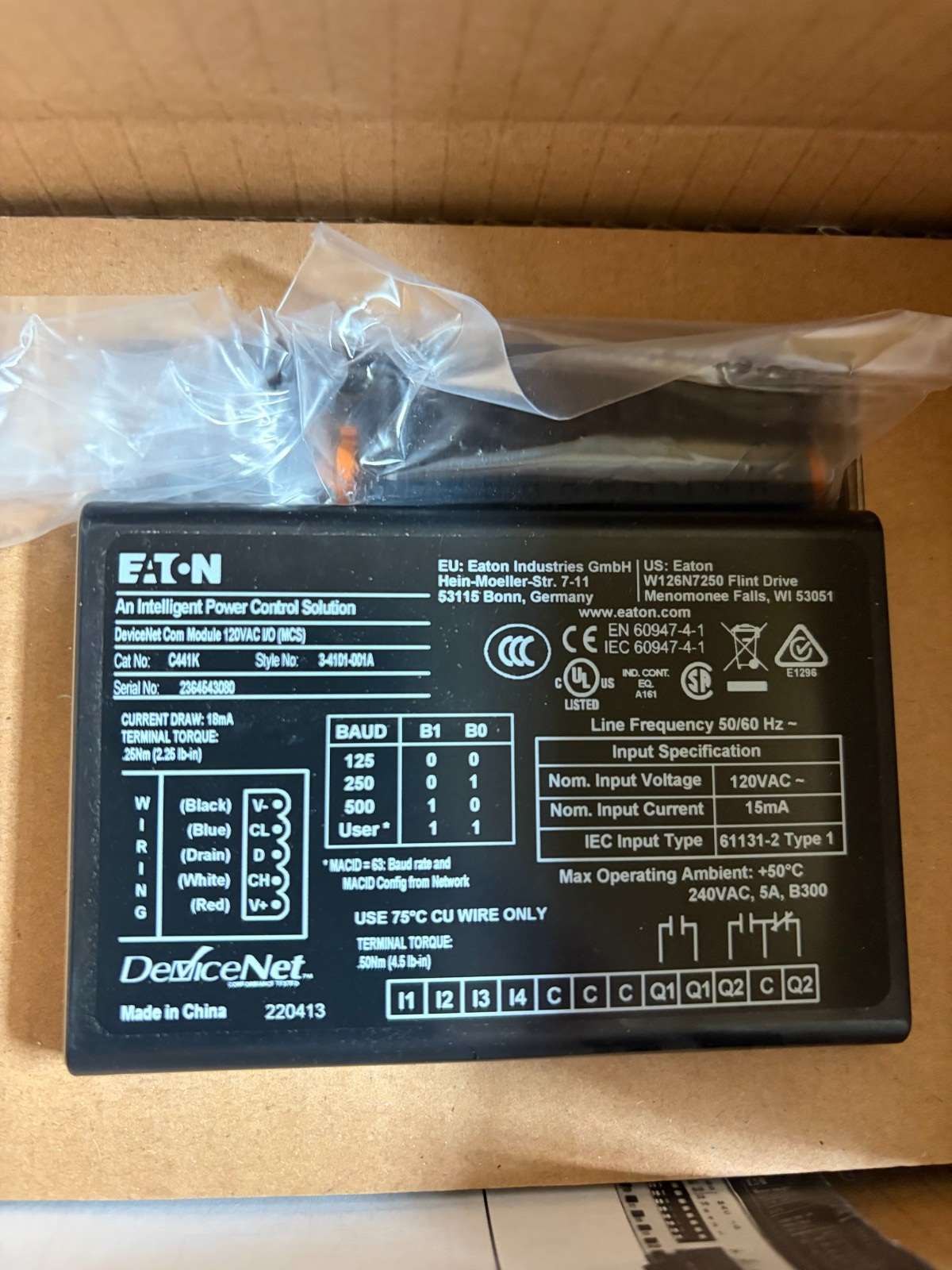

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
