NEW Toshiba PC61910P216 Display / Keypad operator interface Z-078

Name: NEW Toshiba PC61910P216 Display / Keypad operator interface Z-078
Brand: Toshiba
SKU: PC61910P216
Price: 799.0 USD
Availability: InStock

P/N: PC61910P216NEW · SEALED · Open box

$799.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

4 digit 7 segment display Brightly displays the frequency when connected to an IM (Induction Motor), SM (Synchronous Motor), and PMM (Permanent Magnet Motor). Displays feedback (%) when connected to an SVC

Graphical LCD Displays user information in text and numerical form

Commissioning Tool Port Ethernet port used for communication to the commissioning and support tool

EOI firmware reference A3TZ00E

Drive system environment (equipment-level, T300MV2 / MTX / MTX2)

Applicable standard UL, NEMA

Ambient temperature 0 to +40 °C for T300MV2; -20 to +50 °C for MTX series; -45 to +50 °C for MTX2

Storage temperature -20 to +60 °C

Humidity Max 95%, no condensation

Altitude 1000 m Max. above sea level

Vibration 10 to 60 Hz, 0.5 G or less

Item specifics

Brand Toshiba

MPN PC61910P216

The Toshiba PC61910P216 is the DISP display/keypad assembly for the T300MV2, MTX and MTX2 adjustable speed motor drives. Toshiba's drive instruction manual lists it as the display/keypad spare part for these drives, one per drive, and it is the electronic operator interface (EOI) mounted on the cubicle surface for data display and basic drive operations.

The assembly combines a graphical LCD for text and numerical information with a 4 digit 7 segment LED display that shows frequency on induction, synchronous and permanent magnet motors, and feedback percentage on a static var controller. Control is through a rotary encoder that also acts as an Enter/select button plus five keys, with Run, Stop, Mode, Escape and Local/Remote functions. Three LEDs indicate local/remote mode and ready, running, alarm and fault states, and the panel includes RESET and INTERLOCK pushbuttons and an Ethernet commissioning tool port.

A replaceable battery on the back of the LCD board backs up the real time clock and saved parameter settings when control power is off.

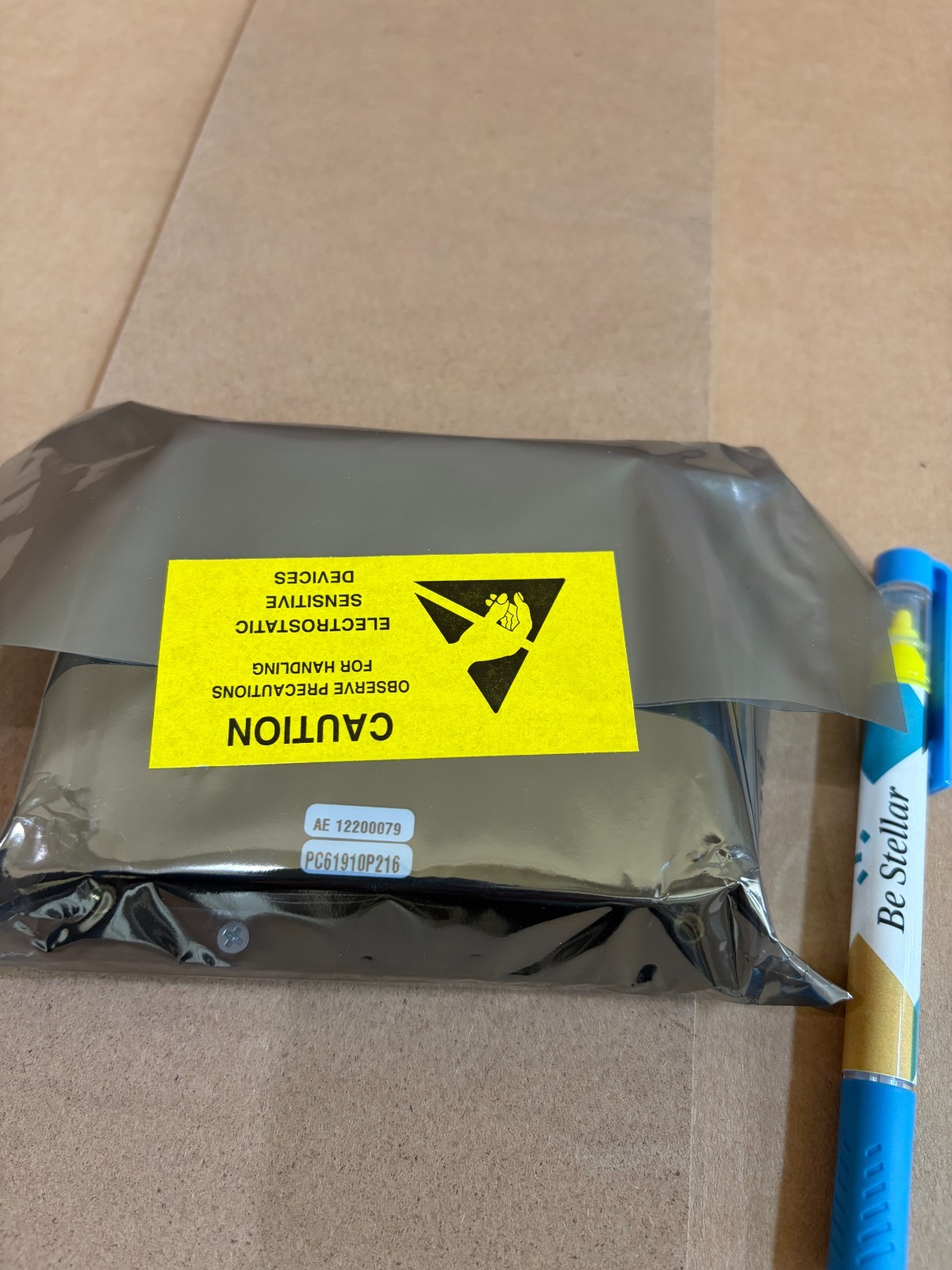

Condition: New – Open box, as listed. The photographs are of a unit from this lot, covered by our warranty.
