MOORE MINIMOORE MULTI CHANNEL MIX/2XPRG/2X4-20MA/12-42DC ISOLATOR CONVERTER

P/N: MIX/2XPRG/2X4-20MA/12-42DCNEW · SEALED

$599.00

In stock — 2 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Moore Industries miniMOORE MIX 2-wire (loop-powered) signal isolator and converter

Channels 2 independent, individually isolated input/output channels

Input types 4-20mA, 0-5V, 1-5V or 0-10V, DIP-switch selectable per channel

Output Two isolated 4-20mA channels; drives up to 600 Ω with a 24V supply

Power 12-42V DC, drawn from the output loop (2-wire)

Accuracy / isolation ±0.1% of span; 1000 Vrms input-to-output and channel-to-channel

Operating temperature -40 to +70 °C at 12-30V supply; -40 to +55 °C at 12-42V

Form factor 25.4 mm (1 in) wide housing for 32 mm G-type and 35 mm Top Hat DIN rails; 230 g

Item specifics

Country of Origin United States

Brand MOORE INDUSTRIES

Mounting Style DIN Rail Mount

Type MIX Multi-Channel Signal Isolator and Converter

The Moore Industries miniMOORE MIX is a 2-wire, loop-powered signal isolator and converter that fits two fully independent analog channels into a rugged metal housing just 25.4 mm (1 in) wide. Each channel is set with DIP switches to accept 4-20mA, 0-5V, 1-5V or 0-10V and delivers an isolated 4-20mA output, so process and factory automation teams can break ground loops, convert mismatched voltage signals to current, boost an overburdened loop, or split one measurement to two receiving systems such as a DCS, PLC or SCADA host. Performance is rated at ±0.1% of span accuracy with 1000 Vrms isolation between input and output and from channel to channel.

This listing is the MIX/2XPRG/2X4-20MA/12-42DC configuration in the universal DIN housing, which mounts on both 32 mm G-type (EN50035) and 35 mm Top Hat (EN50022) rails. The unit draws its 12-42V DC operating power from the output loop — typically supplied by the receiving device — and setup is entirely hardware-based: DIP switches select each channel's input type while front-panel potentiometers trim zero and span. Made in the United States, it carries cCSAus non-incendive approval for Class I, Division 2, Groups A-D locations.

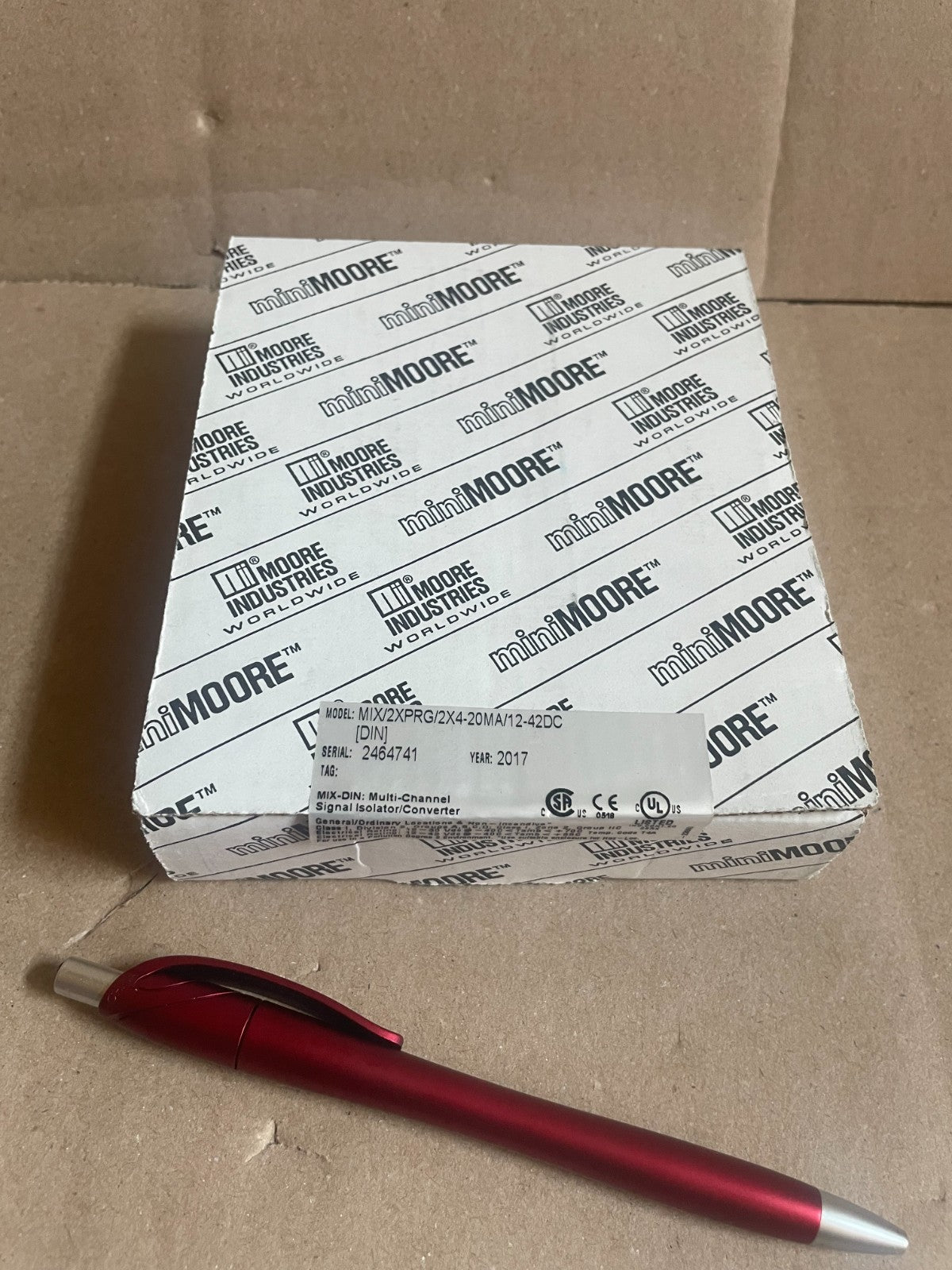

Condition: New · Sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
