New Fisher DVC6200HW2 Fieldvue Valve Positioner w/ Pressure Regulator - 67CFR

Name: New Fisher DVC6200HW2 Fieldvue Valve Positioner w/ Pressure Regulator - 67CFR
Brand: Fisher
SKU: DVC6200HW2
Price: 2599.99 USD
Availability: InStock

P/N: DVC6200HW2NEW · SEALED · Open box

$2,599.99

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Output signal Pneumatic; minimum span 0.4 bar / 6 psig, maximum span 9.5 bar / 140 psig

Maximum supply pressure 10.0 bar / 145 psig, or the actuator rating if lower

Operating ambient temperature –40 to +85 °C / –40 to +185 °F

Actuator compatibility Sliding-stem linear 6.35 to 606 mm travel; quarter-turn rotary 45 to 180°

Connections and construction

Output pressure connection 1/4 NPT internal

Vent connection 3/8 NPT internal

Electrical connection 1/2 NPT internal or M20

Housing weight (aluminum) 3.5 kg / 7.7 lbs

Item specifics

Brand FISHER

Product Brand FISHER

Suitable Media Air

Model DVC6200HW2

MPN DVC6200HW2

Valve Operation Air-Operated

Model Line FIELDVUE

Model Number DVC6200HW2

Voltage (DC) 30 V-DC

Country of Origin United States

The Fisher FIELDVUE DVC6200 is a communicating, microprocessor-based current-to-pneumatic digital valve controller. It converts a 4–20 mA DC input signal into a pneumatic output that positions a control valve, and it uses the HART protocol (HART 5 or HART 7) for configuration, calibration and diagnostics at the valve or over the loop.

HW2 identifies the current hardware revision of the instrument. The unit mounts directly to Fisher 657/667 or GX actuators and to other actuators built to IEC 60534-6-1, IEC 60534-6-2, VDI/VDE 3845 or NAMUR standards. This listing includes the integral-mount Fisher 67CFR pressure regulator, whose mounting pad is part of the 1/4 NPT supply connection on the module base.

The housing carries a Type 4X / IP66 rating, with 1/4 NPT internal supply and output ports, a 3/8 NPT vent and 1/2 NPT or M20 electrical entries. Operating ambient range is –40 to +85 °C, and HART communication is supported alongside the analog control signal.

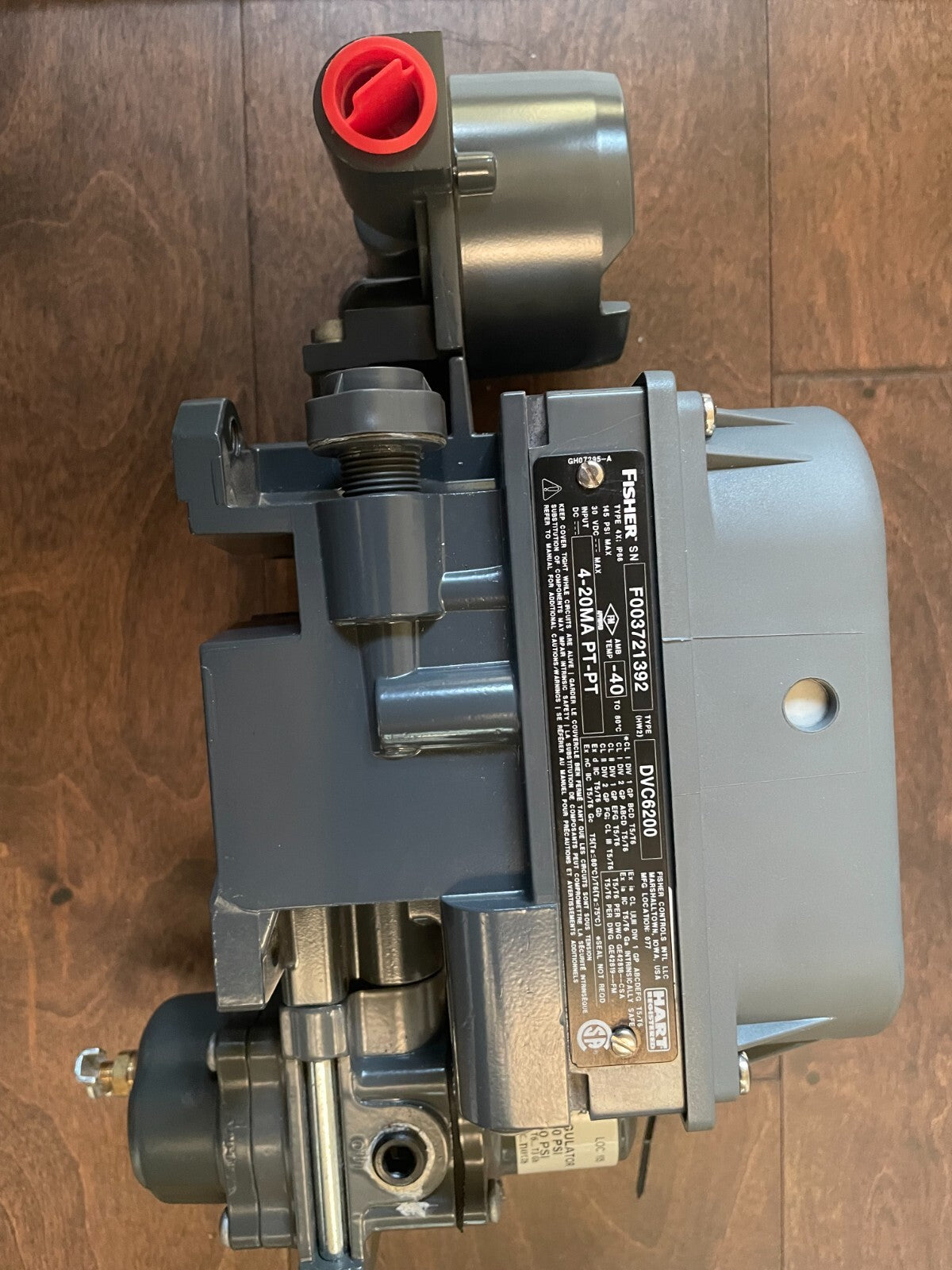

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
