Ralston XHGV-0000 5000psi Hydraulic Hand Pump, 1/4" Male NPT Process Conn

Name: Ralston XHGV-0000 5000psi Hydraulic Hand Pump, 1/4" Male NPT Process Conn
Brand: Ralston
SKU: XHGV-0000
Price: 1499.0 USD
Availability: InStock

P/N: XHGV-0000NEW · SEALED · Open box

$1,499.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Max Pressure 5000 PSI / 350 bar / 35 MPa

Process Connection 1/4" Male NPT

Gauge / Reference Connection 1/4" Female NPT swivel, brass

Hose Quick-test 6900 psi, brass ends, 3 ft (92 cm)

Media Compatibility Petroleum based oil, water

Min Operating Temperature 0 °F / -18 °C

Max Operating Temperature 130 °F / 54 °C

Fine Adjustment Resolution 0.01 psi / 70 Pa

Dimensions (H x W x D) 9.82 x 4.75 x 4.75 in (24.94 x 12.07 x 12.07 cm)

Country of Origin USA

Included items

Hand Pump XHGV 5000 psi hydraulic hand pump (XHGV)

Process Connection 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)

Hose Quick-test 6900 psi, brass ends, 3 ft (QTQT-HOS-3ft)

Gauge Connection 1/4" female NPT swivel, brass (SWIV-2FBW)

Item specifics

Brand Ralston

Type Hydraulic Hand Pump

MPN XHGV-0000

Pressure 5kPSI 35 MPA

Country of Origin United States

The Ralston Instruments XHGV-0000 is a 5000 psi (350 bar / 35 MPa) hydraulic hand pump built for fast, efficient field testing of pressure transmitters, gauges, and switches. An integral gauge adapter lets you quickly attach a precision test gauge to the pump while the fine adjustment control provides resolution to 0.01 psi.

This configuration ships as a complete kit: the XHGV hand pump, a 1/4" male NPT x male Quick-test process connection (no check valve, brass), a Quick-test 6900 psi hose with brass ends at 3 ft (92 cm), and a 1/4" female NPT swivel gauge connection in brass. Operating range is 0 °F to 130 °F (-18 °C to 54 °C) with media compatibility for petroleum-based oil and water. This model has been discontinued and replaced by the QTHP-2FBA; replacement parts remain available.

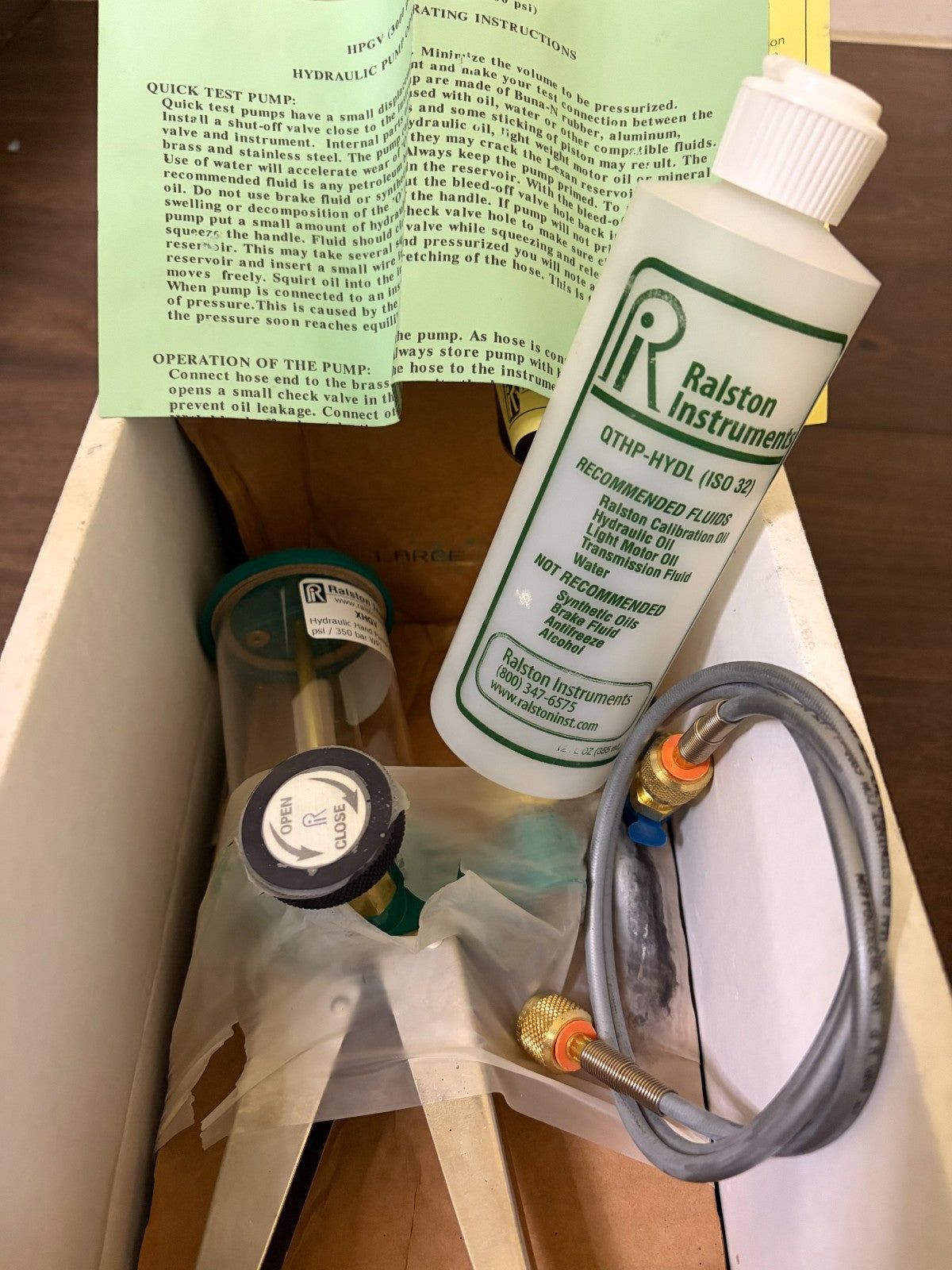

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
