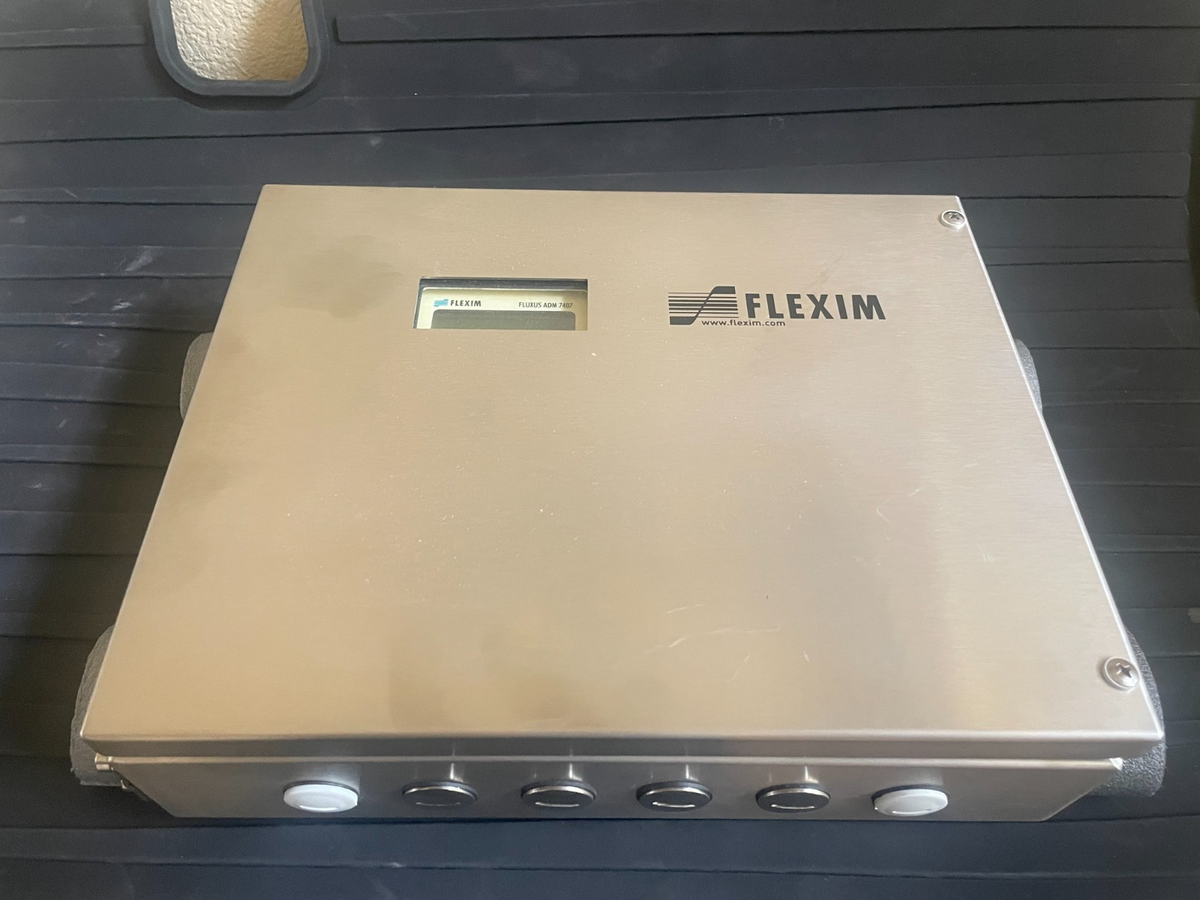

FLEXIM FLUXUS F705 (ADM 7407) Non-Intrusive Ultrasonic Flow Meter, 100-230 V AC, with CDQ2N52 Transducer

The FLEXIM FLUXUS F705 — carried on FLEXIM's permanent clamp-on platform under the legacy designation FLUXUS ADM 7407 — is a fixed-installation, non-intrusive ultrasonic flow meter for liquids. Its transducers clamp onto the outside of the pipe and measure flow by the ultrasonic transit-time difference method, so there is no wetted part, no pressure loss, and no need to cut into the line. The transmitter handles up to two measuring channels, pipe diameters from 6.35 to 1600 mm (0.25 to 63 in), and a bi-directional flow velocity range of 0.01 to 25 m/s with a repeatability of 0.15% of reading. With standard clamp-on transducers the medium temperature range is -40 to 199 °C (-40 to 390 °F). It runs on 100-230 V AC (50/60 Hz) and is used for permanent flow monitoring in water and wastewater, chemical, oil and gas, power, and general process plants.

As listed, this is the F705 / ADM 7407 transmitter in the 100-230 V AC configuration, supplied with a FLEXIM CDQ2N52 clamp-on transducer. A single transducer type on the listing points to a single-channel measurement configuration; confirm the exact transducer count, mounting rails, and cabling against the photographs before purchase.

This unit is sold as pictured and as listed. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
