Trimble CAT CB460 GCS900 EXCAVATOR code Machine Control

Name: Trimble CAT CB460 GCS900 EXCAVATOR code Machine Control
Brand: Trimble
SKU: CB460
Price: 2750.0 USD
Availability: InStock

P/N: CB460USED · TESTED

$2,750.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Trimble CB460 control box for GCS900 grade control / CCS900 compaction control

Display 7.0 in colour TFT, 800 x 480, 1000 cd/m2 typical, ambient light sensor

Operator interface 17 backlit keys, 4 integrated LED lightbars, built-in buzzer

I/O Dual CAN buses, three RS-232 serial ports, Ethernet via 39-pin sealed connector

Software loading Field upgradeable via front USB 2.0 port (Windows CE 5.0)

Power input 9-32 V DC; 30 W with modules, 10 W without

Environmental Fully sealed to IP68; -20 °C to +65 °C operating

Construction High-pressure die-cast aluminium housing, 2.25 kg

Item specifics

Brand Trimble

Model Trimble CAT CB460 GCS900

MPN Trimble Topcon Leica Sokkia

Country of Origin United States

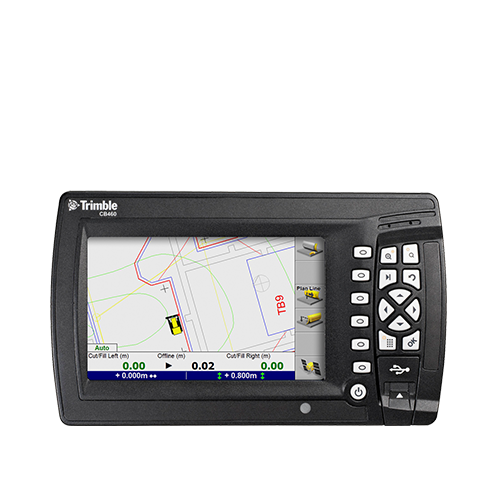

The Trimble CB460 is the premium in-cab control box for the Trimble GCS900 Grade Control System and CCS900 Compaction Control System, putting 3D design surfaces, grade guidance and warnings in front of the operator on a 7.0-inch 800 x 480 colour TFT rated at 1000 cd/m2 typical, with an ambient light sensor for automatic brightness. Four integrated LED lightbars and 17 backlit keys handle day-to-day guidance, and the die-cast aluminium housing is fully sealed to IP68 for life in earthmoving machinery.

Connectivity runs through a 39-pin sealed, military-rated quick-release connector carrying dual CAN buses, three RS-232 serial ports and Ethernet, with a front USB 2.0 port for field software loading. This listing is for the CB460 control box pictured (part number 90460-00), supplied with excavator machine code as stated in the listing title.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
