Trimble R8 Model 3 GNSS Surveying RTK GPS Receiver

Name: Trimble R8 Model 3 GNSS Surveying RTK GPS Receiver
Brand: Trimble
SKU: R8 Model 3
Price: 3595.0 USD
Availability: InStock

P/N: R8 Model 3USED · TESTED

$3,595.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Trimble R8 Model 3 integrated GNSS RTK receiver (base or rover)

GNSS engine Trimble Maxwell 6 chip, 220 channels

Signals tracked GPS L1C/A, L2C, L2E, L5; GLONASS L1C/A, L1P, L2C/A, L2P; SBAS

RTK accuracy (single baseline <30 km) 8 mm + 1 ppm RMS horizontal; 15 mm + 1 ppm RMS vertical

Internal radio 450 MHz UHF transmit/receive, 0.5 W (3-5 km typical range)

Connectivity Bluetooth, serial ports, external GSM/GPRS modem support

Environmental IP67; -40 °C to +65 °C operating

Weight 1.34 kg with internal battery, radio and UHF antenna

Item specifics

Product GPS Receiver

MPN R8 Model 3

Brand Trimble

Country of Origin Mexico

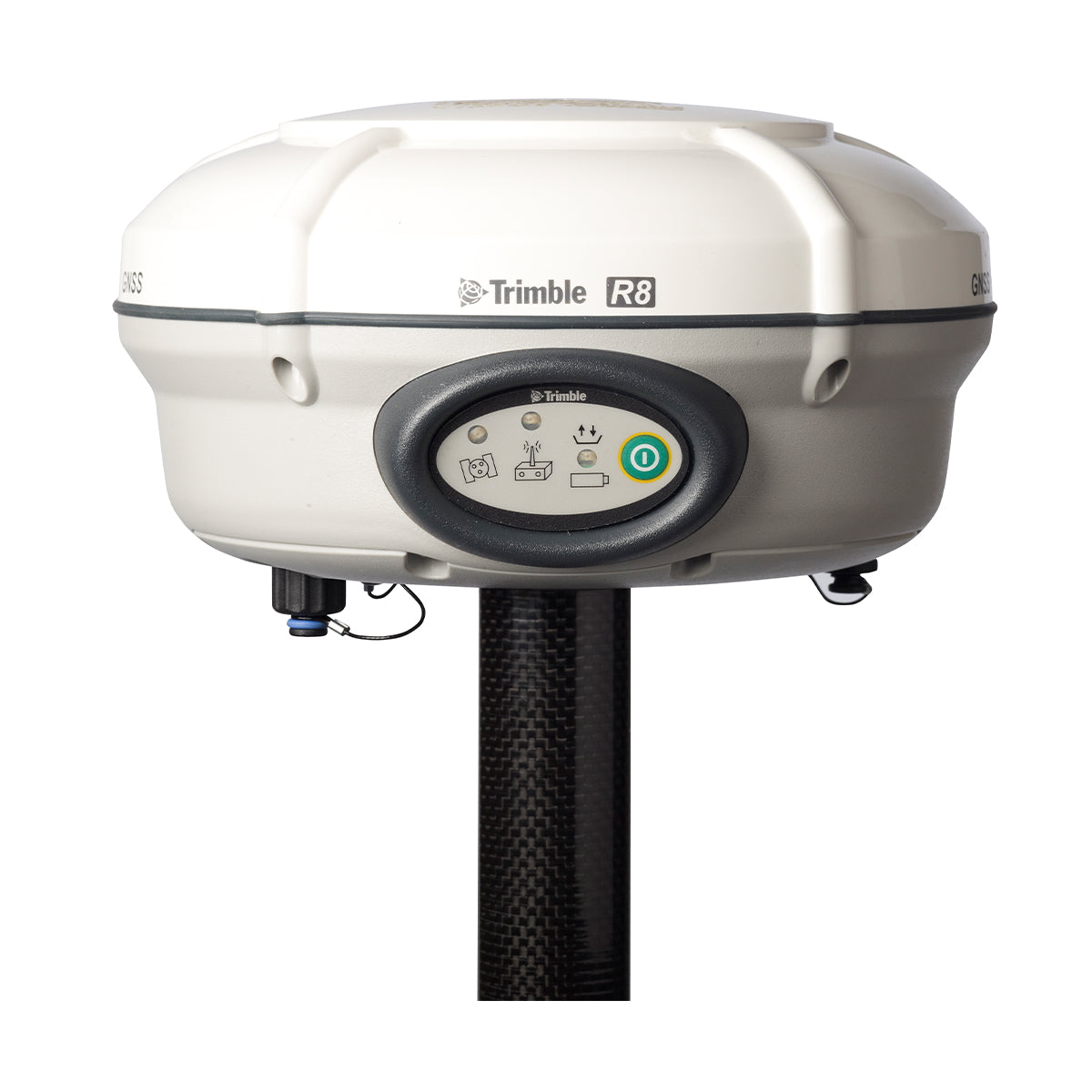

The Trimble R8 Model 3 is an integrated GNSS surveying receiver designed to work as either an RTK base station or rover. Built on the 220-channel Trimble Maxwell 6 chip, it tracks GPS L1C/A, L2C, L2E and L5 alongside GLONASS and SBAS, while Trimble R-Track with Signal Prediction keeps precision positioning alive through brief correction dropouts under canopy or near structures. Trimble rates RTK performance at 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical on baselines under 30 km.

A 450 MHz transmit/receive UHF radio is built into the sealed IP67 housing, so the same unit can broadcast corrections as a base or ride the pole as a rover, with Bluetooth and serial ports for controller connections. This listing is for the single R8 Model 3 receiver pictured, complete with cable, battery, charger and hard case.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
