TOSHIBA VFAS1-4075PL-X9 380/480V Transistor Inverter

P/N: VFAS1-4075PL-X9USED · TESTED

$990.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Toshiba TOSVERT VF-AS1 (AS1) adjustable speed drive / transistor inverter

Rating 7.5 kW (10 HP), 460 V class, 17.6 A output

Input 380-480 V AC, 3-phase, 50/60 Hz

Overload 100% continuous; 150% for 60 seconds

Control I/O 8 programmable discrete inputs, 3 discrete outputs, 3 analog inputs, 2 analog outputs

Communications RS485 (two-wire/four-wire) built in

Braking Built-in dynamic braking circuit

Item specifics

Model TOSHIBA VFAS1-4075PL-X9 380

MPN VFAS1-4075PL-X9

Brand Toshiba

Country of Origin Japan

Toshiba's TOSVERT VF-AS1 is a high-performance industrial inverter family spanning 0.75 kW to 500 kW in the 400 V class, known for modular construction, an unusually deep parameter set, and drives that run with little or no programming out of the box. Dynamic braking, an EMC filter, and two-wire/four-wire RS485 communications are built in, with overload capacity of 100% continuous and 150% for 60 seconds.

This listing is a VFAS1-4075PL-X9 transistor inverter — the 7.5 kW (10 HP), 460 V class rating, delivering 17.6 A to a three-phase motor from a 380/480 V, 50/60 Hz supply; the -X9 suffix denotes a factory configuration variant of the standard 4075PL rating. Eight programmable discrete inputs, three discrete outputs, and five analog channels handle machine-level I/O, and the unit has passed our 12-point Orbitz Certified inspection.

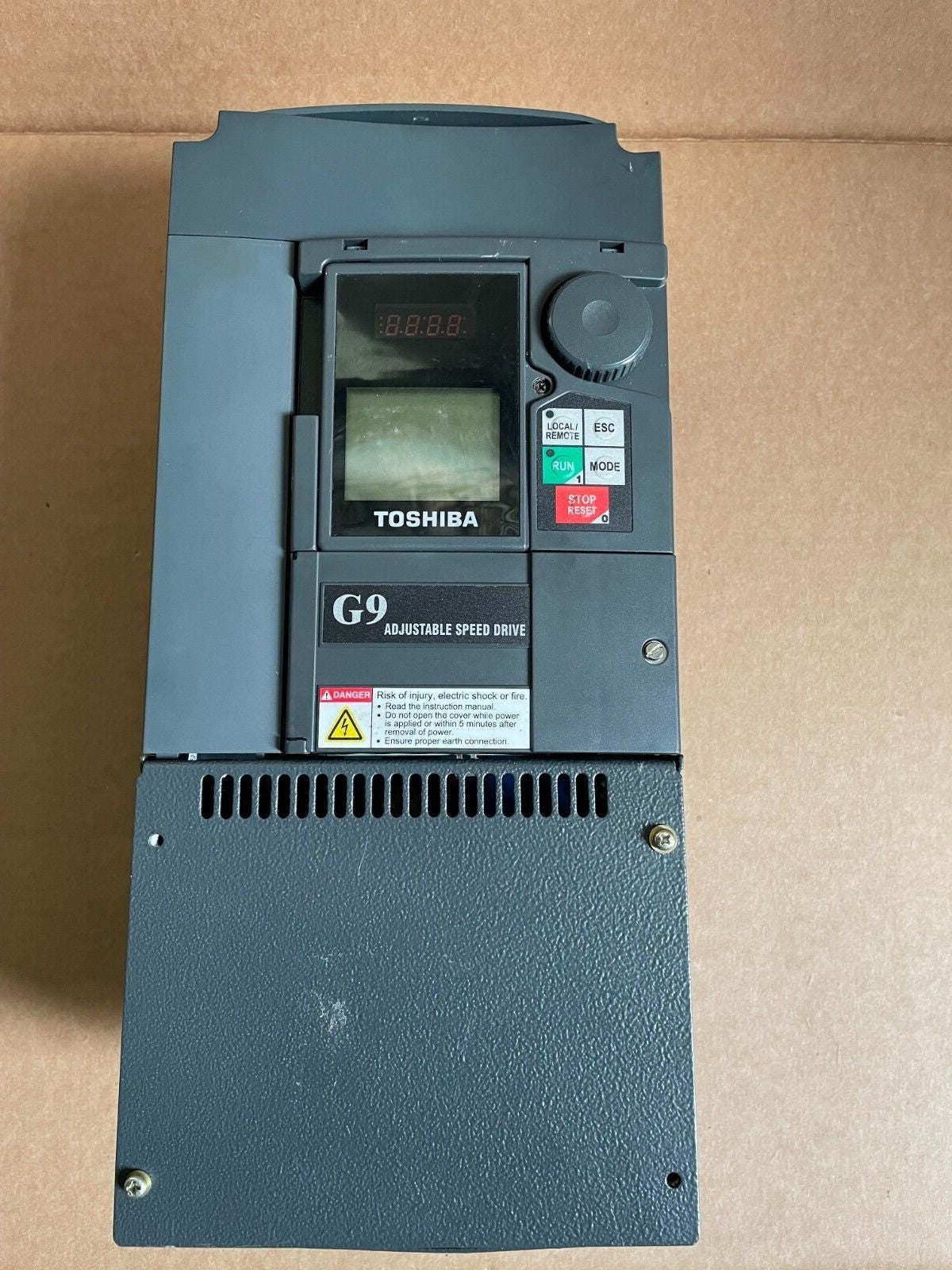

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
