Siemens SITRANS P DS III 7MF4033-1BA10-1NC6-Z Pressure Transmitter

P/N: 7MF4033-1BA10-1NC6-ZUSED · TESTED

$699.25

In stock — 3 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Measuring Range 0.15-14.5 PSI (0.01-1 bar)

Max Working Pressure 87 PSI (6 bar)

Output Signal 4-20 mA, HART protocol

Accuracy <=0.075% of calibrated span

Process Connection 1/2-14 NPT female thread

Power Supply 10.5-45 VDC, 2-wire loop

Enclosure Die-cast aluminum, IP65

Hazardous Location FM/CSA intrinsically safe + explosion-proof (is+xp)

The Siemens SITRANS P DS III 7MF4033-1BA10-1NC6-Z is a two-wire, microprocessor-based gauge pressure transmitter with HART communication, built around a piezo-resistive silicon sensor and a silicone-oil-filled measuring cell. It is factory-calibrated to a continuously adjustable span of 0.01–1 bar (0.15–14.5 PSI), rated for a maximum working pressure of 6 bar (87 PSI), and outputs a standard 4–20 mA signal over a 10.5–45 V DC two-wire loop. Measurement accuracy is ±0.075% of calibrated span at full range, the die-cast aluminum housing carries an IP65 ingress rating, and the stainless steel (mat. no. 1.4404/316L) wetted measuring cell is rated from –40 to +100°C. Transmitters in this range are typically used for gauge-pressure monitoring of gases, vapors, and liquids in general industrial process, utility, and HVAC systems.

The order code identifies the exact build: "1B" selects the silicone-oil-filled, standard-cleaned measuring cell on the 0.01–1 bar (0.15–14.5 PSI) span; "A0" specifies an all-stainless-steel wetted assembly (seal diaphragm and connection shank, mat. no. 1.4404/316L) on a die-cast aluminum housing; and the final "1" of that block sets a 1/2-14 NPT female-thread process connection. In the second block, "1N" designates the standard housing design with FM and CSA "intrinsic safety and explosion-proof (is + xp)" hazardous-location approval, "C" specifies a 1/2-14 NPT screwed electrical cable gland, and "6" indicates the unit carries a visible digital indicator. The trailing "-Z" suffix denotes one or more factory-applied options beyond the base catalog number – such as a calibration certificate, TAG designation, or custom range setting – whose specific content isn't identified on the listing.

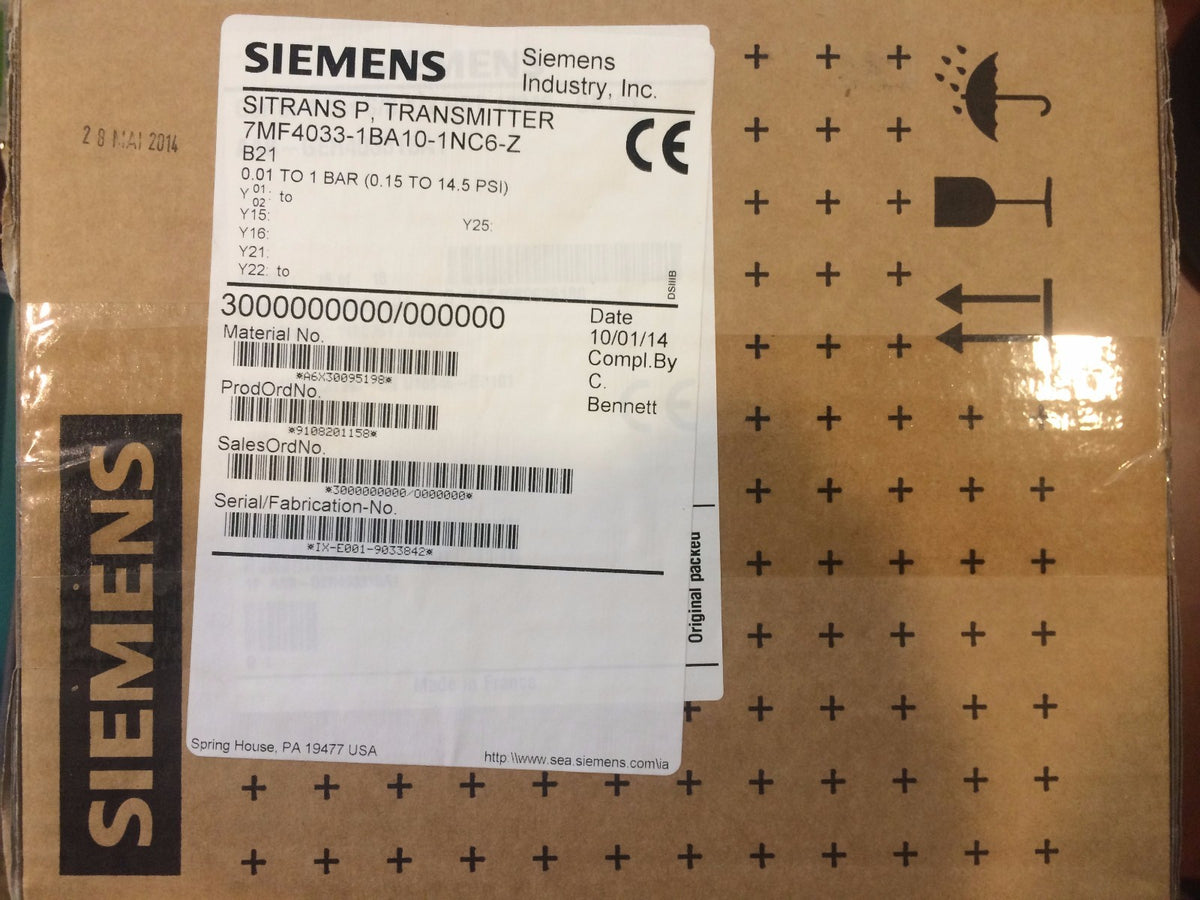

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
