Rosemount 3051S2TG4A2A11A1AE5M5 In-Line Gauge Pressure Transmitter

The Rosemount 3051S2TG4A2A11A1AE5M5 is an In-Line SuperModule pressure transmitter from Emerson's Rosemount 3051S Scalable series, configured for gauge pressure measurement in an all-welded, hermetic stainless steel sensor module. It is built to Range 4, covering –14.7 to 4,000 psi (–1.01 to 275.79 bar) gauge, with a reference accuracy of ±0.035% of span and 150:1 rangedown (Classic performance class). Output is 2-wire 4–20 mA with a HART digital signal superimposed on the loop, powered from 10.5–42.4 Vdc, and the piezoresistive sensor uses a 316L stainless steel isolating diaphragm; ambient operating temperature with the integral LCD display fitted is –40 to 176°F (–40 to 80°C). It is typically applied to direct, threaded gauge-pressure measurement on high-pressure hydraulic, pump, and process piping where a compact in-line footprint is preferred over a coplanar or flanged transmitter.

In the model code, 2 denotes Classic performance class, T the In-Line connection type, G gauge measurement, 4A the –14.7 to 4,000 psi range, 2 the 316L stainless steel isolating diaphragm, A11 factory assembly to a Rosemount 306 in-line block-and-bleed manifold, A the 4–20 mA HART output, 1A the Plantweb housing, E5 USA explosion-proof/dust-ignition-proof approval, and M5 the integral LCD display. As configured, the unit ships as a complete, factory-calibrated and leak-tested gauge-pressure package with its isolation manifold, housing, and display already installed.

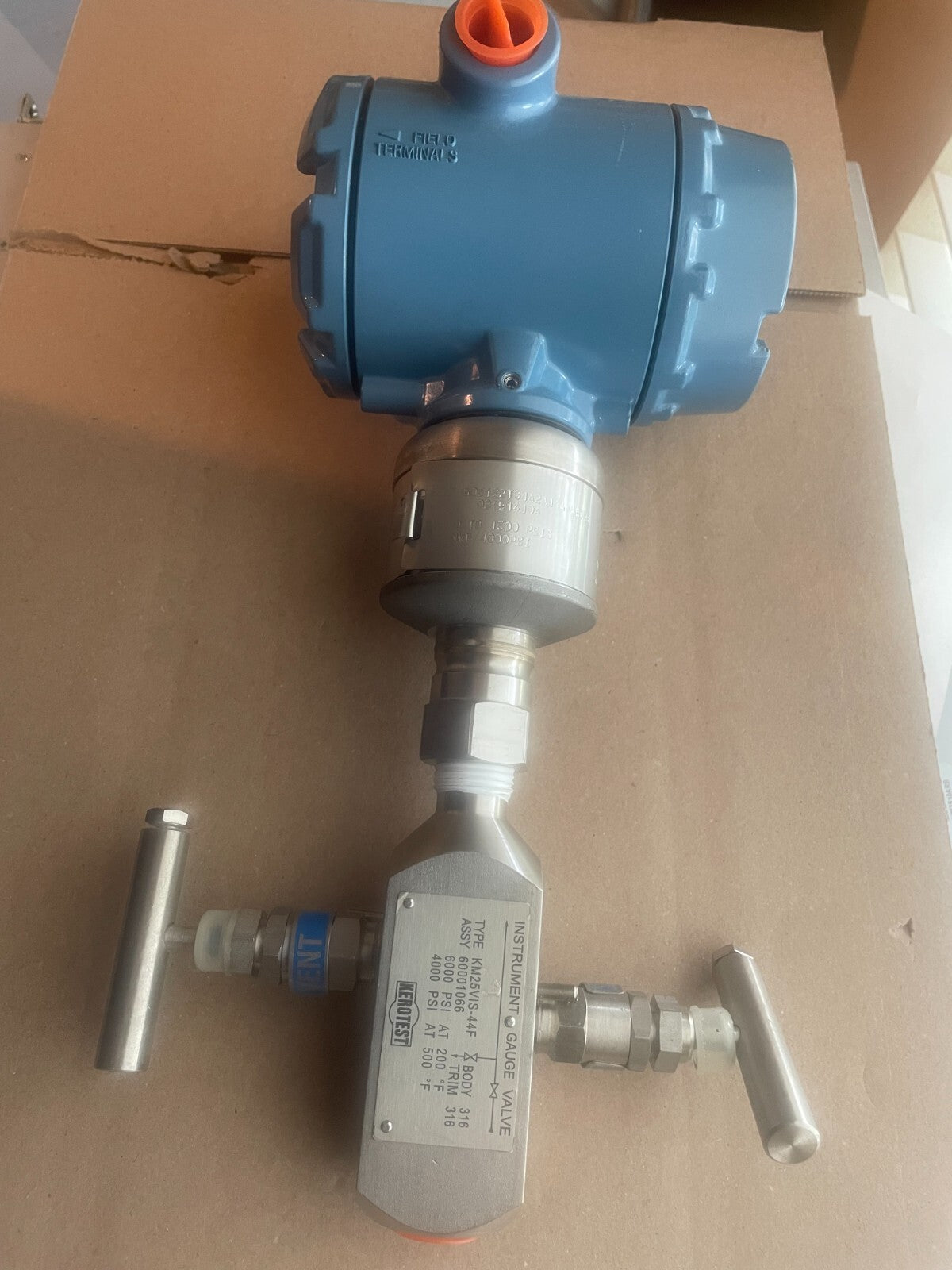

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
