Red Lion CSMSTRSX Modular Controller Master CSMSTRSX

P/N: CSMSTRSXNEW · SEALED · Open box

$750.00

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Enhanced master for the Red Lion Modular Controller Series (multi-zone PID control and data acquisition)

Module capacity Up to 16 slave modules, powered and auto-configured over the high-speed backplane

Communication ports 2x RS-232, 1x RS-422/485, 10/100 Base-T(X) Ethernet, USB programming port

Visualization Built-in web server with virtual HMI up to QVGA (320 x 240) resolution

Data logging CompactFlash Type II slot logs process data directly to CSV files

Expansion Option-card slot for CANopen, DeviceNet, PROFIBUS, or additional RS-232/485

Power and mounting 24 VDC ±10% (3.5 A max fully loaded); snaps onto DIN top-hat rail

Software Crimson 2.0 (free download) via USB, RS-232, Ethernet, or CompactFlash

Item specifics

Brand Red Lion Controls

Display Screen Size Unlimited

Model CSMSTRSX

MPN CSMSTRSX

Controller Platform Series 3

Country of Origin United States

UPC 98765434567

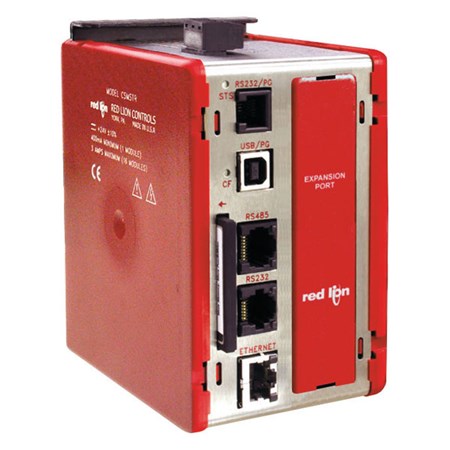

The Red Lion CSMSTRSX is the enhanced master for the Modular Controller Series, a DIN-rail automation platform built for multi-zone PID control and data-acquisition work. It coordinates up to 16 slave modules over a high-speed backplane, powering each one, addressing it automatically at start-up, and reprogramming replacement modules from stored configurations. Two RS-232 ports, an RS-422/485 port, and 10/100 Ethernet tie the system into PLCs, PCs, and SCADA hosts through Red Lion’s extensive protocol driver library, while the built-in data logger writes process data to CompactFlash as CSV files and the onboard web server publishes a QVGA virtual HMI to any networked PC.

This listing is for the CSMSTRSX master module itself (MPN CSMSTRSX, US-made per the listing) — the variant with data logger, web server, virtual HMI, and an expansion slot that accepts CANopen, DeviceNet, PROFIBUS, or additional serial option cards. Red Lion has since declared the Modular Controller Series end of life, so a working master like this is the practical way to keep an installed system running without replatforming. Configuration is done in the free Crimson 2.0 software over USB, RS-232, Ethernet, or CompactFlash, and the unit runs from a 24 VDC supply.

Condition: New (open box), as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.
