QUALITROL 909-300-01 SEAL- IN RELAY 24VDC - NEW

Name: QUALITROL 909-300-01 SEAL- IN RELAY 24VDC - NEW
Brand: Qualitrol
SKU: 909-300-01
Price: 2250.0 USD
Availability: InStock

P/N: 909-300-01NEW · SEALED

$2,250.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Qualitrol 909 Series seal-in (latching) relay for transformer protection circuits

Function Latches momentary alarm/trip contact closures and holds them until the front-panel reset button is pressed

Works with Qualitrol 900 (oil-space) and 910 (gas-space) rapid pressure rise relays and other momentary-contact instruments

Outputs Two output relays for simultaneous alarm and trip control

Output contact rating 1/4 HP @ 125/250 VAC; 8 A @ 250 VAC; 8 A @ 30 VDC (resistive)

Reaction time Under 20 ms

Supply input Jumper-selectable 24 VDC, 48 VDC, or line-voltage AC/DC; 24 VDC per this listing

Reliability features Status LEDs; redundant make/break input circuit guards against false trips from damaged wiring

Item specifics

Brand QUALITROL

Type Screw Terminal

Voltage 24VDC

Model 909-300-01

MPN 909-300-01

The Qualitrol 909-300-01 is a seal-in (latching) relay from the Qualitrol 909 Series, built for transformer protection schemes where a momentary contact closure has to be captured and held. Qualitrol’s 900 (oil-space) and 910 (gas-space) rapid pressure rise relays actuate only briefly during a sudden-pressure event; the 909 latches that momentary signal, holds the alarm and trip circuits with LED status indication, and releases only when the front-panel reset button is pressed. It is the standard companion device for Qualitrol RPRR protection in utility substations, transformer manufacturing, and industrial power plants.

This listing is for a Qualitrol 909-300-01 with screw-terminal field wiring, listed for 24 VDC control power. The unit accepts a jumper-selectable supply, drives two output relays for simultaneous alarm and trip control, and uses a redundant make/break input circuit that protects against false trips caused by damaged wiring.

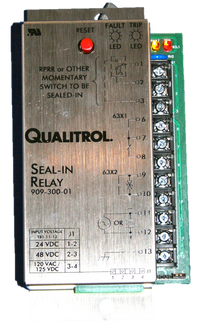

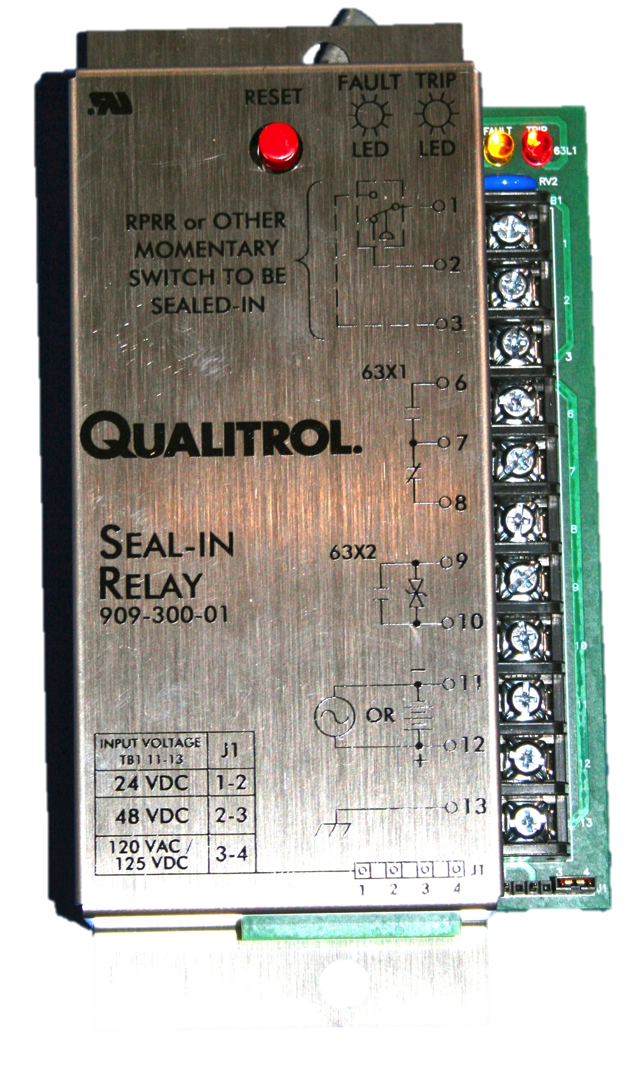

Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.
