Eaton PDG23G0225TFFL 225A 3-Pole 480V Molded Case Circuit Breaker

The Eaton PDG23G0225TFFL is a Power Defense globally rated, Frame 2 molded case circuit breaker configured for 3-pole distribution and feeder protection. It carries a continuous current rating of 225 A, a voltage rating of 600 Vac / 250 Vdc, and a fixed thermal-magnetic trip unit providing long-time and instantaneous protection. Its interrupting capacity is 35 kA at 480 Vac, UL 489 listed and CSA certified, suiting it to branch, feeder, and equipment protection in panelboards, switchboards, and motor control centers on 480 Vac-class distribution systems.

In Eaton's Power Defense catalog numbering, the G in the third position identifies the 480 Vac interrupting class, the 2 denotes Frame 2, the 3 denotes three poles, 0225 is the 225 A continuous current rating, and the TFFL suffix denotes a thermal-magnetic trip unit with fixed (non-adjustable) thermal and magnetic settings and standard load-side-only terminals. This listing is for the breaker itself.

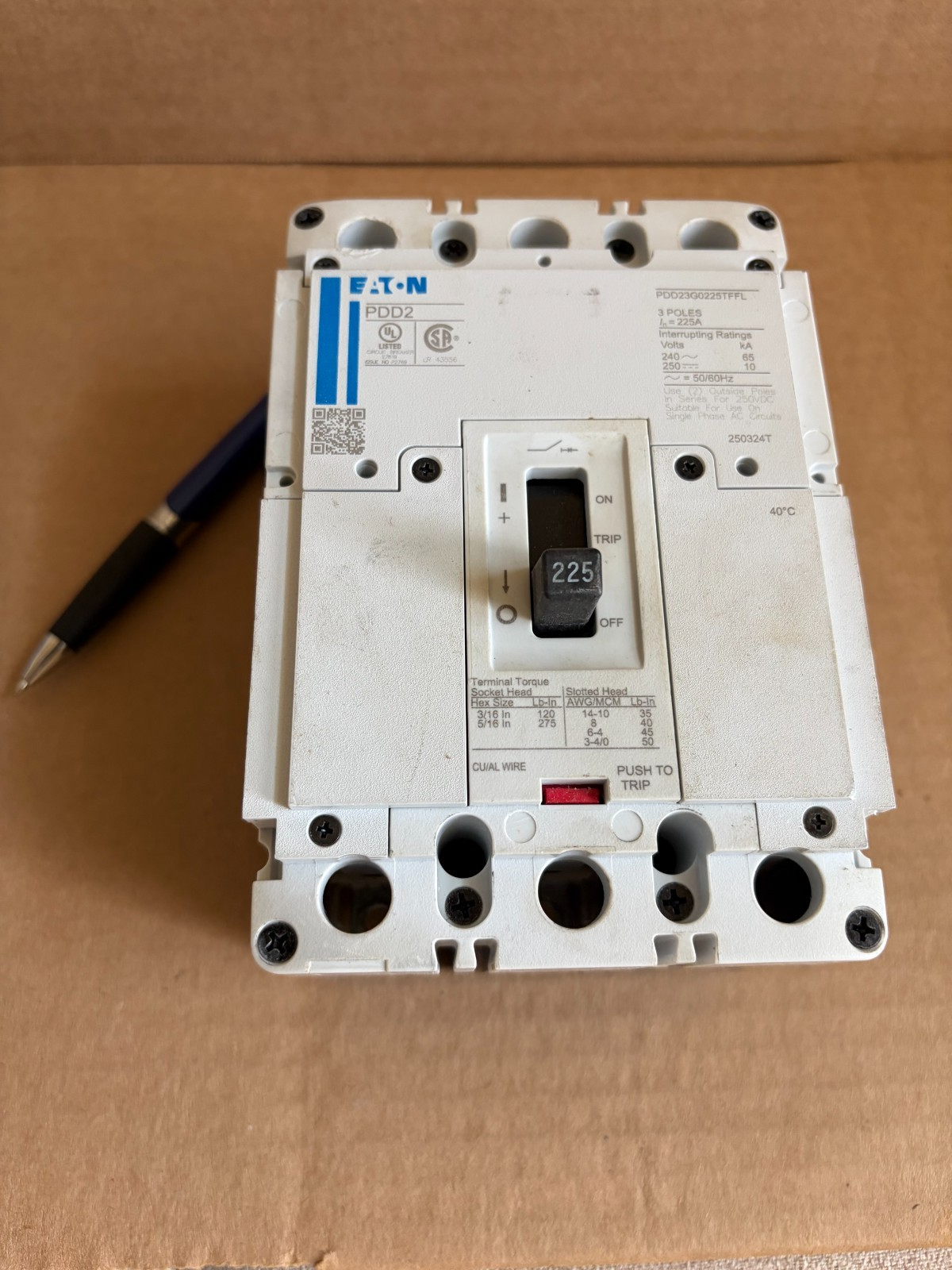

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
