Eaton HFD3175L 175A 3-Pole 600VAC Molded Case Circuit Breaker

Name: Eaton HFD3175L 175A 3-Pole 600VAC Molded Case Circuit Breaker
Brand: Eaton
SKU: HFD3175L
Price: 899.0 USD
Availability: InStock

P/N: HFD3175LNEW · SEALED · Open box

$899.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Continuous current 175 A at 40 °C

Poles 3-pole

Voltage rating 600 Vac (50/60 Hz), 250 Vdc

Interrupting capacity (UL) 100 kA @ 240 V · 65 kA @ 480 V · 25 kA @ 600 V · 22 kA @ 250 Vdc

Trip unit Fixed thermal-magnetic, non-interchangeable

Frame / series Cutler-Hammer Series C, HFD F-frame (high interrupting)

Terminals Line and load end (cable-in/cable-out)

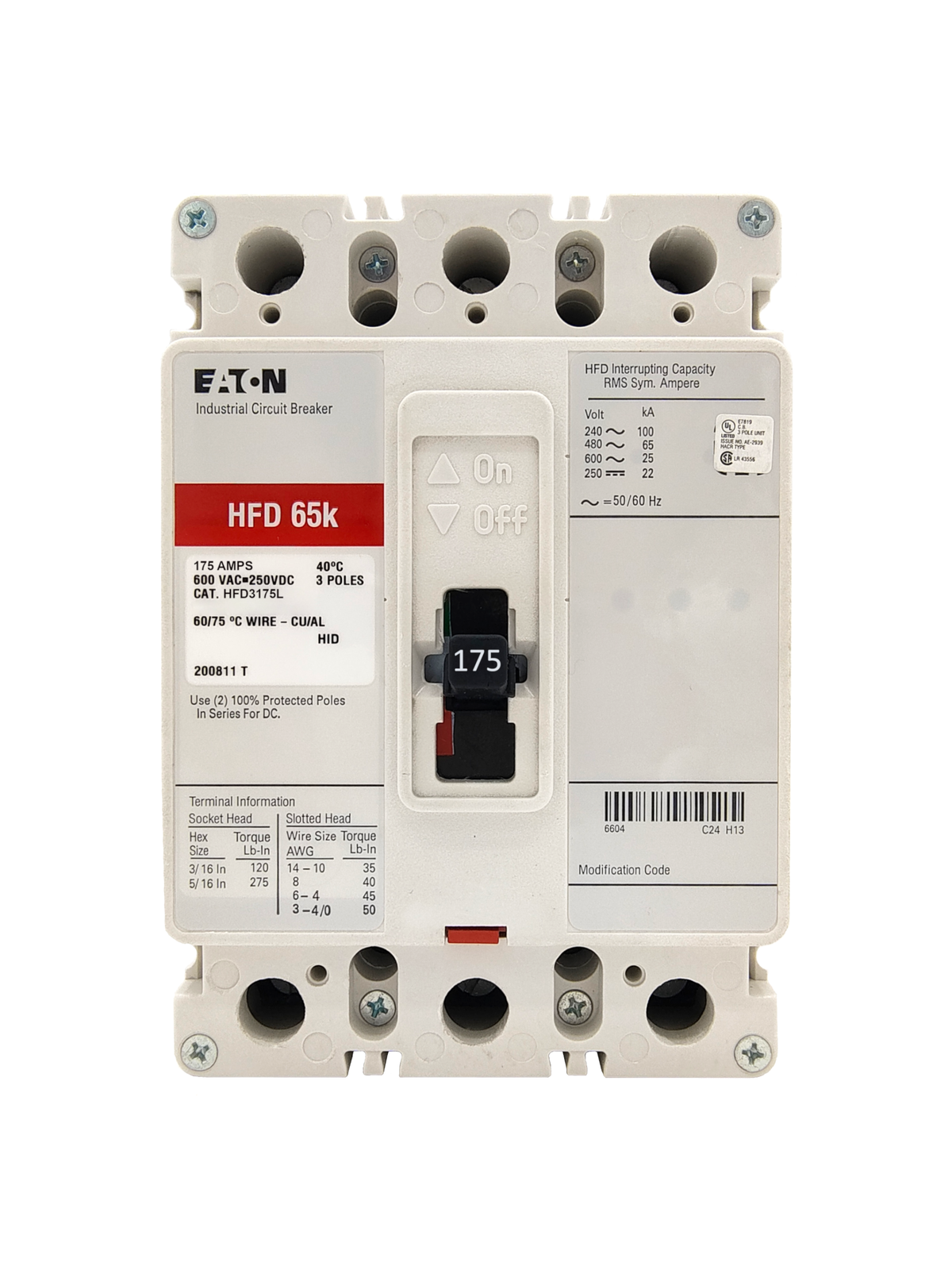

The Eaton HFD3175L is a 175-amp, 3-pole molded-case circuit breaker from the Cutler-Hammer Series C F-frame line, built on the high-interrupting HFD frame for feeder and branch-circuit protection in commercial and industrial power distribution. It uses a fixed thermal-magnetic trip unit rated at 175 A continuous at 40 °C, with a maximum rating of 600 Vac (50/60 Hz) and 250 Vdc. UL interrupting capacity is 100 kA at 240 Vac, 65 kA at 480 Vac, and 25 kA at 600 Vac (22 kA at 250 Vdc). The breaker installs in Eaton Series C panelboards, switchboards, and motor control centers, or mounts individually as a feeder device.

The "L" catalog suffix denotes a complete breaker furnished with both line- and load-end terminals as standard, configured for cable-in/cable-out connection. The trip is factory-fixed and non-interchangeable, so no separate rating plug or accessory trip unit is required.

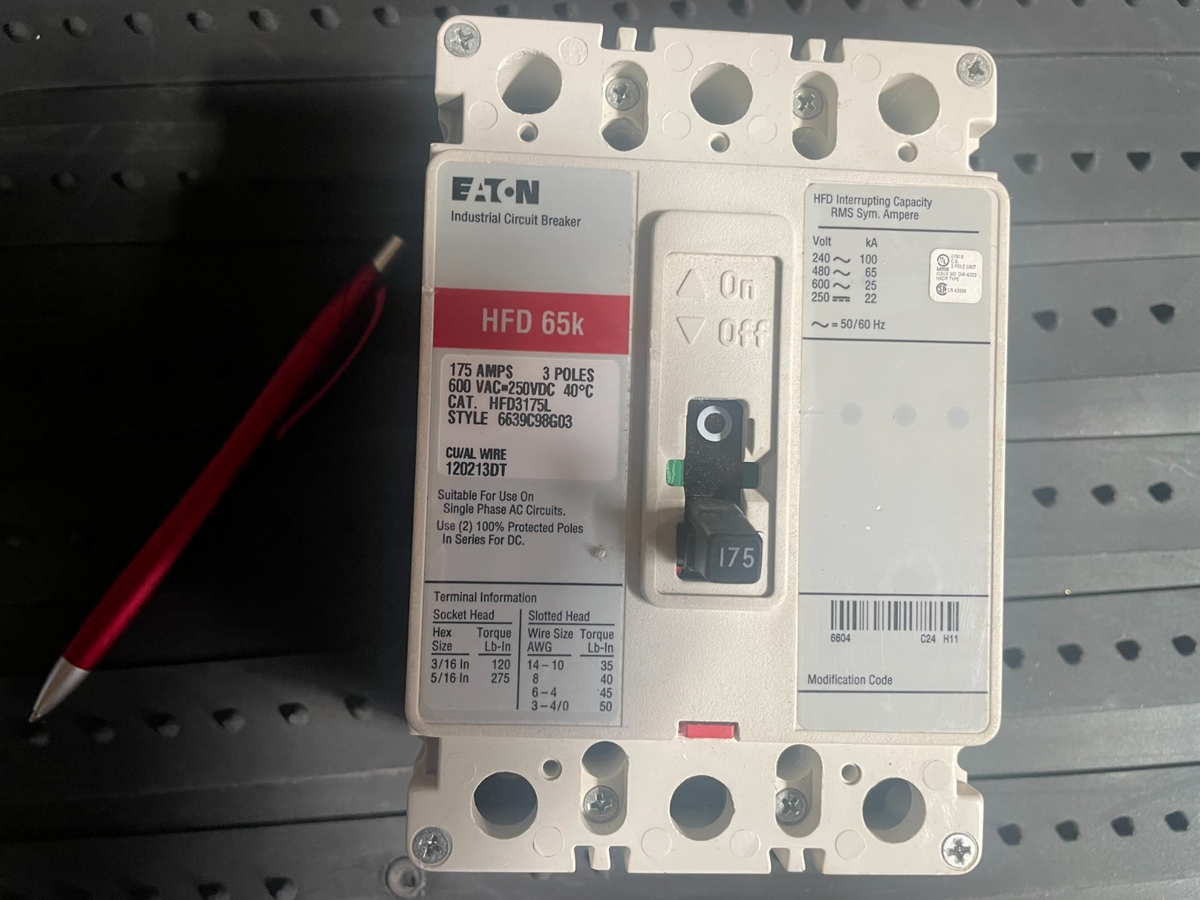

This unit is new but not in its original box, as listed. The photographs are of the actual item you'll receive, backed by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
