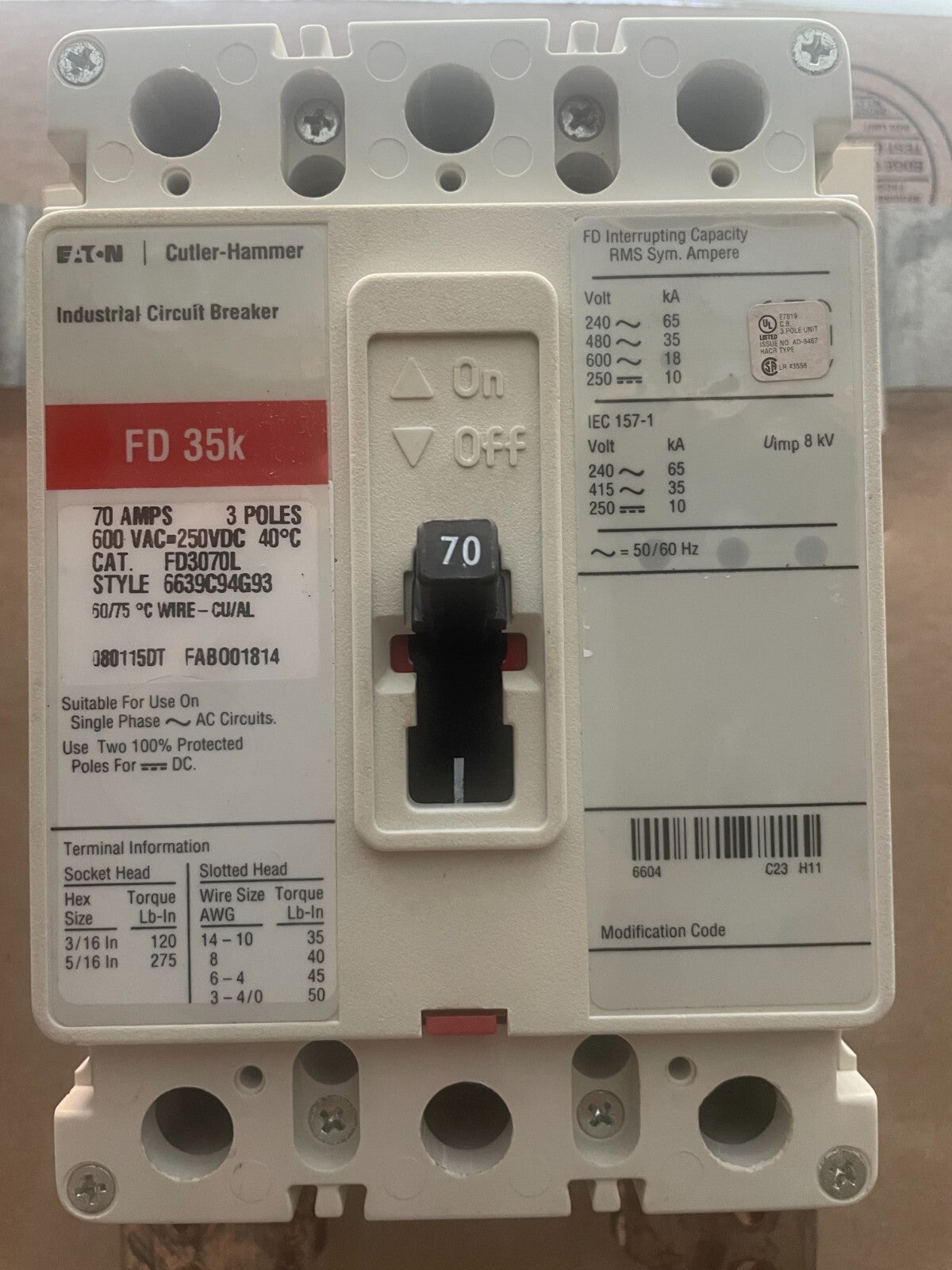

Eaton FD3070L 70A 3-Pole 600V Circuit Breaker

The Eaton FD3070L is a Series C, F-frame molded case circuit breaker rated 70A across 3 poles, with a voltage rating of 600 Vac / 250 Vdc at 50/60 Hz. It uses a fixed thermal-magnetic trip unit with long-time and instantaneous protection, and carries an interrupt rating of 65 kAIC at 240 Vac or 35 kAIC at 480 Vac. Breakers in this family are used for branch-circuit protection in panelboards, switchboards, motor control centers, and busway plug-in applications across industrial and commercial power distribution systems.

The "L" suffix on the catalog number denotes line-and-load terminal lugs – standard F-frame breakers ship with load-side lugs only, and the L variant adds line-side lugs for feed-thru, unit-mount installations rather than a bus connection. This listing is for one FD3070L breaker (Qty: 1).

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
