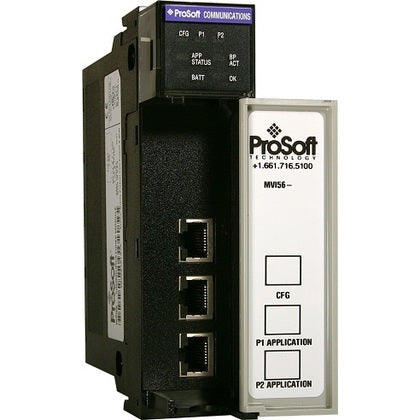

ProSoft Technology MVI56-ADM ControlLogix Application Development Module

P/N: MVI56-ADMUSED · TESTED

$450.00

In stock — 2 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Module type 'C' programmable application development module

Form factor Single-slot 1756 ControlLogix backplane module, local or remote rack

Serial ports CFG (RS-232 debug/config) plus application ports PRT1 and PRT2 (RS-232/RS-422/RS-485)

Port isolation 500 V optical isolation from backplane on application ports

Baud rates 110 to 115,200 baud, software configurable

Development environment General Software DOS 6-XL; Digital Mars C++ 8.49 (included) or Borland C++ 5.02

APIs Serial port, backplane and ADM (debug, database, timer, LED, flash) libraries

Backplane current 800 mA @ 5 V

Item specifics

Brand ProSoft Technology

Model MVI56-ADM

MPN MVI56-ADM

Controller Platform ControlLogix

Country of Origin United States

The ProSoft Technology MVI56-ADM is a C-programmable application development module for the Rockwell Automation ControlLogix platform. It runs user-written C applications in-chassis on a General Software DOS 6-XL environment, with ProSoft’s serial-port, backplane and ADM APIs and a bundled Digital Mars C++ compiler (Borland C++ 5.02 is also supported). Integrators use it to put custom logic right on the 1756 backplane — barcode scanner interfaces, legacy ASCII protocol connections, terminal emulation, alarm printer drivers and proprietary protocol implementations.

This listing is for the single-slot MVI56-ADM module (MPN MVI56-ADM). It carries three serial ports: an RS-232 CFG port for debug and configuration, plus two isolated application ports (PRT1 and PRT2) that are software-configurable for RS-232, RS-422 or RS-485 at up to 115,200 baud, with full hardware handshaking for radio, modem and multi-drop links. ProSoft has issued a lifecycle letter for this part, so a tested unit is a direct way to keep a deployed custom application in service.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
