ProSoft PLX31-EIP-MBS4 Industrial Ethernet Switch - New

Name: ProSoft PLX31-EIP-MBS4 Industrial Ethernet Switch - New
Brand: ProSoft
SKU: PLX31EIPMBS4
Price: 1999.99 USD
Availability: InStock

P/N: PLX31EIPMBS4NEW · SEALED

$1,999.99

In stock — 3 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform ProSoft PLX31-series stand-alone DIN-rail gateway

Function Bi-directional data transfer between EtherNet/IP and Modbus serial devices

Serial ports 4x RS-232/RS-422/RS-485, supporting up to 400 Modbus serial devices

Modbus modes Master or Slave per port; up to 100 commands per Master port; floating-point data supported

EtherNet/IP 8 Class 1 I/O connections; Class 3 explicit messaging (client and server)

Ethernet port 10/100 Base-T RJ45

Power 24 VDC nominal (10 to 36 VDC allowed)

Configuration Optional SD card slot for configuration backup

Item specifics

Brand ProSoft

Type Communications Module

Communication Standard Ethernet

Model PLX31-EIP-MBS4

MPN PLX31EIPMBS4

Controller Platform ControlLogix

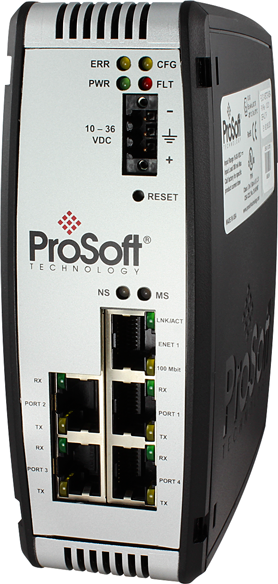

The ProSoft PLX31-EIP-MBS4 is a stand-alone DIN-rail gateway, a protocol converter rather than an Ethernet switch, that transfers data in both directions between an EtherNet/IP network and Modbus serial field devices. Each of its four serial ports supports RS-232, RS-422 or RS-485 and runs as a Modbus Master or Slave, so one gateway can consolidate up to 400 Modbus devices behind a single Ethernet drop, with up to 100 configurable commands per Master port and floating-point data movement supported.

On the EtherNet/IP side the gateway provides eight Class 1 I/O connections plus Class 3 explicit messaging in client and server roles, and an optional SD card slot stores the configuration file for quick disaster recovery. This listing is for a new, factory-sealed unit.

Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
