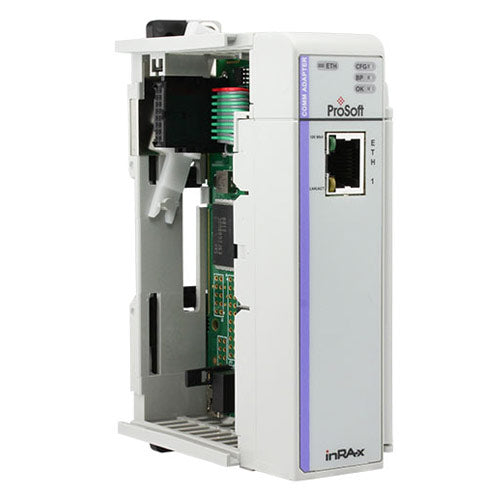

ProSoft MVI69E-MBTCP Modbus TCP/IP Enhanced Serial Communication Module

Name: ProSoft MVI69E-MBTCP Modbus TCP/IP Enhanced Serial Communication Module
Brand: ProSoft
SKU: MVI69EMBTCP
Price: 1490.0 USD
Availability: InStock

P/N: MVI69EMBTCPUSED · TESTED

$1,490.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform In-chassis module for CompactLogix with 1769 I/O bus, firmware v16 and greater (MicroLogix 1500 not supported)

Function Modbus TCP/IP Client and Server communication on a single Ethernet port

Ethernet port 10/100 Mbps auto-negotiating, carries application and diagnostic data

Connections Up to 20 Client connections; 10 MBAP + 10 encapsulated Server connections

Data capacity Up to 10,000 words

Integration Add-On Profile and Add-On Instruction with UDTs; diagnostics in controller tags; configuration stored with the project

Current load 500 mA max @ 5 VDC

Form factor Standard 1769 single-slot module

Item specifics

Country of Origin China

Brand ProSoft

Model MVI69E-MBTCP

MPN MVI69EMBTCP

Controller Platform CompactLogix

eBay Product ID (ePID) 8034034683

The ProSoft MVI69E-MBTCP puts Modbus TCP/IP client and server communication directly in the CompactLogix chassis. The enhanced module occupies one 1769 slot and connects through an auto-negotiating 10/100 Ethernet port, handling up to 20 client connections alongside 10 MBAP and 10 encapsulated server connections, with a 10,000-word database for mapping Modbus data into controller tags. It suits SCADA links and field-device integration where the processor needs to poll or serve Modbus TCP equipment without an external gateway. A CompactLogix processor with 1769 I/O bus capability, firmware version 16 or greater, is required; MicroLogix 1500 is not supported.

ProSoft supplies an Add-On Profile and an Add-On Instruction that builds the user-defined data types for you, diagnostics surface in controller tags, and the module configuration is stored with the CompactLogix project, which keeps spares interchangeable. This listing is for a used MVI69E-MBTCP module.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
