ProSoft MVI69-MNET MVI69 Modbus TCP/IP Network Interface Module

Name: ProSoft MVI69-MNET MVI69 Modbus TCP/IP Network Interface Module
Brand: ProSoft Technology
SKU: MVI69-MNET
Price: 699.0 USD
Availability: InStock

P/N: MVI69-MNETUSED · TESTED

$699.00

In stock — 8 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Module type Modbus TCP/IP client/server communication module (inRAx series)

Form factor Single-slot 1769 backplane module

Controller support All CompactLogix and MicroLogix 1500 LRP controllers except 1769-QBFC1B, 1769-L16x and 1769-L18x

Client driver One client supporting up to 100 commands to one or more servers

Server driver Up to 5 MBAP connections (port 502) plus 5 encapsulated Modbus RTU/ASCII connections

Internal database 5,000 16-bit registers

Ethernet port 10/100Base-T application interface

Backplane current 800 mA max @ 5 VDC

Item specifics

Country of Origin United States

Brand ProSoft Technology

Model ProSoft MVI69-MNET MVI69

MPN MVI69-MNET

Controller Platform CompactLogix

The ProSoft Technology MVI69-MNET is an in-chassis Modbus TCP/IP communication module for Rockwell Automation CompactLogix and MicroLogix 1500 LRP controllers. Occupying a single 1769 backplane slot, it lets the processor exchange data directly with Modbus TCP/IP devices — Modicon processors, HMI and SCADA software, and the broad range of field equipment that speaks the protocol — without an external gateway. A 5,000-register internal database moves data between the backplane and the network over a 10/100Base-T Ethernet port, with the client driver supporting up to 100 commands and the server side accepting up to five MBAP connections plus five encapsulated Modbus RTU/ASCII connections.

This listing is for the MVI69-MNET module itself (MPN MVI69-MNET). The part now sits in ProSoft’s legacy lineup, which makes a tested working unit a practical way to keep an existing CompactLogix Modbus TCP/IP installation running without re-engineering the application; configuration is by text file and sample ladder logic is published for the platform, so swapping a module in stays straightforward.

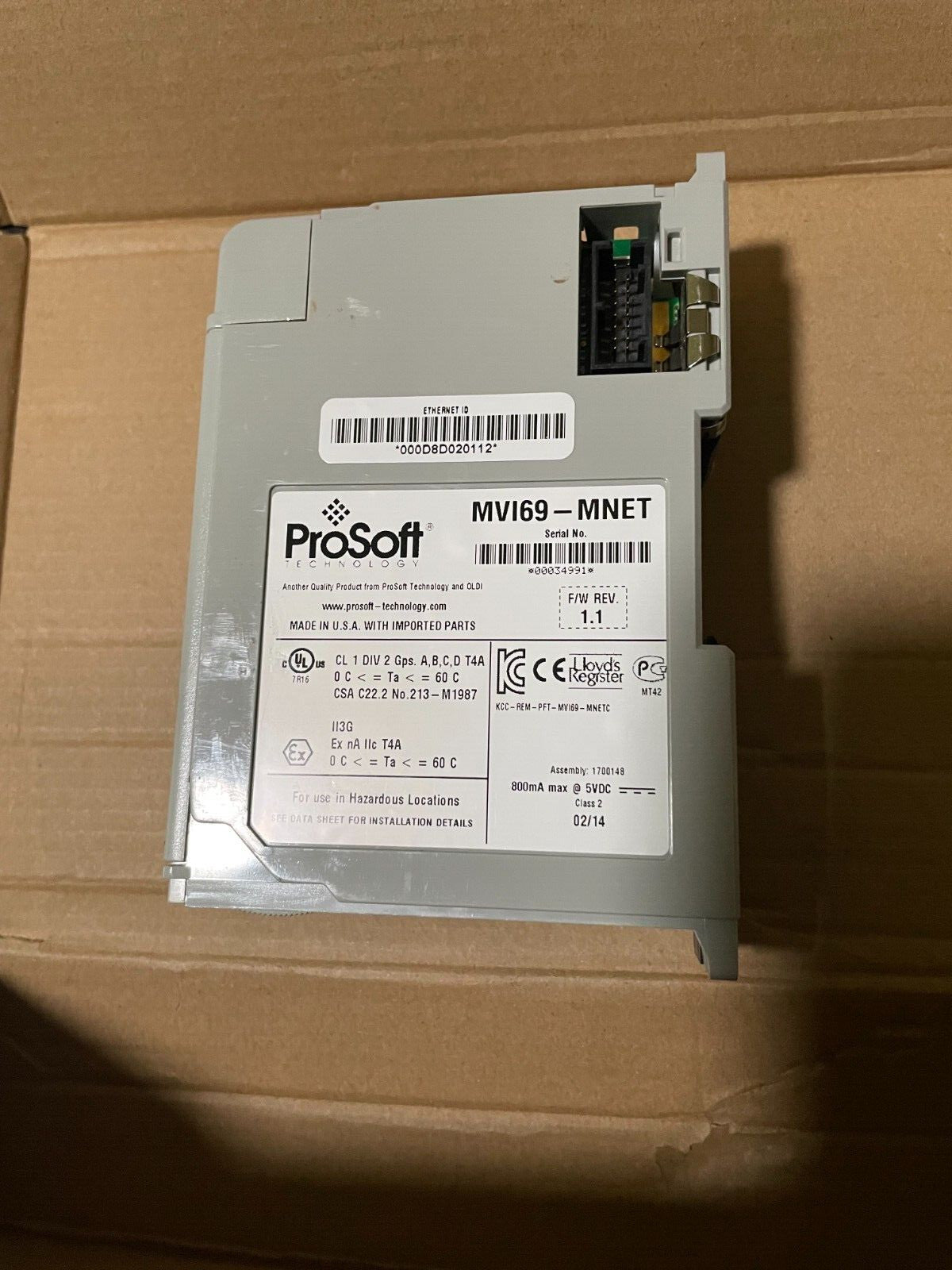

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
