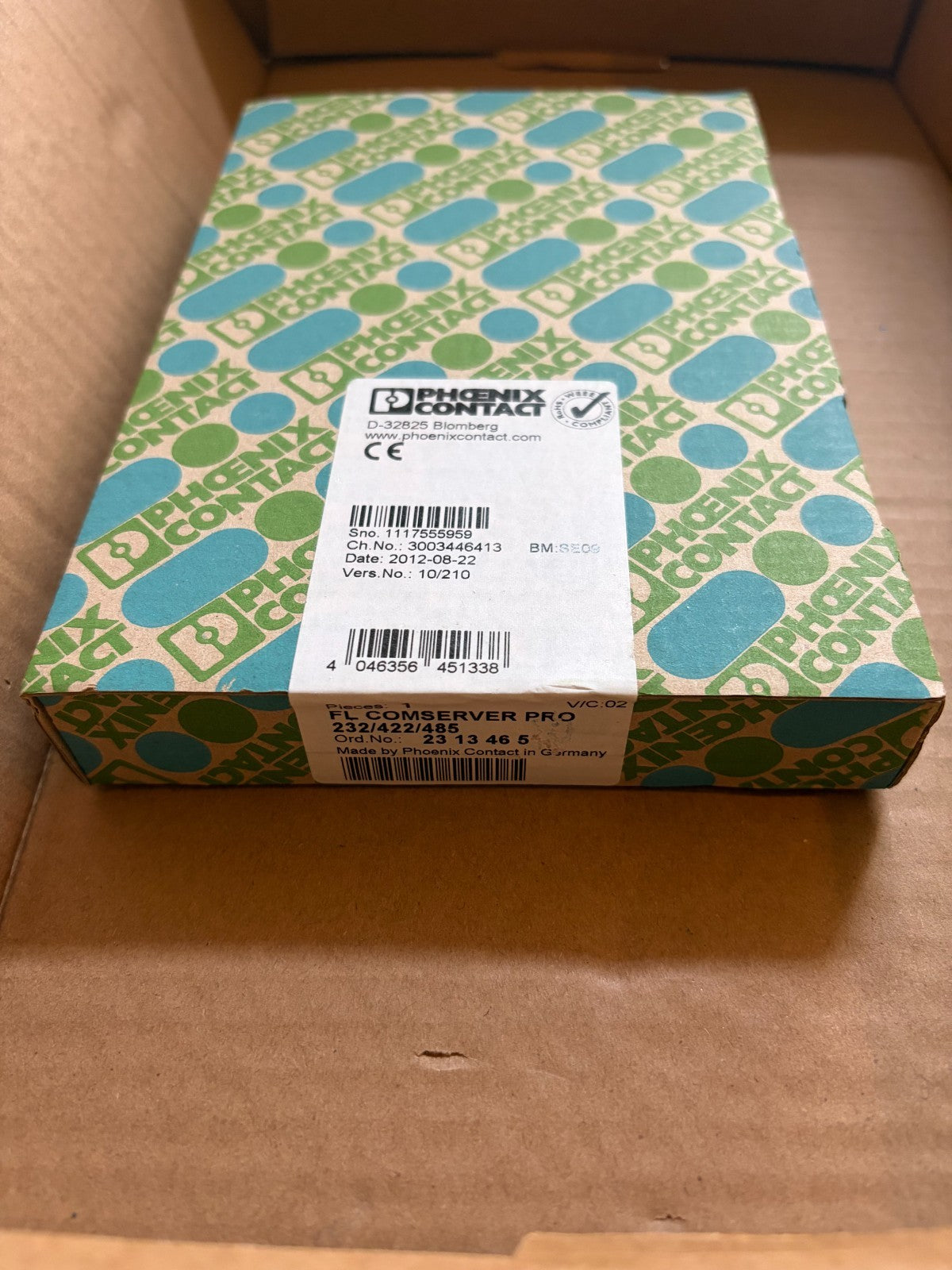

Phoenix Contact FL COMSERVER PRO 232/422/485 Serial Device Server

P/N: 2313465USED · TESTED

$950.00

In stock — 3 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Serial Interfaces RS-232, RS-422, RS-485 (switchable)

Network Interface 10/100Base-T(X) Ethernet, RJ45

Serial Baud Rate 0.3 kbps to 1000 kbps

Programming User-programmable via BASIC language

Power Supply 19.2-28.8 V AC/DC

Operating Temperature -25C to 60C

Protection Rating IP20

Dimensions (W x H x D) 22.5 x 99 x 116 mm

The Phoenix Contact FL COMSERVER PRO 232/422/485 is a second-generation serial device server that bridges a V.24 (RS-232), RS-422, or RS-485 serial interface onto a 10/100Base-T(X) Ethernet network in accordance with IEEE 802.3. Serial transmission speeds run from 0.3 kbps up to 230.4 kbps on the RS-232 port and up to 1000 kbps on RS-422/RS-485, with connections made via a D-SUB 9 plug (RS-232) or a pluggable COMBICON screw terminal block (RS-422/RS-485) and a single shielded RJ45 socket on the Ethernet side. The unit runs from a 19.2–28.8 V AC/DC supply, carries an IP20 rating for an ambient operating range of –25°C to 60°C, and mounts on a standard DIN rail in a 22.5 × 99 × 116 mm housing. Typical applications include serial cable replacement over a LAN/WAN, remote access to legacy serial instruments or PLCs, and Modbus RTU/ASCII-to-Modbus/TCP gateway duty when integrating older serial equipment into an Ethernet-based control network.

The PRO designation marks the top tier of the FL COMSERVER 232/422/485 family: where the UNI and BASIC hardware variants run fixed factory firmware for protocol conversion, the PRO unit is freely programmable in Phoenix Contact's proprietary BASIC programming language, letting the user write custom logic for non-standard protocol handling or application-specific serial-to-Ethernet behavior. The 232/422/485 suffix confirms the housing supports all three serial standards, with the active mode selected through the device's built-in web-based management interface. This listing is for the FL COMSERVER PRO unit itself; any software media, manuals, or cabling shown in photos are for reference only unless stated as included.

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
