Omni Flow Computers 6000 Back Panel

P/N: OMNI6000-BPUSED · TESTED

$1,750.00

In stock — 5 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Compatible Platform Omni Flow Computers OMNI 6000 Flow Computer

Component Type Rear field-wiring back panel (screw terminals)

AC Supply Input 90–264 Vac, 47–440 Hz

DC Supply Input 22–26 Vdc

I/O Capacity Up to 6 combo I/O modules (24 analog/pulse inputs)

Digital I/O 2 × 12-channel modules (24 points)

Communications Up to 3 modules — RS-232/485 or Ethernet

Mounting Panel-mount direct, or extended via 5/10/15 ft ribbon cable

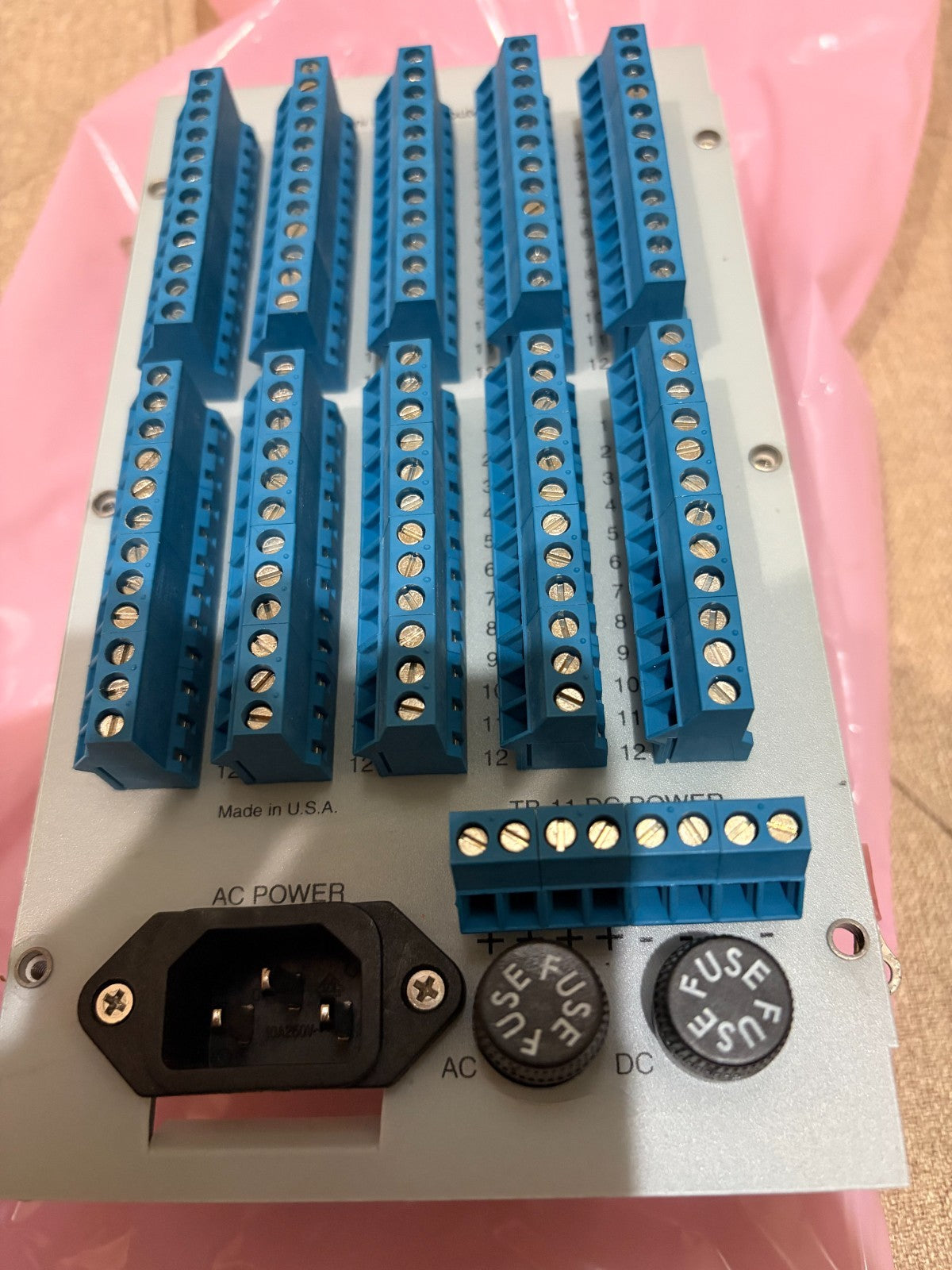

This is the rear field-wiring back panel for an Omni Flow Computers OMNI 6000 flow computer, the screw-terminal termination assembly that carries process I/O signal and power connections through to the OMNI 6000 mainframe's I/O module slots. The OMNI 6000 platform it serves accepts up to six field I/O (Combo) modules for as many as 24 analog & pulse inputs, two 12-channel digital I/O modules (24 points total), and up to three communications modules (RS-232/485 or Ethernet), and is powered from 90–264 Vac (47–440 Hz) or 22–26 Vdc supply. Systems built on this platform are used for custody-transfer and fiscal gas and liquid flow measurement, running API, AGA, and ISO flow calculations on meter runs across oil & gas production, pipeline, and terminal metering applications.

The 6000 designation identifies the larger-capacity chassis in Omni's 3000/6000 flow computer family, sized for up to four meter-run applications, as distinct from the 2-module OMNI 3000 used for single or dual meter-run duty. This back panel is the field-termination interface for that chassis, supplied either mounted directly behind the OMNI 6000 in its panel-mount configuration or as a remote extended back panel connected to the mainframe by ribbon cable (available in 5, 10, and 15 ft lengths). This listing is for the back panel only.

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
