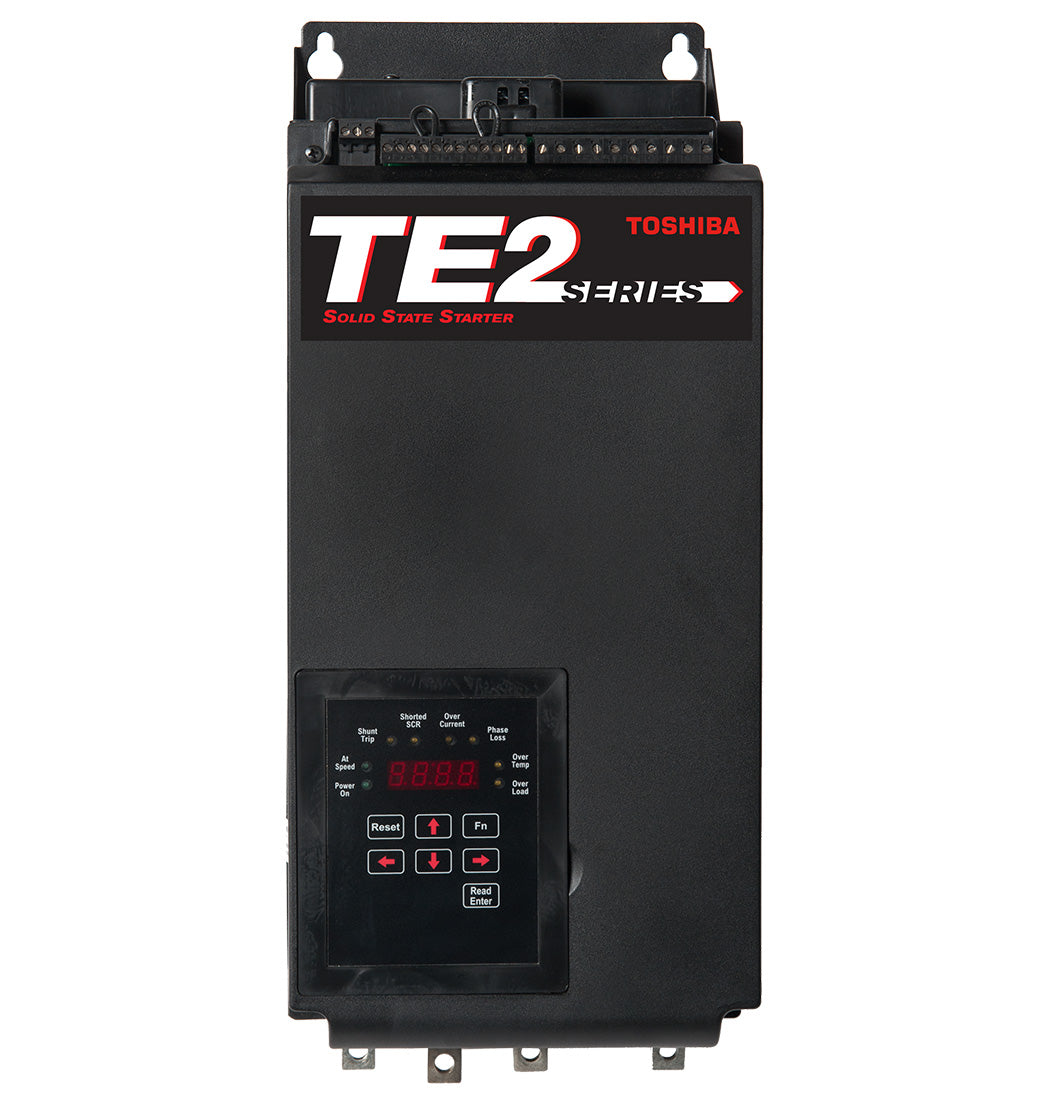

NEW Toshiba TE2-112-BP Series Solid State Starter

P/N: TE2-112-BPNEW · SEALED

$3,559.00

In stock — 2 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Toshiba TE2 Series low voltage solid state (soft) starter

Design Six-SCR reduced-voltage starter with voltage/current ramp and anti-oscillation circuit

Application range 30-100 HP motors, 208-575 V AC (frame rating)

Bypass Integral bypass contactor (-BP); overload protection maintained while the starter controls it

Protection Solid-state electronic motor overload with diagnostic LEDs

Control power 120 V AC (220 V AC optional); dry-contact start/stop inputs

Deceleration Pump-Flex deceleration control for gentle pump/check-valve shutdown

Form factor Open chassis, digitally programmable via keypad

Item specifics

Model TE2-112-BP

Product Condition NEW

Output Power 75 HP

Output Voltage 460 V-AC

Output Current 56 to 112

Voltage Type AC

Model Number TE2-112-BP

Product Brand TOSHIBA

MPN TE2-112-BP

Brand TOSHIBA

Country of Origin Japan

The Toshiba TE2 Series is a digitally programmable, reduced-voltage solid state starter that brings three-phase induction motors up to speed without the inrush current and driveline shock of across-the-line starting. Its six-SCR power section runs a voltage/current ramp with an anti-oscillation circuit for smooth acceleration, and Pump-Flex deceleration control eases pumps to a stop so check valves close gently.

The TE2-112-BP is the 56-112 A bypass frame, applied on motors from roughly 30 to 100 HP across 208-575 V AC — this unit is listed for 75 HP at 460 V. The -BP designation means an integral bypass contactor is fitted, and because the starter itself controls that contactor, its solid-state electronic overload keeps protecting the motor with no separate overload relay required. Control is via 120 V AC control power and dry-contact start/stop inputs, with a programming keypad and diagnostic LEDs on the open-chassis unit.

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
