NEW SIEMENS SITRANS PRESSURE TRANSMITTER 7MF4033-1BA10-1NC6-Z .15-14.5PSI -QTY

P/N: 7MF4033-1BA10-1NC6-ZNEW · SEALED

$699.25

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform SITRANS P DS III digital pressure transmitter (7MF4033, HART)

Measured variable Gauge pressure

Measuring span 0.01-1 bar g (0.15-14.5 psi g)

Overload limit 6 bar

Output 4-20 mA, load-independent, with HART communication

Measuring cell Stainless steel diaphragm, silicone oil fill

Process connection 1/2-14 NPT female thread

Housing Die-cast aluminium, M20 x 1.5 cable gland

Item specifics

Country of Origin United States

Model 7MF4033-1BA10-1NC6-Z

MPN 7MF4033-1BA10-1NC6-Z

Brand Siemens

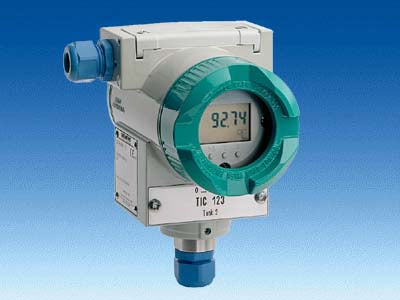

The Siemens SITRANS P DS III is a microcontroller-based digital pressure transmitter family used throughout process industries to measure gauge, absolute and differential pressure as well as liquid level. The 7MF4033 version covered here is the gauge-pressure model, reporting over a 4-20 mA loop with HART communication.

This listing is for a new, factory-sealed 7MF4033-1BA10-1NC6-Z. The 1BA10 measuring cell spans 0.01-1 bar g (0.15-14.5 psi g, matching the title) with a 6 bar overload limit, and the build pairs a stainless steel diaphragm and silicone-oil-filled cell with a die-cast aluminium housing, a 1/2-14 NPT female process connection and an M20 x 1.5 cable gland. The -Z suffix denotes factory option codes ordered with the unit.

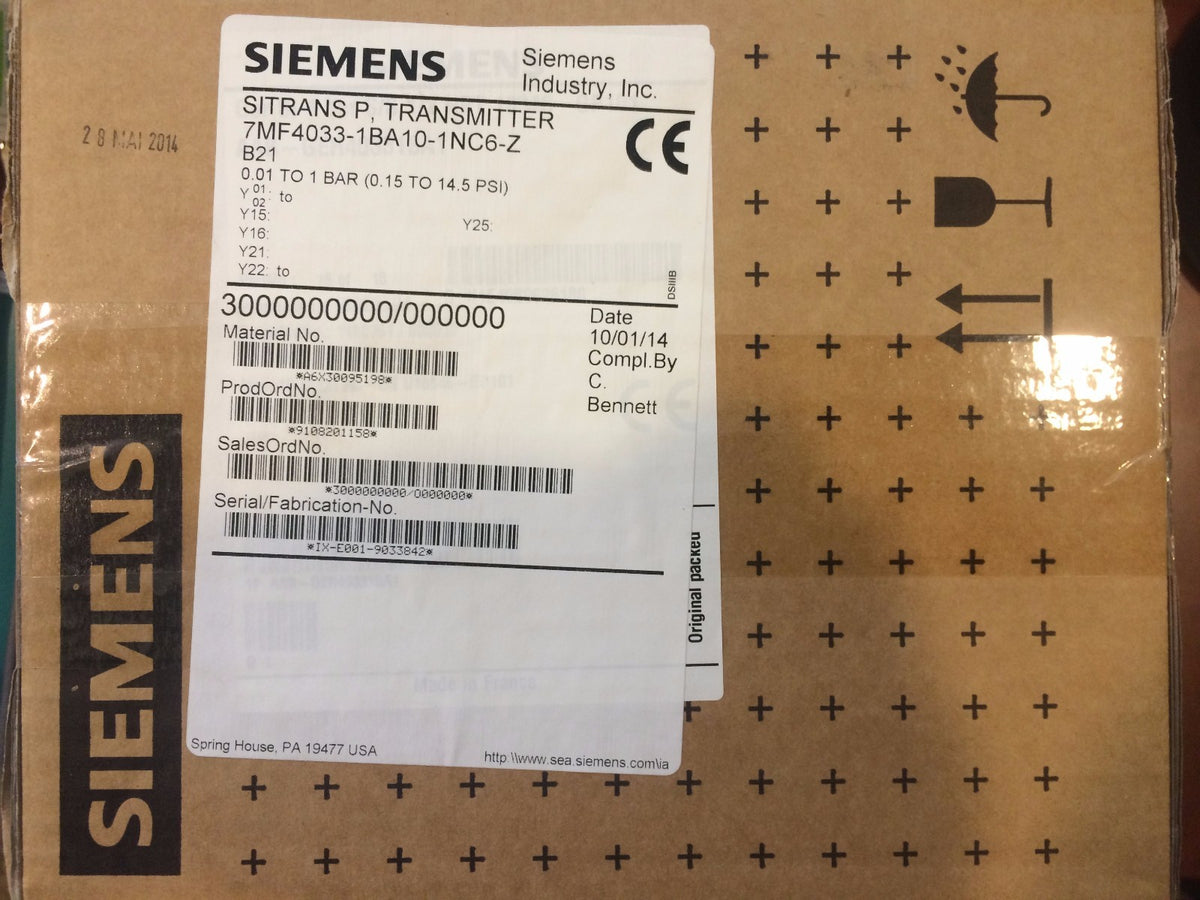

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
