NEW PHOENIX CONTACT RAD-900-IFS

P/N: RAD-900-IFSNEW · SEALED

$799.99

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Radioline RAD-900-IFS wireless transceiver, Trusted Wireless 2.0 (Order No. 2901540)

Frequency range 902-928 MHz, license-free 900 MHz band (North America; FCC Part 15.247)

Wireless data rate Adjustable 16 / 125 / 250 / 500 kbps; transmission power up to 1 W

Range Up to approx. 32 km line of sight (environment and antenna dependent)

Topologies Point-to-point, star, and mesh networks up to 250 stations

Security 128-bit AES data encryption with frequency hopping

Serial and I/O RS-232 (D-SUB 9/COMBICON) and RS-485 2-wire; extendable with Radioline I/O modules

Power and environment 10.8-30.5 V DC supply; -40 °C to +70 °C; NS 35 DIN rail; IP20

Item specifics

Brand Phoenix Contact

MPN RAD-900-IFS

The Phoenix Contact RAD-900-IFS (Order No. 2901540) is a Radioline wireless transceiver for the license-free 900 MHz band (902-928 MHz) in North America, built on Trusted Wireless 2.0 with 128-bit AES encryption, frequency hopping, and coexistence management. It carries serial data or I/O signals over distances of up to roughly 32 km line of sight, in point-to-point, star, or mesh networks of up to 250 stations, and I/O assignment is set with a simple thumbwheel — no programming required. Integrated RS-232 and RS-485 ports serve serial devices directly, stations can be extended with Radioline I/O modules over the DIN rail bus connector, and a PLC/Modbus RTU dual mode is available via the PSI-CONF software.

This listing is for one RAD-900-IFS wireless module in new, factory-sealed condition. The module provides an RSMA (female) antenna connection and mounts on standard NS 35 DIN rail, with transmission power adjustable up to 1 W and data rates selectable from 16 to 500 kbps to trade speed for range.

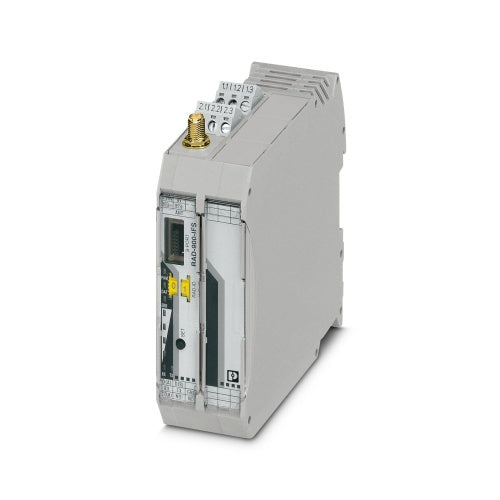

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
