New Moxa DR-120-24 DIN-Rail Power Supply 120W 24VDC

Name: New Moxa DR-120-24 DIN-Rail Power Supply 120W 24VDC
Brand: Moxa
SKU: DR-120-24
Price: 79.0 USD
Availability: InStock

P/N: DR-120-24NEW · SEALED

$79.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Moxa DR-120-24 DIN-rail power supply (DR series)

Output rating 24 VDC, 0 to 5 A, 120 W; adjustable 24 to 28 VDC

Input range 88 to 132 / 176 to 264 VAC (switch-selectable), or 248 to 370 VDC

Typical efficiency 84%

Protection Constant-current overload limiting with auto recovery; overvoltage shutdown at 29 to 33 V

Ripple and noise 80 mVp-p

Quality assurance 100% full-load burn-in; UL/CUL listed, TÜV/CB certified, CE marked

Dimensions / weight 65.5 x 100 x 125.2 mm (2.56 x 3.94 x 4.93 in), 650 g (1.43 lb)

Item specifics

Mounting Style DIN Rail Mount

Nominal Voltage Rating (DC) 24 V

Brand Moxa

Nominal Voltage Rating (AC) 120 V

Maximum Operating Temperature 60 °C (140 °F)

MPN DR-120-24

Minimum Operating Temperature -10 °C (14 °F)

Country of Origin Taiwan

The Moxa DR-120-24 is a 120 W DIN-rail power supply from Moxa’s DR series, designed to feed 24 VDC control gear in industrial panels — Ethernet switches, protocol gateways, controllers, and I/O. It supplies 0 to 5 A at 24 VDC (adjustable up to 28 VDC) with 84% typical efficiency and low 80 mVp-p ripple, and it protects the load with constant-current overload limiting that recovers on its own plus overvoltage shutdown at 29 to 33 V.

Input is switch-selectable between 88 to 132 VAC and 176 to 264 VAC, and 248 to 370 VDC input is also accepted. Every DR-series supply passes Moxa’s 100% full-load burn-in test, and the line is UL/CUL listed, TÜV/CB certified, and CE marked. This listing is for a new, factory-sealed DR-120-24 (made in Taiwan), rated for -10 to 60°C operation.

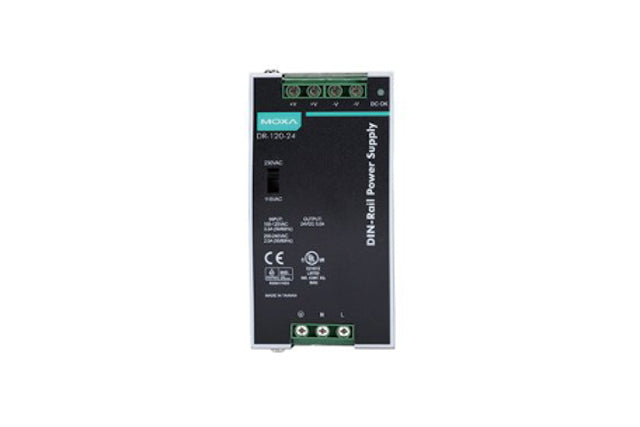

Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
