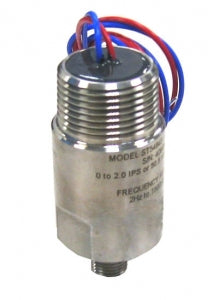

NEW METRIX VIBRATION ST5484E-132-1312-00 / ST5484E132131200

P/N: ST5484E-132-1312-00NEW · SEALED · Open box

$550.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Metrix ST5484E seismic velocity 4-20 mA transmitter

Full-scale range 3.0 in/sec (76.2 mm/s) peak (scaled RMS detection)

Output 4-20 mA proportional to velocity (4 mA = zero vibration, 20 mA = full scale)

Frequency response 2 Hz - 1,500 Hz passband, +/-3 dB (standard filters)

Supply voltage 11-30 VDC (24 VDC nominal), loop-powered

Housing / mounting 316 stainless steel housing, 1/2-20 UNF x 1/2 in mounting stud

Connection 2-wire terminal block (4-20 mA output only)

Hazardous area approval NRTL Class I, Div 2, Groups A-D (non-incendive)

Item specifics

Brand METRIX VIBRATION

MPN ST5484E-132-1312-00

Country of Origin United States

Metrix's ST5484E seismic velocity transmitter condenses a complete vibration-monitoring channel into a single sensor body: a piezoelectric accelerometer, integrator, RMS detector, and 4-20 mA conditioner working together to output a signal proportional to casing vibration velocity. Threaded straight onto a bearing housing or machine case, it feeds standard process instrumentation such as PLCs, DCSs, and SCADA systems for trending and alarming, and suits rotating and reciprocating machinery with rolling-element bearings running 120 to 6,000 rpm.

This unit is part number ST5484E-132-1312-00: a 3.0 in/sec (76.2 mm/s) peak full-scale range in the optional 316 stainless steel housing, mounted on a 1/2-20 UNF stud, certified NRTL Class I, Division 2, Groups A-D (non-incendive), with a 2-wire terminal block connection for the 4-20 mA loop. The measurement band uses the standard 2 Hz high-pass and 1,500 Hz low-pass filters, and power is 11-30 VDC drawn from the current loop itself, with polarity-independent wiring courtesy of Metrix IPT technology.

Condition: New · Open Box, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
