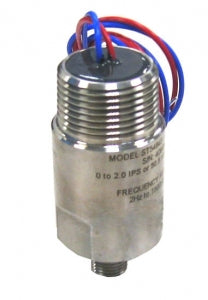

NEW METRIX VIBRATION ST5484E-121-0212-00 / ST5484E121021200

P/N: ST5484E-121-0212-00NEW · SEALED · Open box

$550.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Metrix ST5484E seismic velocity 4-20 mA transmitter

Full-scale range 1.0 in/sec (25.4 mm/s) peak (scaled RMS detection)

Output 4-20 mA proportional to velocity (4 mA = zero vibration, 20 mA = full scale)

Frequency response 2 Hz - 1,500 Hz passband, +/-3 dB (standard filters)

Supply voltage 11-30 VDC (24 VDC nominal), loop-powered

Housing / mounting 303 stainless steel housing, 3/8-24 UNF x 1/2 in mounting stud

Connection 2-wire terminal block (4-20 mA output only)

Hazardous area approval NRTL Class I, Div 2, Groups A-D (non-incendive)

Item specifics

Brand METRIX VIBRATION

MPN ST5484E-121-0212-00

Country of Origin United States

The Metrix ST5484E is a loop-powered seismic vibration transmitter that builds a piezoelectric accelerometer, signal integrator, RMS detector, and 4-20 mA signal conditioner into one compact stainless-steel sensor. Mounted directly on a machine case or bearing housing, it converts casing vibration into a velocity-proportional 4-20 mA signal that PLCs, DCSs, and SCADA systems can trend and alarm on, letting plants monitor rotating machinery with rolling-element bearings (120 to 6,000 rpm) without a separate monitor rack or external signal conditioning.

This listing is for part number ST5484E-121-0212-00, which configures the transmitter with a 1.0 in/sec (25.4 mm/s) peak full-scale range, a 303 stainless steel housing on a 3/8-24 UNF mounting stud, NRTL Class I, Division 2, Groups A-D (non-incendive) hazardous-area certification, and a 2-wire terminal block carrying the 4-20 mA output. Filtering is the factory-standard 2 Hz high-pass / 1,500 Hz low-pass band, and the unit runs on 11-30 VDC loop power with Metrix's IPT polarity-independent input, so the two field wires can be landed either way.

Condition: New · Open Box, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
