EMERSON DeltaV Charm I/O KL3022X1-BA1 AO 4-20mA HART 12P4629X092 Rev M

P/N: KL3022X1-BA1USED · TESTED

$225.00

In stock — 4 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Analog output, 4-20 mA HART (Emerson ordering model SE4304T01)

Signal range 4-20 mA nominal span; 0-24 mA full range

Resolution / accuracy 16-bit D/A; 0.25% of span (0-60 °C)

Field power 20 mA at 15 VDC supply into a 750 Ω load

HART support HART v7 pass-through for AMS device management

Operating temperature -40 to +70 °C

Assembly number 12P4629X092 Rev M (as listed)

Item specifics

Brand Emerson Delta V

Model KL3022X1

MPN KL3022X1-BA1

Controller Platform DELTA V

The Emerson KL3022X1-BA1 analog output CHARM drives one 4-20 mA HART final control element from a DeltaV Electronic Marshalling node. Each CHARM characterizes its own channel and clips into a terminal block on a CHARM baseplate, with HART v7 passed through to AMS device management.

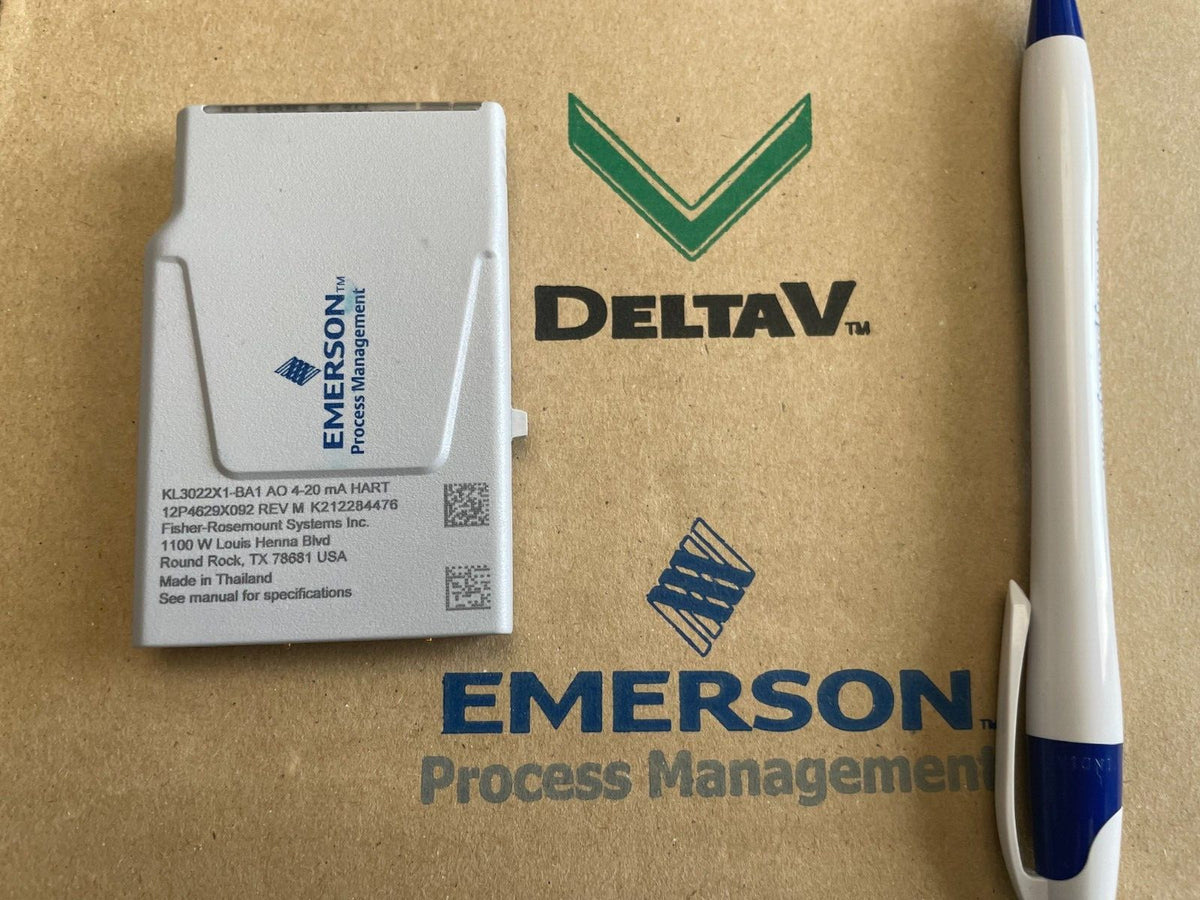

This listing is for one AO 4-20 mA HART CHARM, Emerson assembly 12P4629X092 Rev M as shown in the title. The unit is used, tested through the 12-point Orbitz Certified process.

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
