NEW EMERSON DELTAV KL30021X1-BA1 D 24 VDC High-Side 12P4627X062 REV H Qty stock

Name: NEW EMERSON DELTAV KL30021X1-BA1 D 24 VDC High-Side 12P4627X062 REV H Qty stock
Brand: Emerson
SKU: KL30021X1-BA1
Price: 249.0 USD
Availability: InStock

P/N: KL30021X1-BA1NEW · SEALED

$249.00

In stock — 24 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Discrete output, 24 VDC high-side (Emerson ordering model SE4302T01)

Output rating 100 mA continuous at 24 VDC

Off-state leakage 1 mA maximum

Line-fault detection Short <50 Ω; good 240 Ω to 10 kΩ; open >20 kΩ

Protection 200 mA current-limiting circuit; field wiring disconnect

Operating temperature -40 to +70 °C

Assembly number 12P4627X062 Rev H (as listed)

Item specifics

Type DELTAV

MPN KL30021X1-BA1

Brand Emerson

Country of Origin United States

This is Emerson's DO 24 VDC High-Side CHARM for DeltaV Electronic Marshalling: a single-channel discrete output that switches 24 VDC solenoid-class loads at up to 100 mA continuous, with line-fault detection and configurable discrete, momentary or pulse output behavior. It clips into a CHARM terminal block on a baseplate.

This listing is for one CHARM with Emerson assembly 12P4627X062 Rev H, as shown in the title. Note the title's part number is printed KL30021X1-BA1; Emerson's catalog number for the DO 24 VDC High-Side CHARM behind assembly 12P4627X062 is KL3002X1-BA1.

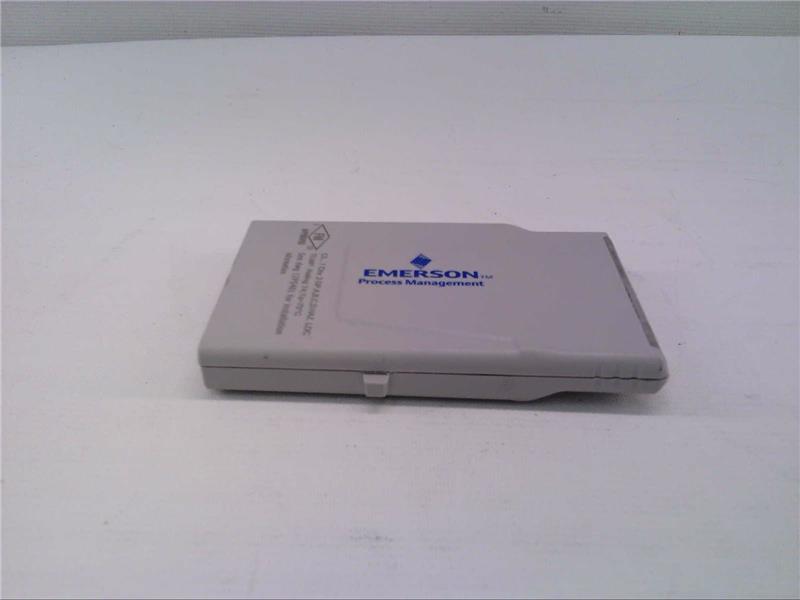

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
