NEW Emerson DeltaV 12P4629X092-233D KL3022X1-BA1 AO 4-20 mA HART Rev M

Name: NEW Emerson DeltaV 12P4629X092-233D KL3022X1-BA1 AO 4-20 mA HART Rev M
Brand: Emerson
SKU: 12P4629X092-233D
Price: 295.0 USD
Availability: InStock

P/N: 12P4629X092-233DNEW · SEALED

$295.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Analog output, 4-20 mA HART (Emerson ordering model SE4304T01)

Signal range 4-20 mA nominal span; 0-24 mA full range

Resolution / accuracy 16-bit D/A; 0.25% of span (0-60 °C)

Field power 20 mA at 15 VDC supply into a 750 Ω load

HART support HART v7 pass-through for AMS device management

Protection 24 mA current-limiting circuit; field wiring disconnect

Assembly number 12P4629X092-233D Rev M (as listed)

Item specifics

Brand Emerson, Fisher-Rosemount

Model KL3022X1-BA1

MPN 12P4629X092-233D

Country of Origin United States

The Emerson KL3022X1-BA1 is the analog output CHARM for DeltaV Electronic Marshalling. Each module drives one 4-20 mA final control element - a valve positioner or I/P converter, for example - with HART v7 pass-through so AMS device management sees the instrument. Like all CHARMs it clips into a terminal block on a CHARM baseplate.

This listing is for one AO 4-20 mA HART CHARM, Emerson assembly 12P4629X092-233D Rev M as shown in the title, new and factory sealed.

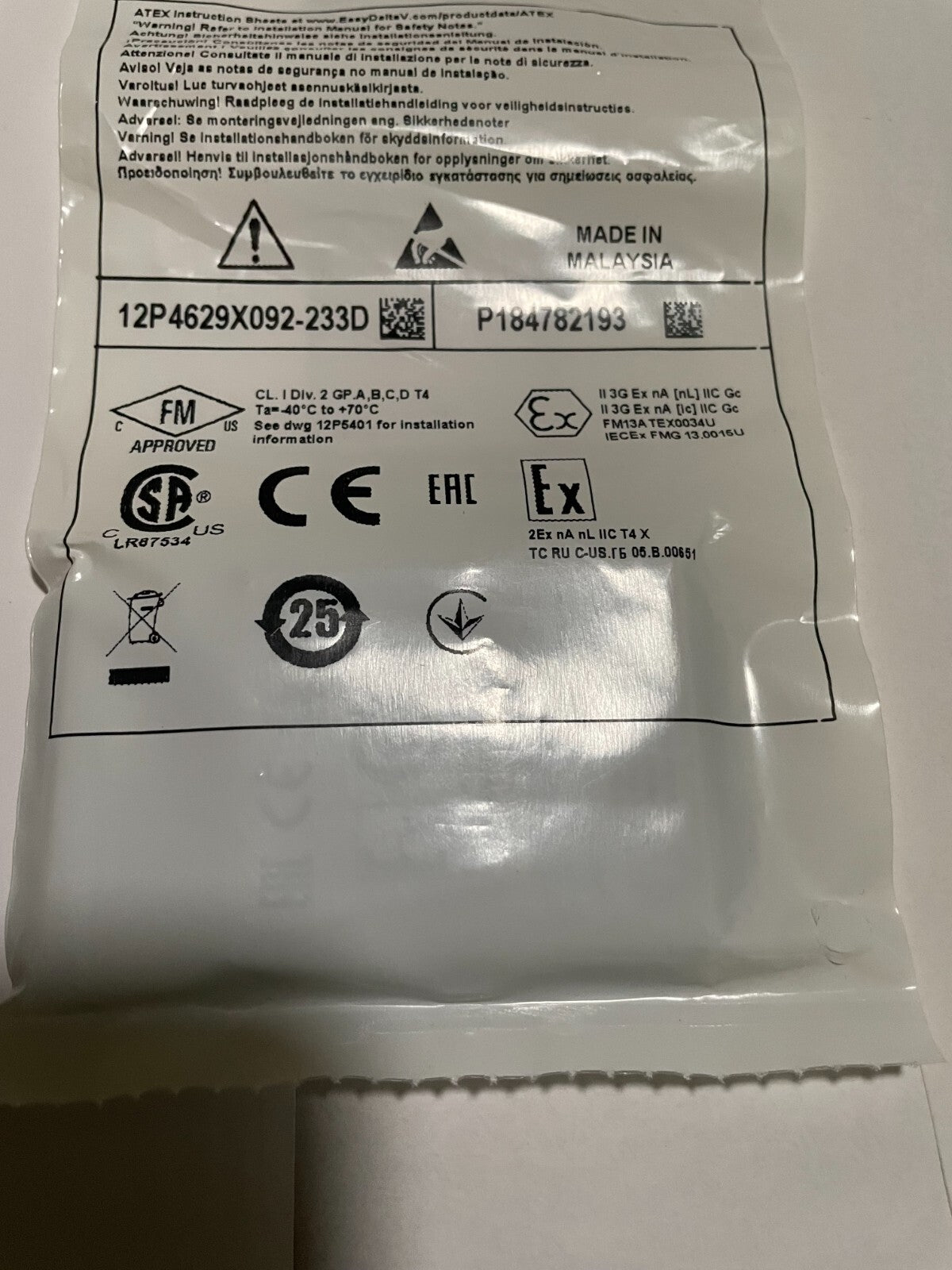

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
