NEW Emerson DeltaV 12P4627X082 KL3002X1-BA1 DO 24 VDC High Side Rev K

Name: NEW Emerson DeltaV 12P4627X082 KL3002X1-BA1 DO 24 VDC High Side Rev K
Brand: Emerson
SKU: 12P4627X082
Price: 195.0 USD
Availability: InStock

P/N: 12P4627X082NEW · SEALED

$195.00

In stock — 62 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Discrete output, 24 VDC high-side (Emerson ordering model SE4302T01)

Output rating 100 mA continuous at 24 VDC

Off-state leakage 1 mA maximum

Line-fault detection Short <50 Ω; good 240 Ω to 10 kΩ; open >20 kΩ

Output behavior Discrete, momentary or continuous pulse; line-fault testing

Protection 200 mA current-limiting circuit; field wiring disconnect

Assembly number 12P4627X082 Rev K (as listed)

Item specifics

Brand Emerson, Fisher-Rosemount

Model KL3002X1-BA1

MPN 12P4627X082

Country of Origin United States

The Emerson KL3002X1-BA1 is the DO 24 VDC High-Side CHARM for DeltaV Electronic Marshalling, switching one 24 VDC solenoid-class load at up to 100 mA continuous. It offers configurable discrete, momentary or continuous pulse output behavior plus line-fault detection that distinguishes short, healthy and open field circuits.

This listing is for one DO 24 VDC High-Side CHARM, Emerson assembly 12P4627X082 Rev K as shown in the title, new and factory sealed.

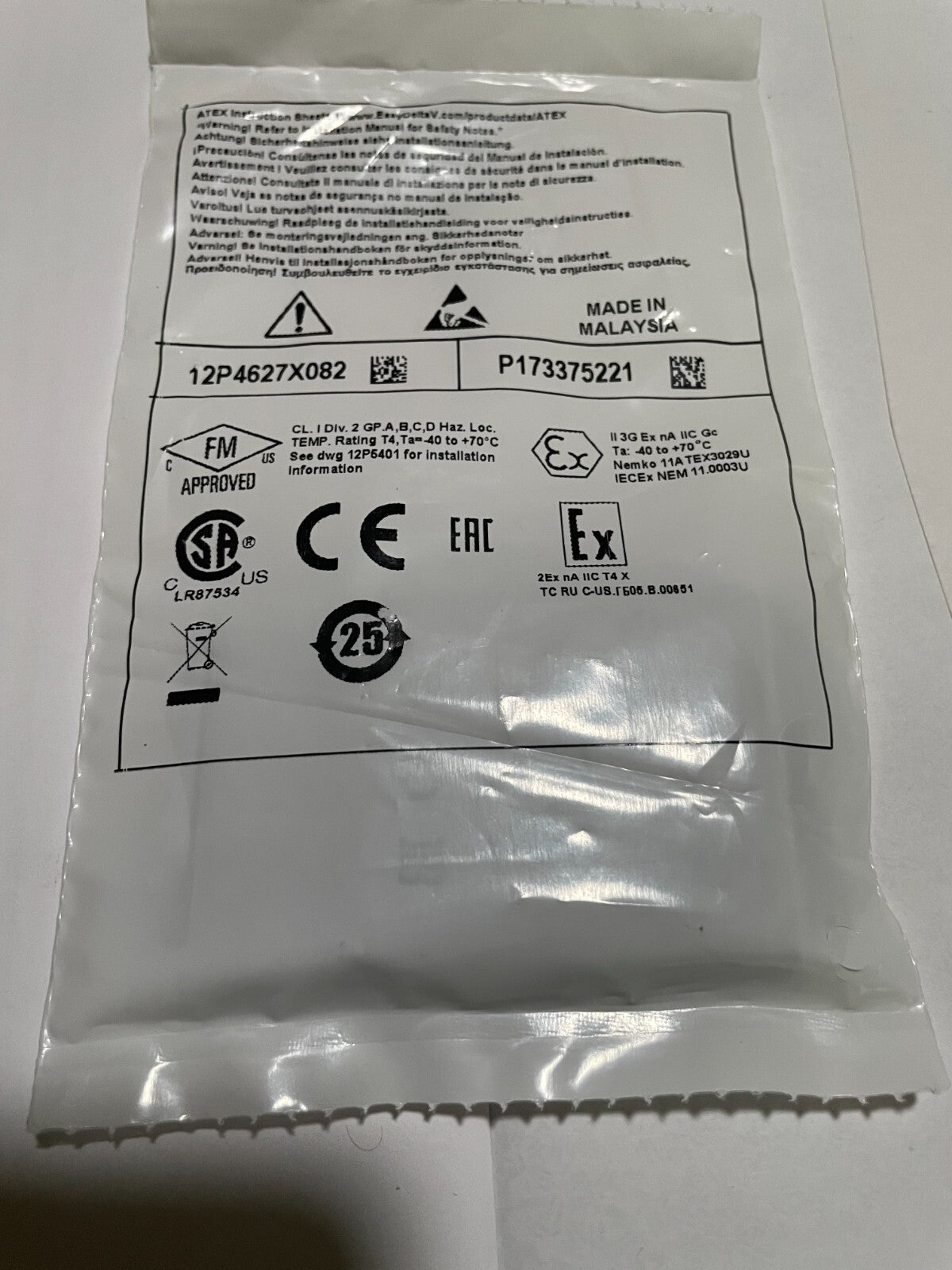

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
