NEW Emerson 12P4633X112-233C KL3004X1-BA1 DO 24 VDC Dry Isolated Rev N.

Name: NEW Emerson 12P4633X112-233C KL3004X1-BA1 DO 24 VDC Dry Isolated Rev N.
Brand: Emerson
SKU: 12P4633X112-233C
Price: 295.0 USD
Availability: InStock

P/N: 12P4633X112-233CNEW · SEALED

$295.00

In stock — 5 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Discrete output, 24 VDC isolated (Emerson ordering model SE4302T02)

Output range 4 to 32 VDC

Output rating 1.0 A continuous; 2 A inrush for <100 ms

Isolation Galvanically isolated output, factory tested to 1000 VDC

Protection 4 A current-limiting circuit with thermal shutoff; field wiring disconnect

Operating temperature -40 to +70 °C

Assembly number 12P4633X112-233C Rev N (as listed)

Item specifics

Brand Emerson, Fisher-Rosemount

Model KL3004X1-BA1

MPN 12P4633X112-233C

The Emerson KL3004X1-BA1 discrete output CHARM provides one galvanically isolated 24 VDC output channel for DeltaV Electronic Marshalling. Rated 1 A continuous with 2 A inrush headroom and a 4 A current-limiting circuit with thermal shutoff, it handles inductive loads such as solenoid valves while keeping the field circuit isolated from the system.

This listing is for one DO 24 VDC Isolated CHARM, Emerson assembly 12P4633X112-233C Rev N as shown in the title, new and factory sealed.

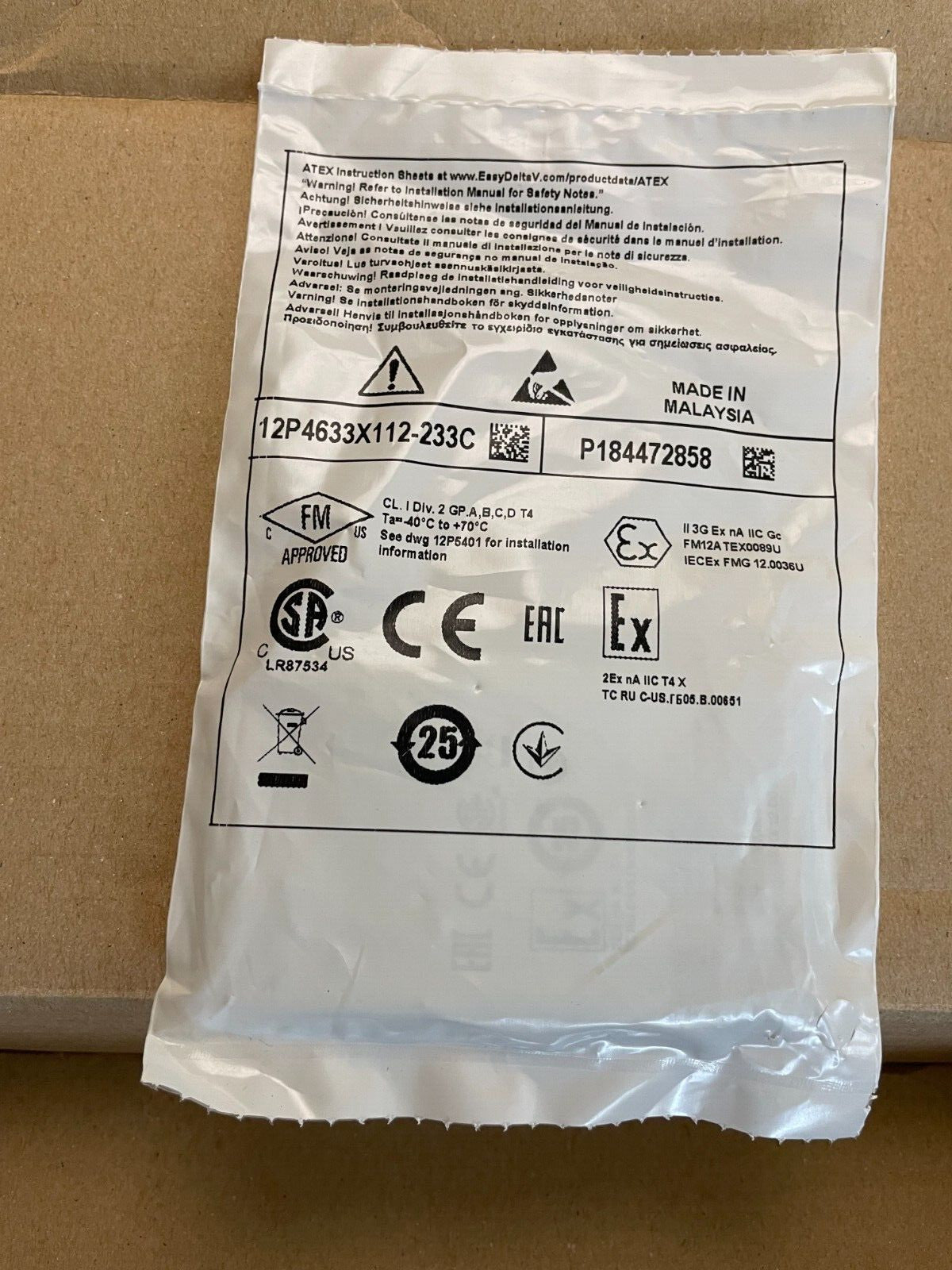

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
