NEW CUSTOM CONTROL SENSORS 646GZE9-7011 / CCS 646GZE9-7011

P/N: 646GZE9-7011NEW · SEALED

$399.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Type Gage pressure switch, DUAL-SNAP disc spring, SPDT snap-action (standard)

Adjustable set point (increasing pressure) 2100-3400 psi

Reset range (decreasing pressure) 1820-3120 psi; approx. deadband 280 psi

Maximum system pressure 5,000 psi (proof/test pressure 7,500 psi)

Electrical rating 15 A resistive at 125/250/480 VAC 50/60 Hz; 0.4 A at 125 VDC

Pressure port / wetted parts 1/2 in. NPT 316 stainless steel port, SST diaphragm, Viton O-ring (-7011 option)

Enclosure and approvals NEMA 4, 7, 9, 13; UL/CSA explosion-proof Div. 1 and 2, Class I Groups A-D, Class II Groups E-G (UL file E32961, CSA file 22921)

Ambient temperature range -30 to 160 F (-34 to 71 C)

Item specifics

Brand CUSTOM CONTROL SENSORS

MPN 646GZE9-7011

Country of Origin United States

Custom Control Sensors' 646GZE series combines a DUAL-SNAP disc-spring switching element with a fire-resistant steel body rated NEMA 4, 7, 9 and 13, UL/CSA certified explosion-proof for Division 1 and 2 areas (Class I, Groups A-D; Class II, Groups E-G). Externally adjustable and built to shrug off vibration and shock, these switches monitor high-pressure lines in oil and gas, power generation, fluid management and chemical refining service.

This listing covers one new, sealed 646GZE9-7011, a US-made unit per the listing specifics. Its range code 9 places the switch point anywhere from 2100-3400 psi on rising pressure, resetting between 1820-3120 psi on falling pressure with roughly 280 psi of deadband, in systems rated to 5,000 psi working and 7,500 psi proof pressure. The -7011 configuration uses a 1/2 in. NPT 316 stainless steel port and stainless steel diaphragm sealed with a Viton O-ring.

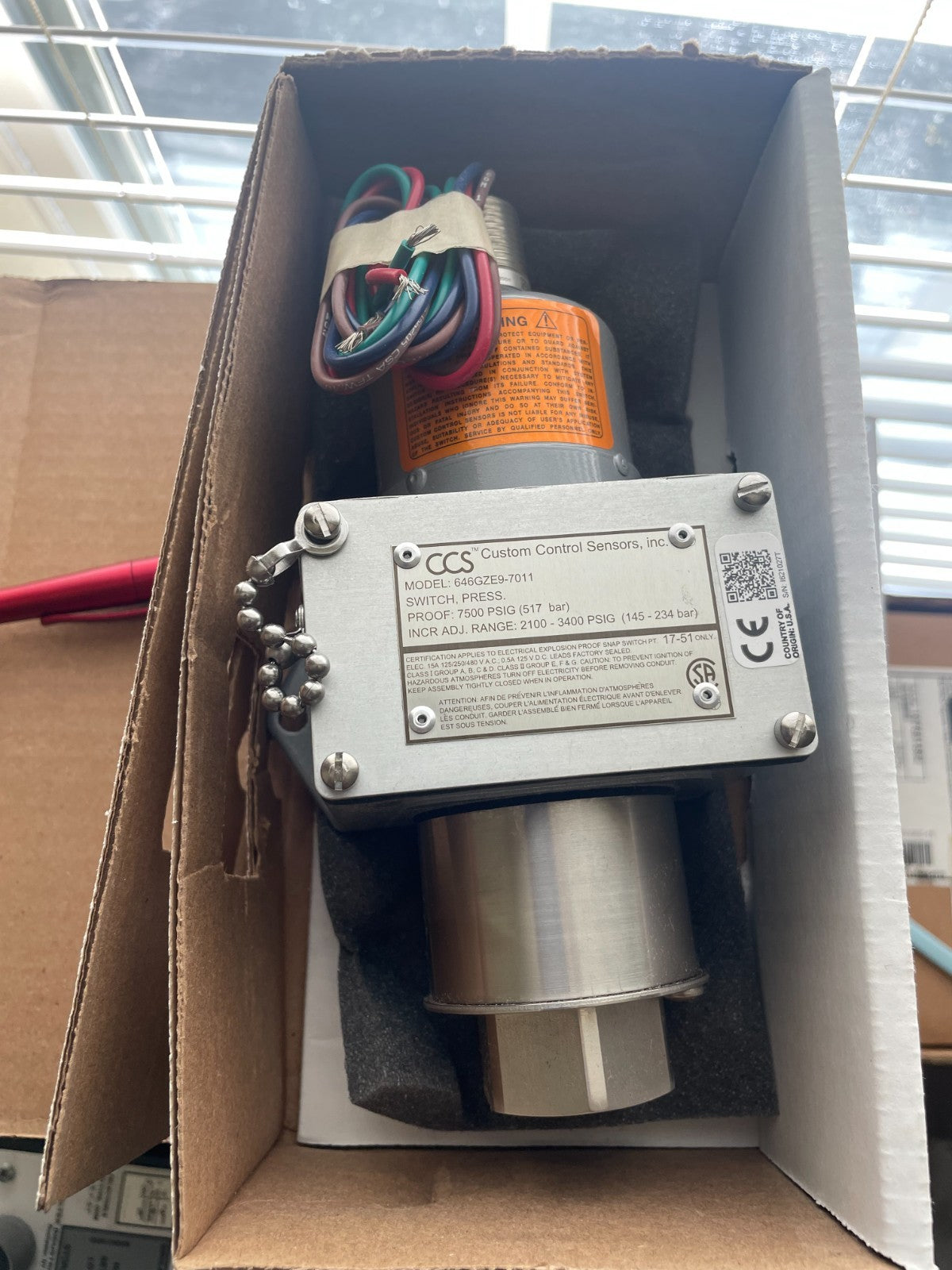

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
