NEW CCS 646GZE7-7011 Custom Controls Pressure Switch

Name: NEW CCS 646GZE7-7011 Custom Controls Pressure Switch
Brand: Custom Control Sensors
SKU: 646GZE7-7011
Price: 399.99 USD
Availability: InStock

P/N: 646GZE7-7011NEW · SEALED

$399.99

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Type Gage pressure switch, DUAL-SNAP disc spring, SPDT snap-action (standard)

Adjustable set point (increasing pressure) 950-2300 psi

Reset range (decreasing pressure) 750-2100 psi; approx. deadband 200 psi

Maximum system pressure 3,000 psi (proof/test pressure 5,000 psi)

Electrical rating 15 A resistive at 125/250/480 VAC 50/60 Hz; 0.4 A at 125 VDC

Pressure port / wetted parts 1/2 in. NPT 316 stainless steel port, SST diaphragm, Viton O-ring (-7011 option)

Enclosure and approvals NEMA 4, 7, 9, 13; UL/CSA explosion-proof Div. 1 and 2, Class I Groups A-D, Class II Groups E-G (UL file E32961, CSA file 22921)

Ambient temperature range -30 to 160 F (-34 to 71 C)

Item specifics

Brand CCS

Product Brand CCS

Current Type AC

Model 646GZE7-7011

Fuse Type Switch

MPN 646GZE7-7011

Model Line DUAL-SNAP

Model Number 646GZE7-7011

UPC not applicable

The CCS 646GZE7-7011 is an externally adjustable gage pressure switch from Custom Control Sensors' DUAL-SNAP line, which uses a snap-acting disc spring for high vibration and shock resistance. Its fire-resistant steel enclosure is rated NEMA 4, 7, 9 and 13 and is UL/CSA listed explosion-proof for Division 1 and 2 hazardous locations (Class I, Groups A-D; Class II, Groups E-G), making it a fit for oil and gas, power generation, chemical processing and water treatment installations.

This listing is for a single new, factory-sealed 646GZE7-7011. The range code 7 provides an adjustable set point of 950-2300 psi on rising pressure with reset between 750-2100 psi on falling pressure, in a system rated to 3,000 psi working pressure. The -7011 build pairs a 1/2 in. NPT 316 stainless steel port with a stainless steel diaphragm and Viton O-ring for wet or corrosive media, and the SPDT snap-action element handles up to 15 A at 125-480 VAC.

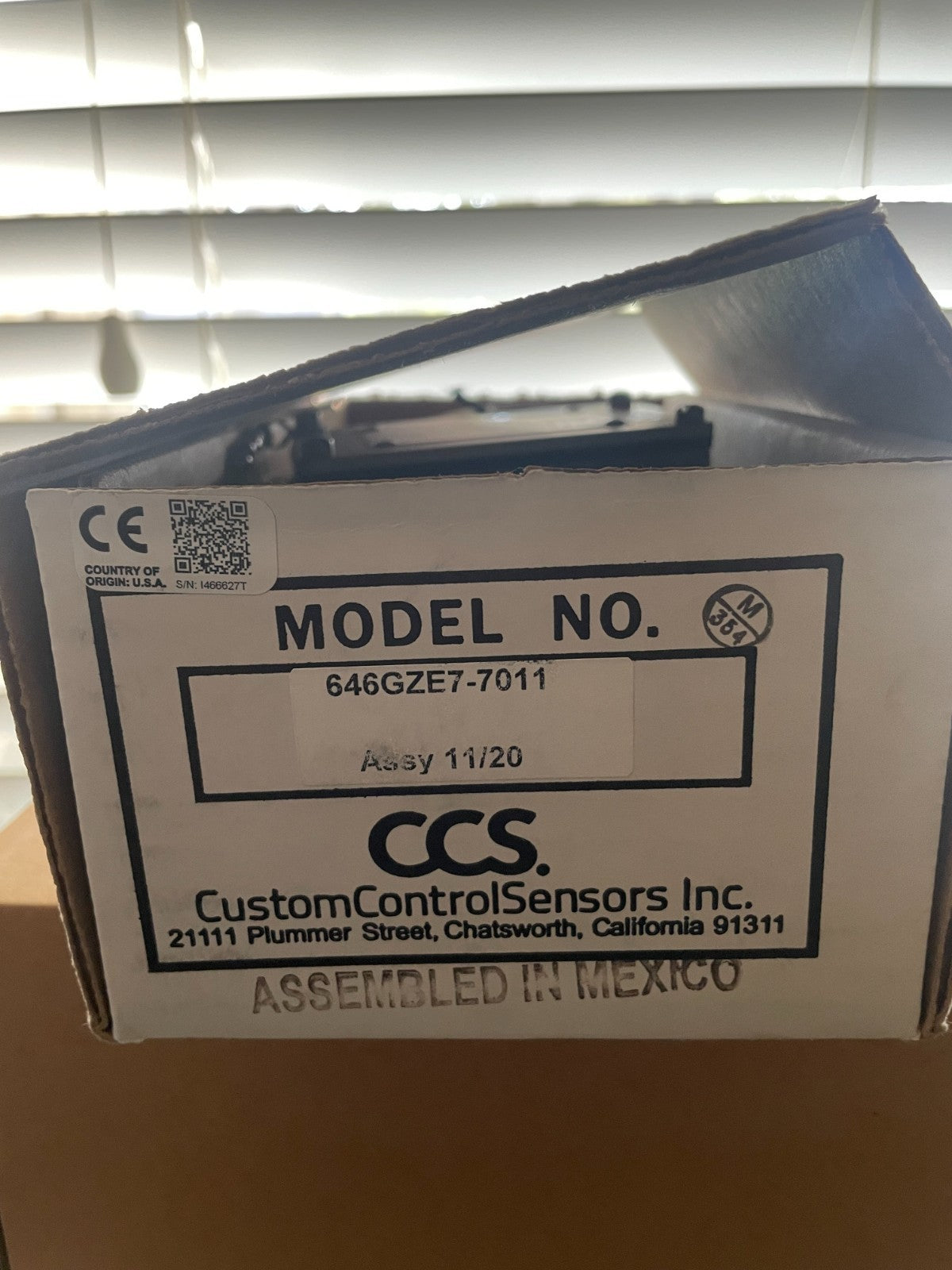

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
