NEW CAMERON NUFLO MC-III WP FLOW ANALYZER 9A-50179076

P/N: 9A-50179076NEW · SEALED

$2,490.00

In stock — 4 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Cameron NuFlo MC-III WP flow analyzer (weatherproof digital totalizer and transmitter for liquid and gas turbine meters)

Configuration Direct mount, lithium battery power, Class I Division 2 approved variant

Turbine meter input Frequency range 0 to 3,500 Hz; configurable sensitivity; 12-point linearization

Communications RS-485 Modbus, RTU and Enron Modbus protocols, baud rates up to 115.2K

Outputs Loop-powered 4-20 mA (16-bit, 0.1% FS at 25 C); scalable volumetric pulse; amp-and-square frequency output

Flow archive 384 daily logs, 768 hourly logs, 345 event logs; high-speed Modbus download

Power 3.6 VDC lithium battery pack (two-year typical life); platform also supports alkaline or external 6-30 VDC power

Certification / enclosure CSA approved for US and Canada; Class I, Division 2, Groups A, B, C, D; Type 4 enclosure

Item specifics

Brand Cameron

MPN 9A-50179076

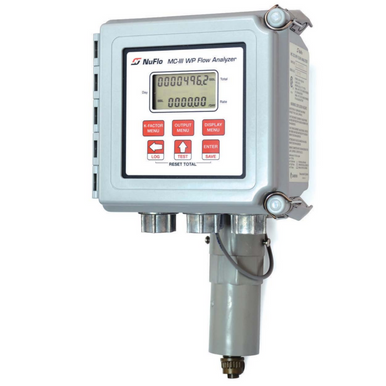

The Cameron NuFlo MC-III WP is a weatherproof digital flow analyzer and totalizer for liquid and gas turbine meters, built for field oil and gas measurement in hazardous areas that don’t require an explosion-proof housing — it carries CSA Class I, Division 2 (Groups A, B, C, D) approval in a Type 4 enclosure. A 0–3,500 Hz turbine input with 12-point linearization feeds an eight-digit total and six-digit rate LCD, while RS-485 Modbus (RTU and Enron), a loop-powered 4–20 mA output, and a scalable pulse output tie it into wider measurement systems. The onboard archive holds 384 daily, 768 hourly, and 345 event logs, downloadable in under a minute at 115K baud.

This listing is for assembly 9A-50179076, the direct-mount, lithium-powered, Division 2 approved configuration — exactly as printed on the factory box label in the photos ("MC-III WP, DM, LITH PWR, DIV 2 APVD", battery disconnected for transport). The unit comes new in the original Cameron carton, and the photographs show the actual boxed unit and its assembly label.

Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
