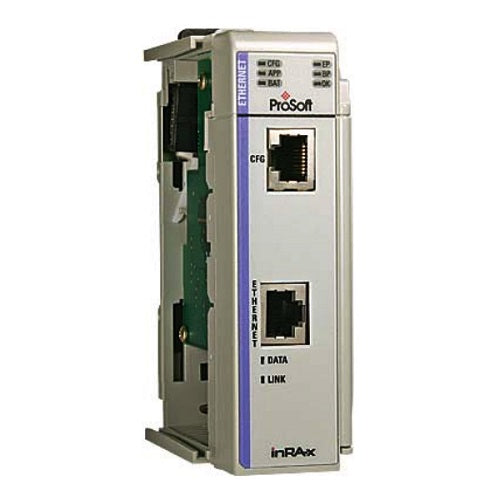

ProSoft MVI69-MNET Modbus TCP/IP Client/Server Communications

P/N: MVI69-MNETUSED · TESTED

$729.99

In stock — 9 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Module type Modbus TCP/IP client/server interface (inRAx series)

Form factor Single-slot 1769 backplane module

Internal database 5,000 16-bit registers

Client driver One client supporting up to 100 commands

Server driver Up to 5 MBAP connections (port 502) plus 5 encapsulated Modbus RTU/ASCII connections

Ethernet port 10/100Base-T application interface

Configuration port RS-232 CFG port, RJ45 connector

Environment 0°C to 60°C operating, 5–95% RH non-condensing

Overview

Brand ProSoft

Part number MVI69-MNET

Condition Used · Tested

Details CompactLogix

Modbus TCP/IP client/server

Item specifics

Brand ProSoft Technology

Model MVI69-MNET

MPN MVI69-MNET

Country of Origin China

ProSoft Technology’s MVI69-MNET puts a Modbus TCP/IP client/server interface directly in the CompactLogix rack. The module mounts in one 1769 slot and is recognized as an I/O module by the processor: ladder logic moves data between controller memory and the module’s 5,000-word register database, while the Ethernet side handles Modbus TCP/IP traffic asynchronously. On the network it can actively poll remote devices with up to 100 client commands and simultaneously answer up to five MBAP clients and five encapsulated Modbus RTU/ASCII connections through its 10/100Base-T port.

This listing is for the MVI69-MNET module (MPN MVI69-MNET), compatible with CompactLogix and MicroLogix 1500 LRP controllers except the 1769-QBFC1B, 1769-L16x and 1769-L18x. It is a legacy inRAx-series part on ProSoft’s support pages, so a working tested module is the low-friction route to spares and like-for-like replacements in running systems.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
