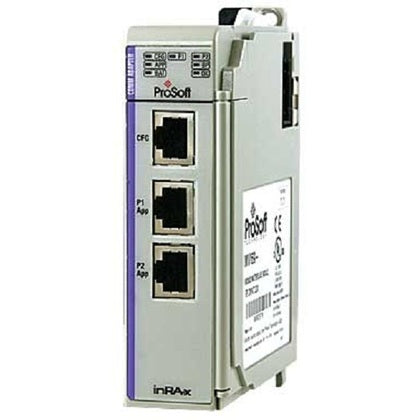

Mint ProSoft MVI69-DFCM MVI69DFCM CompactLogix DF1 COMMUNICATION MODULE

P/N: MVI69-DFCMUSED · TESTED

$850.00

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform In-chassis module for CompactLogix and MicroLogix 1500 LRP controllers (1769 bus)

Protocol DF1 half/full duplex; each port configurable as Master or Slave

Application ports 2x serial (P1, P2), RS-232/RS-422/RS-485 jumper-selectable, RJ45 with DB-9 adapter cables

Command list Up to 100 commands per Master port

Error checking CRC and BCC, with full hardware handshaking for radio, modem and multi-drop links

Current load 800 mA max @ 5 VDC

Form factor Standard 1769 single-slot module; 500 V optical isolation on application ports

Item specifics

Make ProSoft

Model MVI69-DFCM

MPN MVI69-DFCM

Brand ProSoft

The ProSoft MVI69-DFCM is an in-chassis communication module that gives Rockwell Automation CompactLogix and MicroLogix 1500 LRP controllers a native interface to DF1 networks. It occupies a single 1769 backplane slot and exchanges data asynchronously through an internal database, supporting the storage and transfer of up to 4,000 registers to and from the processor. Its two application serial ports are jumper-selectable for RS-232, RS-422 or RS-485, and each can be configured as a DF1 Master or Slave in full- or half-duplex mode, so one module can poll remote Allen-Bradley PLCs and power monitors while also answering an upstream SCADA host.

ProSoft has since moved the MVI69 series to legacy status, which makes a working example a straightforward way to keep an installed DF1 architecture running without re-engineering it. This listing is for a single MVI69-DFCM module in mint used condition, verified through our 12-point Orbitz Certified testing.

Condition: Used, tested, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.
