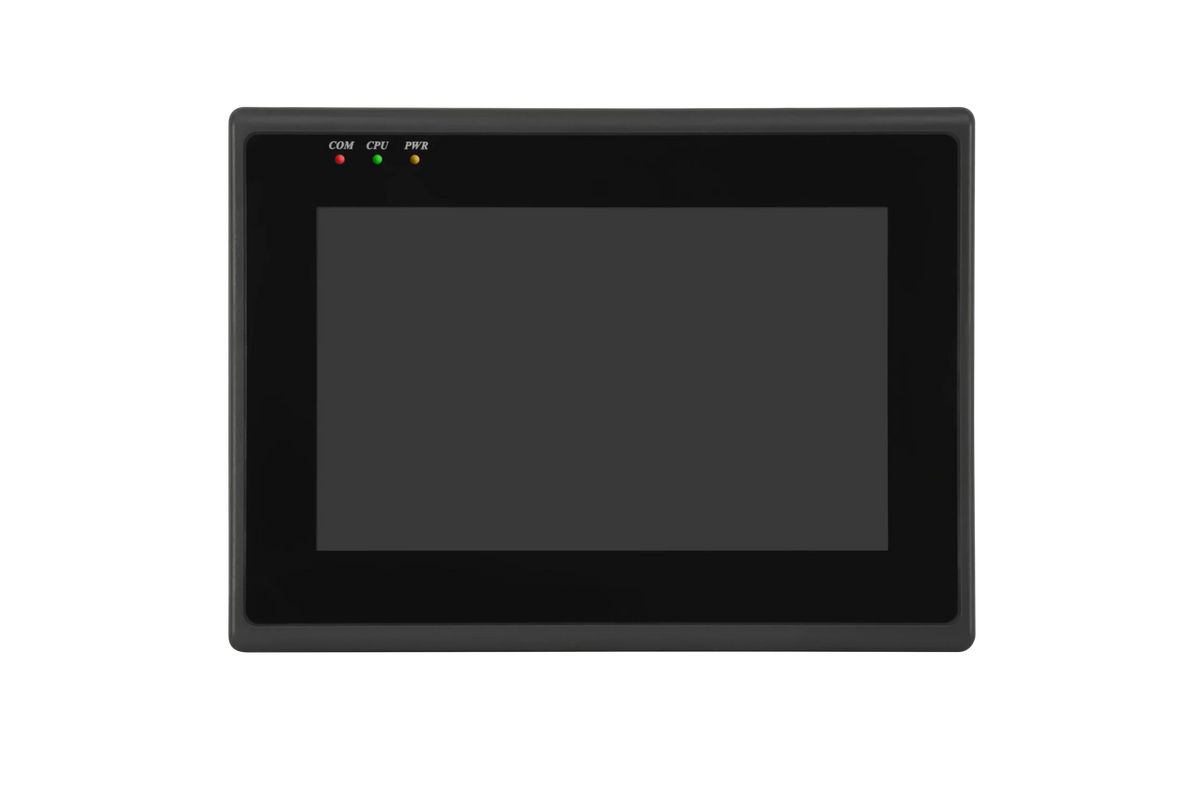

Maple Systems, HMI5070TH, Touchscreen Graphic Operator Display LCD Panel

P/N: HMI5070THUSED · TESTED

$1,199.00

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Maple Systems 7.0 in widescreen touchscreen graphic HMI (operator interface terminal)

Display 800 x 480 pixel TFT, 65,536 colors (16-bit), LED backlight, 4-wire analog resistive touch

Processor and memory 32-bit RISC CPU at 400 MHz; 128 MB flash, 64 MB DRAM

Communication ports 10/100 Ethernet (RJ45); 3 serial (RS-232/RS-485); 1 USB host; 1 USB 2.0 client; SD card slot

Protocol support 100+ drivers including Modbus TCP/IP and Allen-Bradley EtherNet/IP; up to 4 protocols simultaneously

Front panel rating IP65, NEMA 4 / 4X (indoor); CE, FCC Class A, cULus listed

Form factor Fanless, 200 x 146 x 42 mm, 0.85 kg; panel cutout 192 x 138 mm; VESA 75 compatible

Power input 24 VDC, 250 mA

Item specifics

Model HMI5070TH

MPN HMI5070TH

Brand Maple Systems

Country of Origin China

The Maple Systems HMI5070TH is a 7.0-inch widescreen touchscreen graphic HMI for machine-level control and monitoring. Its 800 x 480 TFT display renders 65,536 colors on a 16:9 panel with roughly 35 percent more screen area than a standard 5.7-inch unit, driven by a 400 MHz 32-bit RISC processor with 128 MB of flash and 64 MB of DRAM. Built-in 10/100 Ethernet, three serial ports, a USB host port, and an SD card slot tie it into plant equipment, with driver support for more than a hundred protocols — including Modbus TCP/IP and Allen-Bradley EtherNet/IP — and up to four running simultaneously. Screens, data logging, alarms, and recipes are configured in Maple Systems' EZware software.

This listing is for one HMI5070TH touchscreen operator display panel, as pictured. Maple Systems has since retired this model, so a tested used unit is the practical way to keep machinery already built around the HMI5070TH running without changing the panel cutout or migrating the project to a newer platform. This unit has been through our 12-point Orbitz Certified testing.

Condition: Used · Tested, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
