NEW Badger Meter M-Series M2000 Electromagnetic Flow Meter

Name: NEW Badger Meter M-Series M2000 Electromagnetic Flow Meter
Brand: Badger
SKU: M2000
Price: 1499.0 USD
Availability: InStock

P/N: M2000NEW · SEALED · Open box

$1,499.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Size range 1/4 to 78 in. (DN 6 to 2000)

Accuracy ±0.20% of reading ± 1 mm/s

Repeatability ±0.1%

Flow range 0.10 to 39.4 ft/s (0.03 to 12 m/s)

Power supply 85–265 V AC; optional 10–36 V DC

Fluid conductivity Minimum 5.0 µS/cm (20 µS/cm demineralized water)

Ambient temperature −4 to 140°F (−20 to 60°C)

Fluid temperature (meter-mounted) Rubber 178°F (80°C); PFA, PTFE & Halar 212°F (100°C)

Enclosure NEMA 4X (IP67); optional NEMA 6P (IP68)

Communication RS232 Modbus RTU standard; HART, Profibus DP, M-Bus require daughterboards

Flanges ANSI B16.5 Class 150 (standard for sizes ≤ 24 in.)

Item specifics

Brand Badger

Flow Meter Type Electromagnetic Flow Meter

Port Diameter 150ASA

MPN M2000

Country of Origin Czech Republic

The Badger Meter ModMAG M2000 is a full-bore inline electromagnetic flow meter that measures water, wastewater, water-based fluids and other liquids meeting minimum electrical conductivity. Based on Faraday's law of induction, it uses a pulsed DC magnetic field with no moving parts in the flow stream, so there is no pressure loss and accuracy is not affected by fluid temperature, pressure, viscosity or density.

The meter combines a flow detector with a processor-based transmitter featuring signal conversion accuracy of ±0.20% of reading ±1 mm/s, a backlit 4-line by 20-character LCD, four programmable digital outputs, empty pipe detection, power-loss totalization and a 32-bit DSP. It operates on 85–265 V AC or optional 10–36 V DC power and is housed in a NEMA 4X (IP67) enclosure with a rotating cover. Standard communication is RS232 Modbus RTU, with HART, Profibus DP and other protocols available on separate daughterboards.

Per the listing, this unit is configured with 150 mm (DN150, 6 in.) ANSI Class 150 flanges. The M2000 carries NSF/ANSI/CAN 61 and 372 listing and CSA certification.

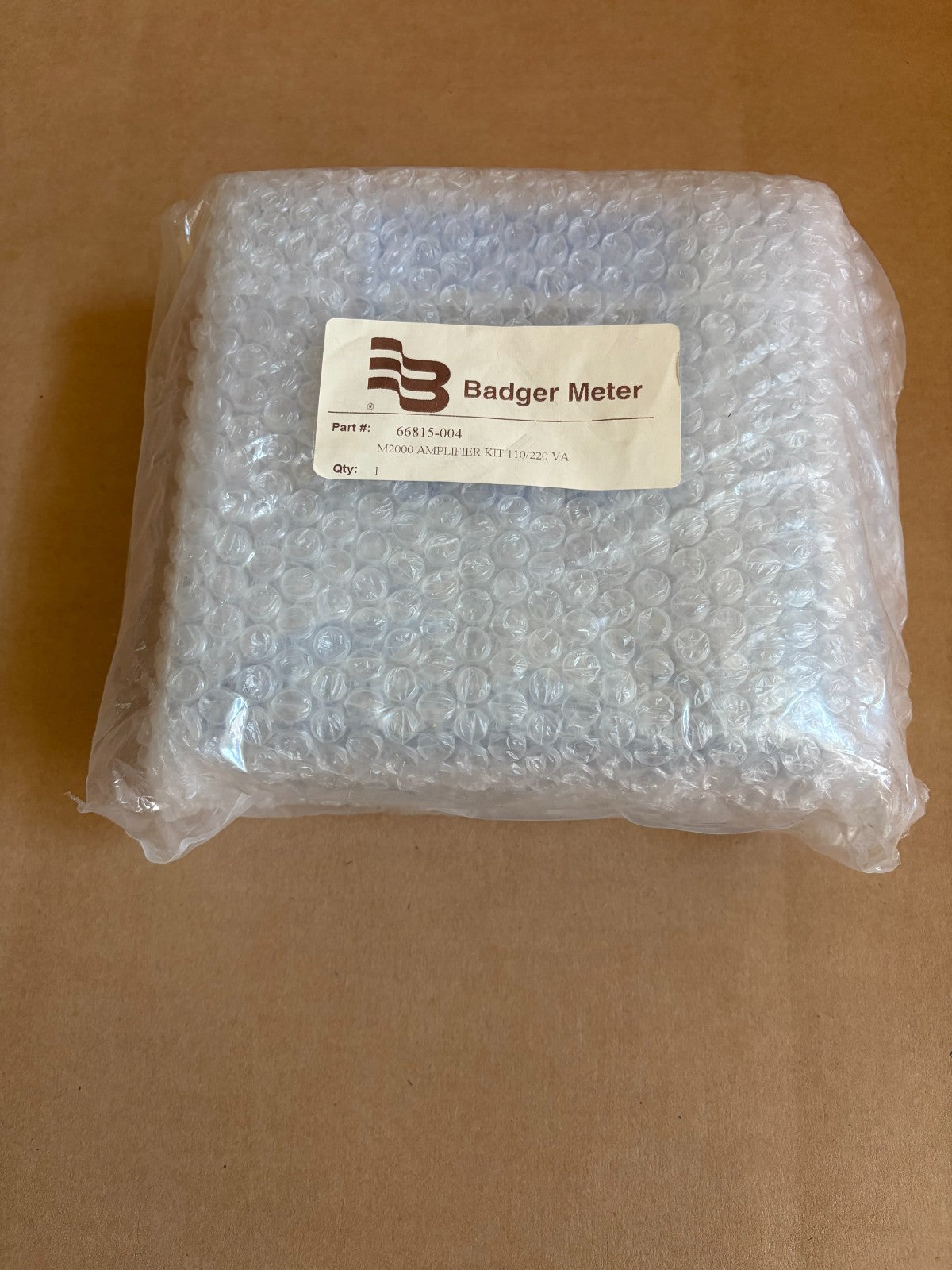

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
