NEW Eaton Circuit Breaker KD3400F 3 Pole 400A Trip KD3400 KT3400T 600v

Name: NEW Eaton Circuit Breaker KD3400F 3 Pole 400A Trip KD3400 KT3400T 600v
Brand: Eaton
SKU: KD3400F
Price: 1350.0 USD
Availability: OutOfStock

P/N: KD3400FNEW · SEALED

$1,350.00

Out of stock — we can source it

Notify me / source it

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Eaton Series C K-frame molded case circuit breaker, type KD (frame catalog number)

Rated current 400 A

Poles 3

Voltage rating 600 Vac / 250 Vdc, 50/60 Hz

Interrupting ratings 65 kA @ 240 Vac · 35 kA @ 480 Vac · 25 kA @ 600 Vac · 10 kA @ 250 Vdc

Trip unit Accepts Series C Type KT trip units (title references KT3400T, 400 A)

Overview

Brand Eaton

Part number KD3400F

Condition New · Sealed

Details 400A trip

600V

KT3400T

Item specifics

Brand Eaton

MPN KD3400F

Country of Origin United States

The Eaton KD3400F is a Series C, K-frame molded case circuit breaker frame, type KD — the 400 A, 3-pole platform used for large feeder and main protection in industrial switchboards. The frame is rated 600 Vac and 250 Vdc with interrupting capacity of 65 kA at 240 Vac, 35 kA at 480 Vac and 25 kA at 600 Vac, and completes into a working breaker with a Series C Type KT trip unit.

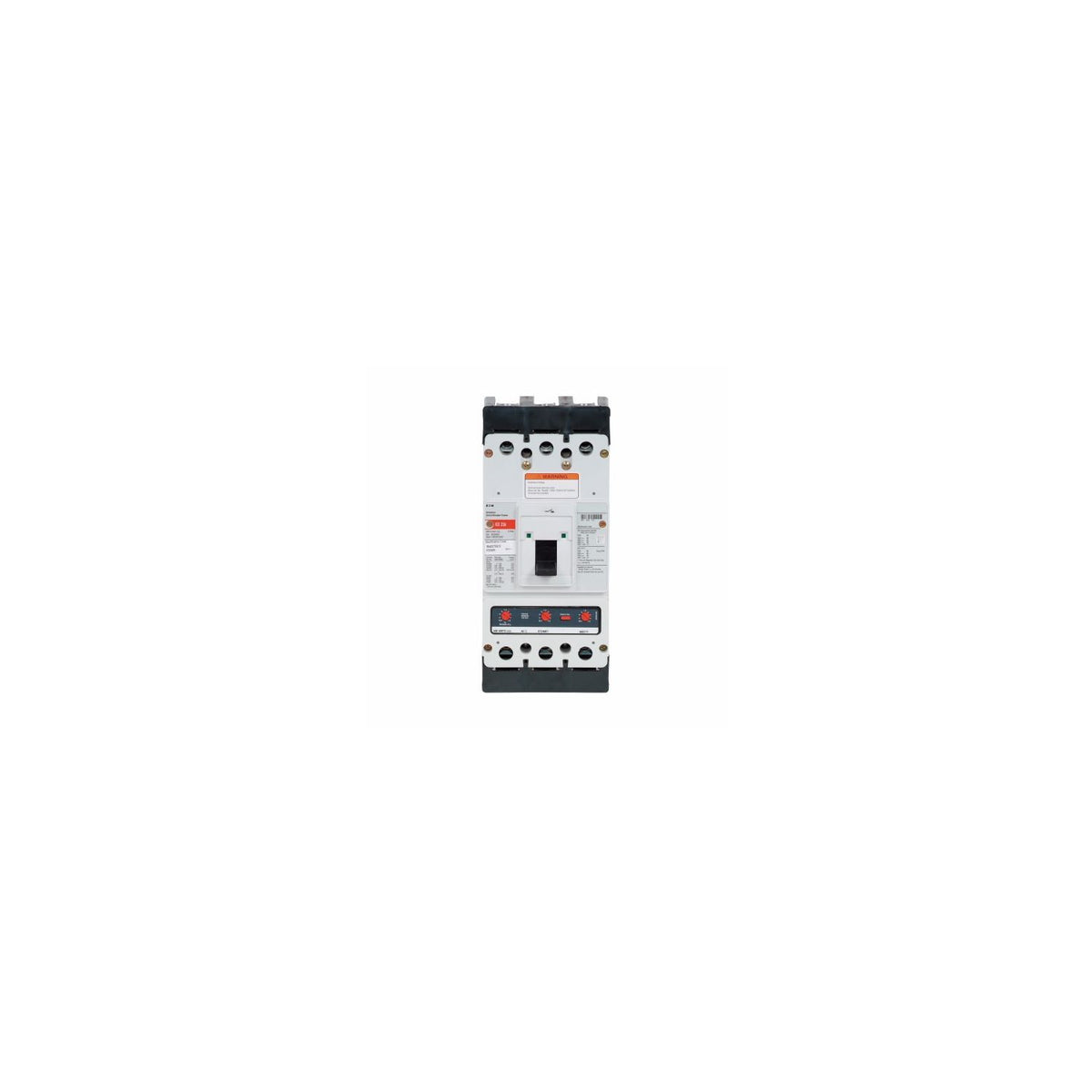

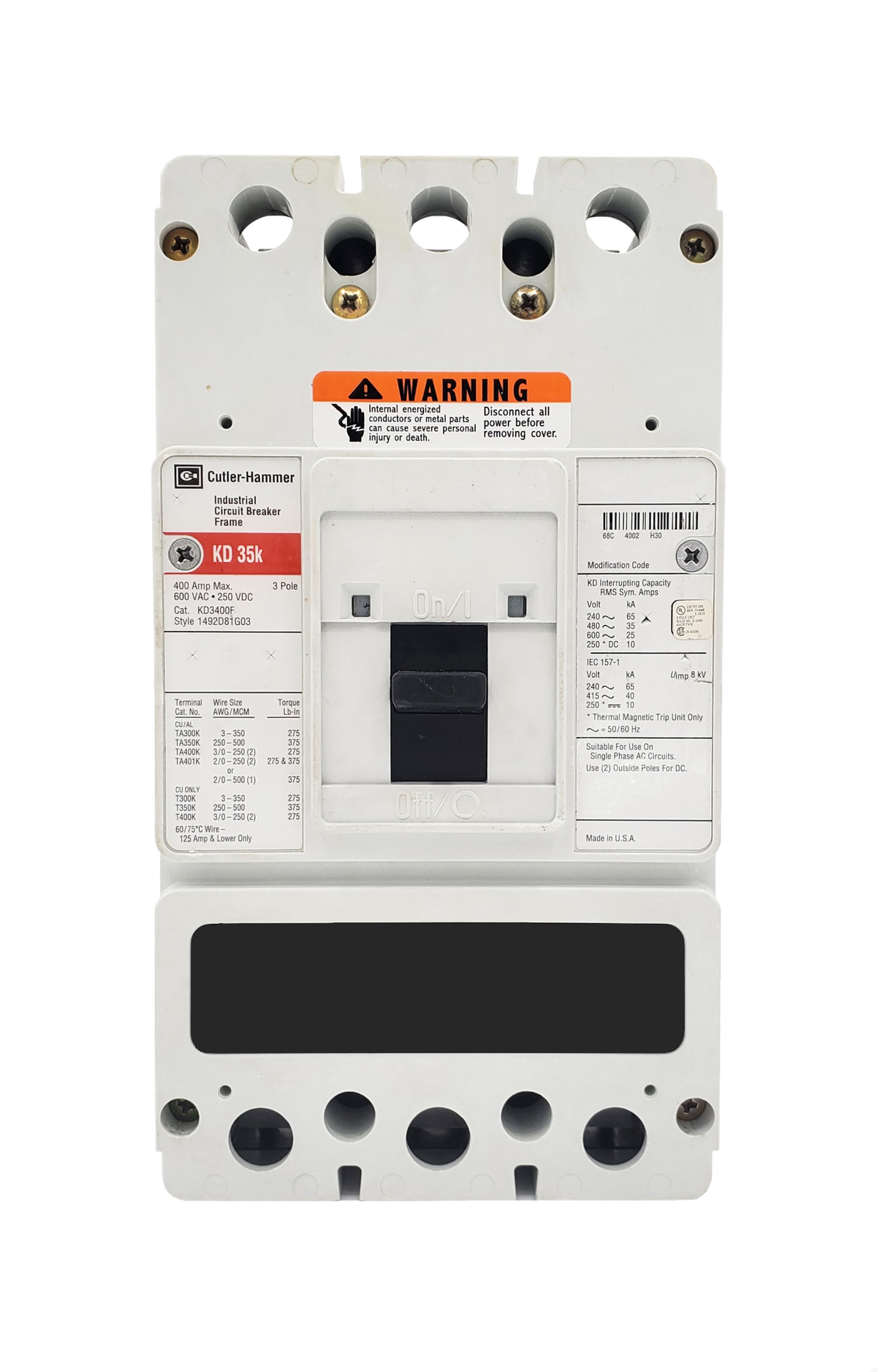

This listing is new and factory-sealed. The title also references the 400 A KT3400T Type KT trip unit and the completed KD3400 designation; the photographs show exactly what ships.

Condition: New · Sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
