Hitachi, Ltd P1-01470-HFUF 380-480 volt,3 phase, 75 HP, Qnty in stock Brand New

Name: Hitachi, Ltd P1-01470-HFUF 380-480 volt,3 phase, 75 HP, Qnty in stock Brand New
Brand: Hitachi
SKU: P1-01470-HFUF
Price: 6999.0 USD
Availability: InStock

P/N: P1-01470-HFUFNEW · SEALED

$6,999.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Hitachi SJ Series P1 (SJ-P1) industrial AC drive (VFD), 400 V class

Applicable motor (4-pole) 55 kW (75 HP) normal duty / 75 kW low and very-low duty

Rated output current 112 A (ND) / 135 A (LD) / 147 A (VLD)

Input power 3-phase 380-480 V AC, 50/60 Hz

Output frequency range 0.00-590 Hz (induction motors; PM motors to 400 Hz)

Motor control Sensorless vector control of induction and permanent-magnet motors; 200% starting torque at 0.3 Hz

Overload rating ND: 150% for 60 s, 200% for 3 s / LD: 120% for 60 s / VLD: 110% for 60 s

Interfaces Removable LCD keypad operator, RS-485 Modbus-RTU standard, optional fieldbus modules, EzSQ programming

Item specifics

Brand Hitachi

Bypass No Bypass

Model P1-01470-HFUF

MPN P1-01470-HFUF

Enclosure NEMA 1

Number Of Phases 3-Phase

Country of Origin Japan

The Hitachi P1-01470-HFUF belongs to the SJ Series P1 (SJ-P1), the flagship industrial drive family Hitachi builds for demanding process, material-handling, pump, fan, and HVAC applications. This 400 V-class unit carries a triple rating: 55 kW (75 HP) at normal duty, and up to 75 kW at low and very-low duty for lighter loads. Sensorless vector control runs both induction and permanent-magnet motors, with induction-motor output to 590 Hz and 200% starting torque at 0.3 Hz, and the drive includes Hitachi's removable LCD keypad operator, standard Modbus-RTU over RS-485, optional fieldbus modules (EtherCAT, PROFIBUS-DP), and EzSQ onboard programming for standalone logic.

This listing is for a brand-new P1-01470-HFUF with 3-phase 380-480 V input, rated 112 A at normal duty, 135 A at low duty, and 147 A at very-low duty. As listed, it is the standalone drive with no bypass, in a NEMA 1 enclosure, and quantity is in stock beyond a single unit; note that the retail box itself is worn and in rough cosmetic condition.

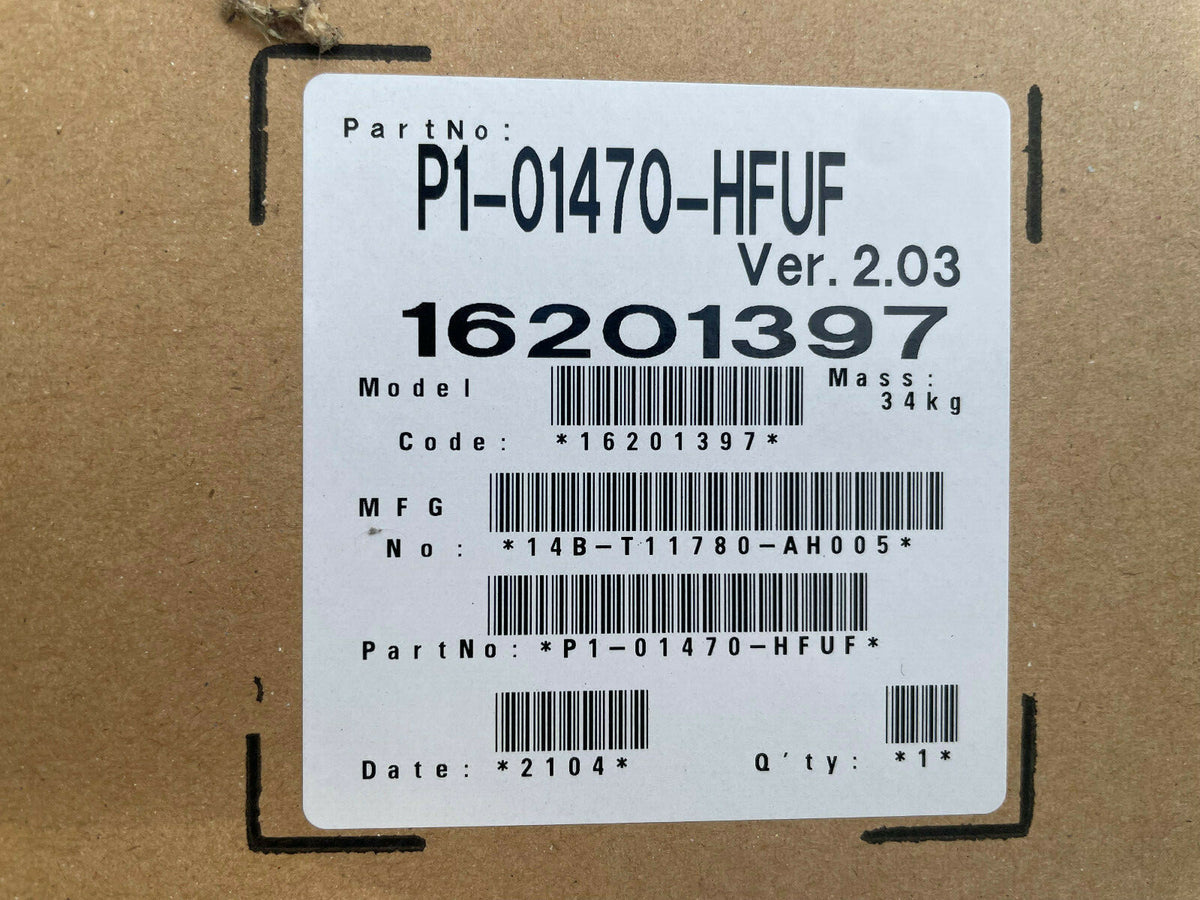

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
