Fisher FIELDVUE DVC6200 HW2 Digital Valve Controller w/ 67CFR Regulator

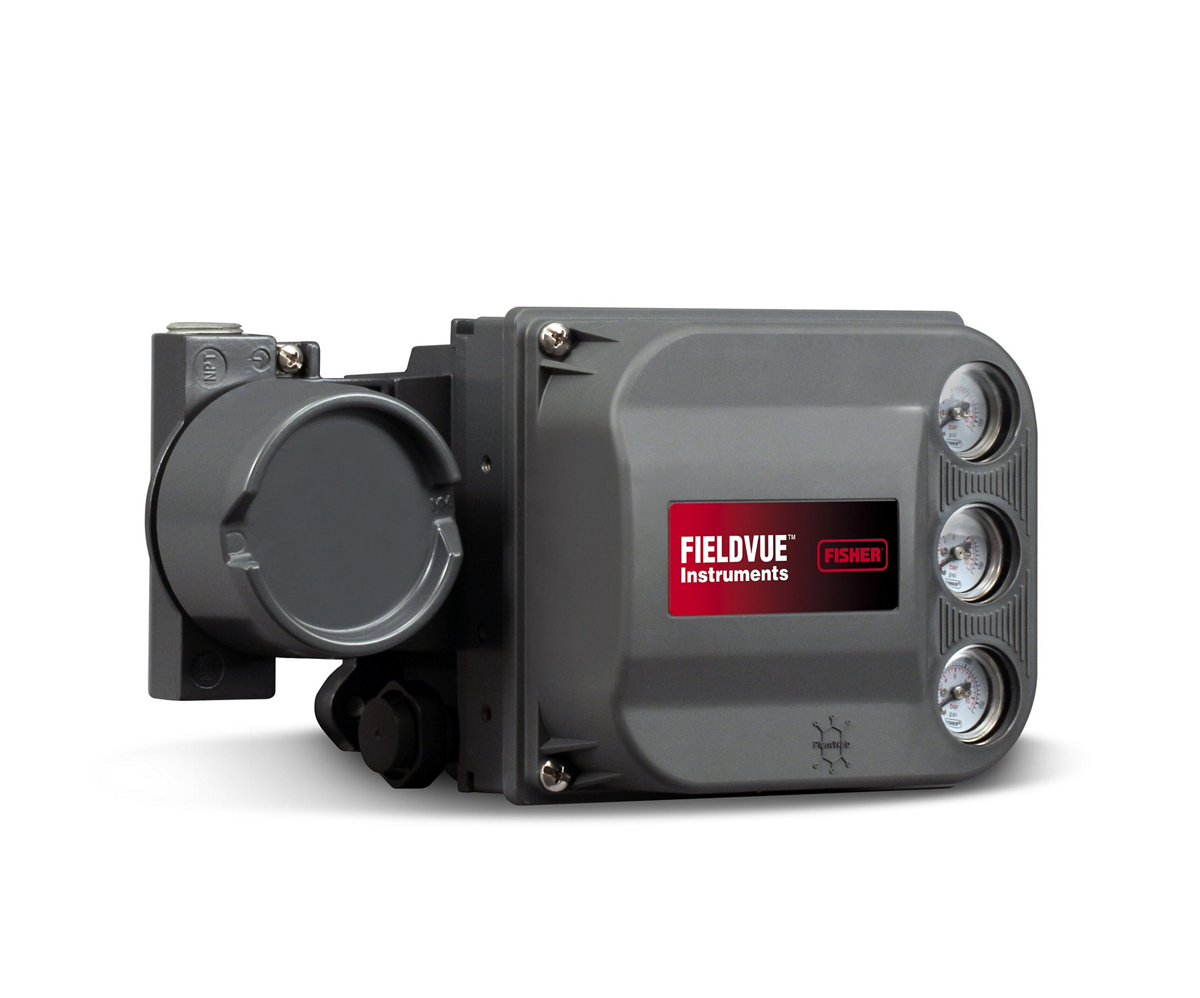

The Fisher FIELDVUE DVC6200 is a HART-communicating, microprocessor-based digital valve controller that converts a 4–20 mA DC input signal into a proportional pneumatic output signal for positioning a control valve actuator, supporting both HART 5 and HART 7 protocols. It accepts a maximum supply pressure of 10.0 bar / 145 psig (air or natural gas) and delivers an output span of 0.4–9.5 bar (6–140 psig) through a double-acting, single-acting direct, or single-acting reverse relay. The instrument carries a Type 4X / IP66 enclosure rating and an ambient operating range of –40 to 85°C (–40 to 185°F), and mounts integrally to Fisher 657/667 and GX actuators, in window-mount configuration to Fisher rotary actuators, or via IEC 60534-6 / NAMUR brackets to sliding-stem (6.35–606 mm travel) and quarter-turn (45–180°) actuators from other manufacturers. It is designed as a direct replacement for standard pneumatic and electro-pneumatic valve-mounted positioners.

The HW2 designation on the nameplate identifies this unit's electronics as Fisher's Hardware Revision 2 platform (printed wiring board assembly and terminal box), the generation covered by Emerson's current DVC6200 instruction manual. This listing includes a Fisher 67CFR instrument supply filter regulator, which mounts directly to the integral pad at the DVC6200's 1/4 NPT supply pressure port and supplies filtered, reduced air to the positioner; the specific instrument diagnostic level, relay configuration, and 67CFR spring-range dash number are not called out in the listing title and should be confirmed against the unit's nameplate.

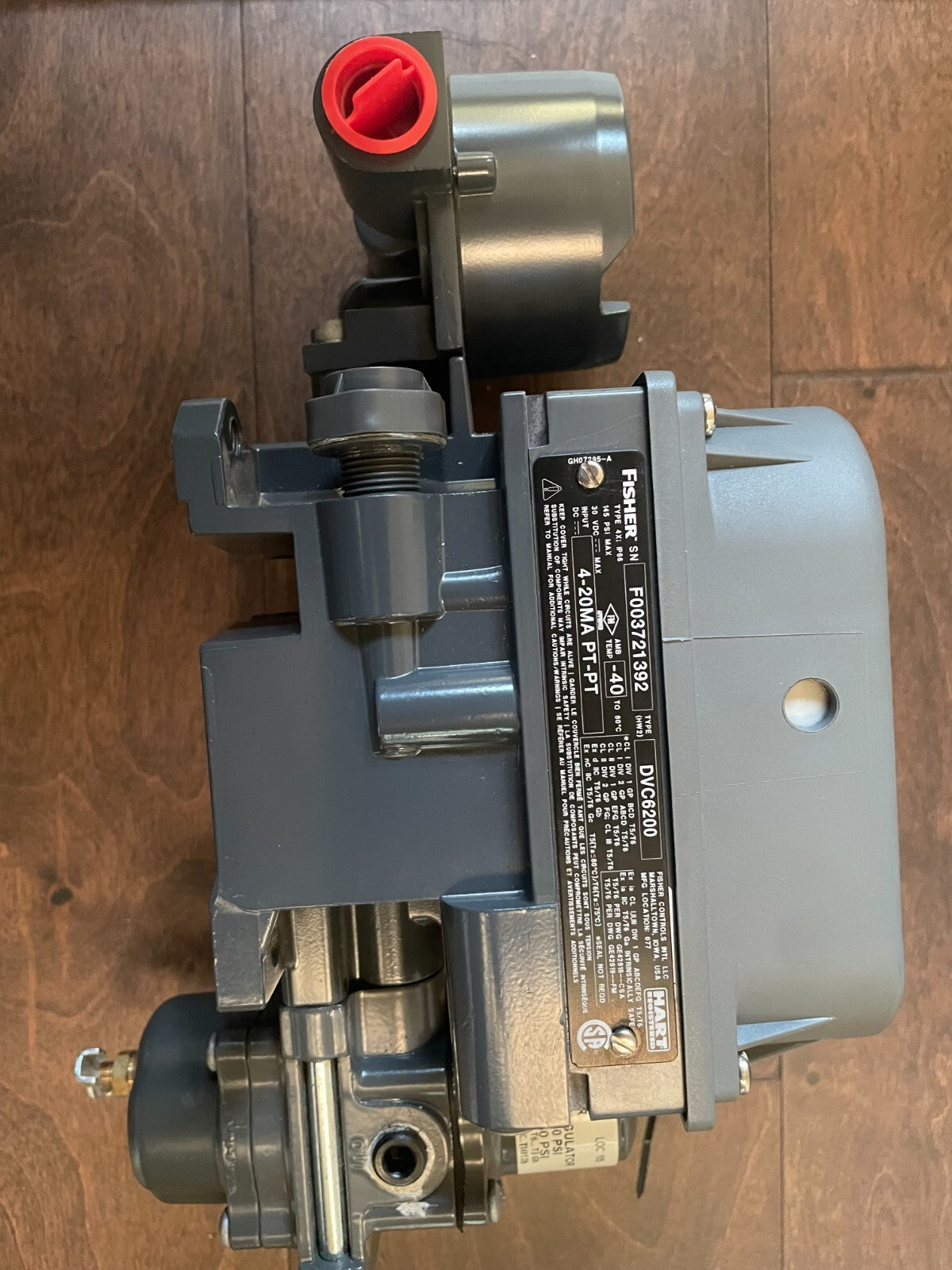

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
