EMERSON DELTAV KL3302X1-BC1 LS DO DTA REDUNDANT CHARM 12P6484X082

P/N: KL3302X1-BB1NEW · SEALED

$299.99

In stock — 5 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV SIS with Electronic Marshalling (CHARMs Smart Logic Solver)

CHARM type LS DO 24 VDC Redundant DTA (de-energize to actuate)

Output rating 500 mA continuous at 24 VDC; inrush limited to 1.16 A

Off-state leakage 5 mA maximum

Line-fault detection Short <10 Ω; good 56 Ω to 3.5 kΩ; open >20 kΩ

Redundancy Works as a redundant pair; common shutoff removes field power from both partners

CHARM power requirement 82 mA maximum at 24 VDC

Assembly number 12P6484X082 (as listed)

Item specifics

Brand DeltaV Emerson

Model KL3302X1-BB1

MPN KL3302X1-BB1

Controller Platform Delta V

This is a logic-solver output CHARM for DeltaV SIS, Emerson's safety instrumented system with Electronic Marshalling. The LS DO 24 VDC Redundant DTA (de-energize to actuate) CHARM drives safety final elements such as solenoid valves at up to 500 mA continuous, operating as a redundant partner pair with continuous line-fault detection on the field circuit. It installs on the CHARMs Smart Logic Solver (CSLS) hardware, not on standard process-control baseplates.

This listing is for one redundant DTA discrete output CHARM, assembly 12P6484X082 as shown in the title, new in packaging.

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

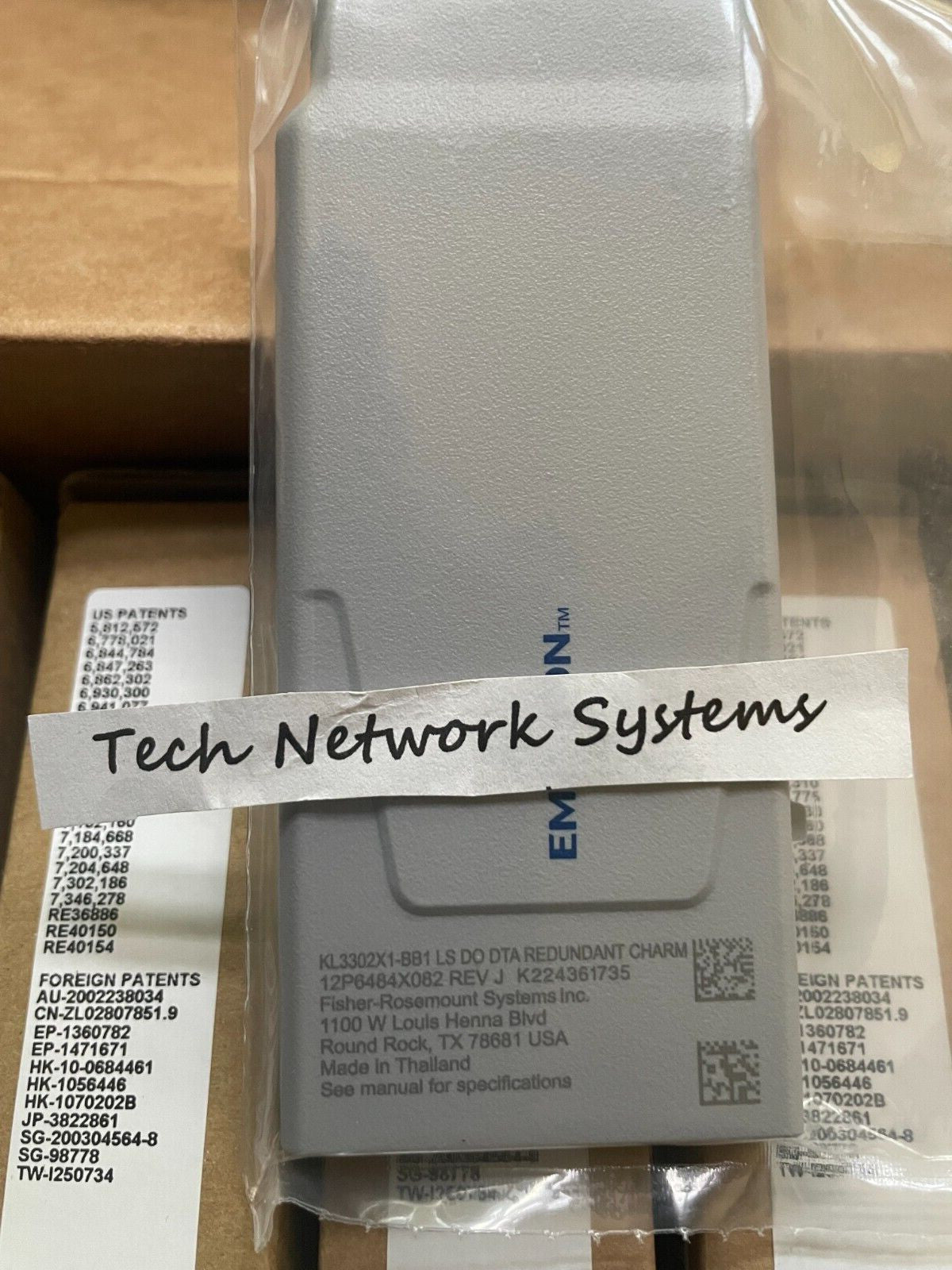

Emerson DeltaV LS DO DTA Redundant CHARM, new in packaging. The photographed unit's label reads KL3302X1-BB1, assembly 12P6484X082 Rev J (the listing title shows the suffix as -BC1; the label on the unit is authoritative). Sold as pictured.
