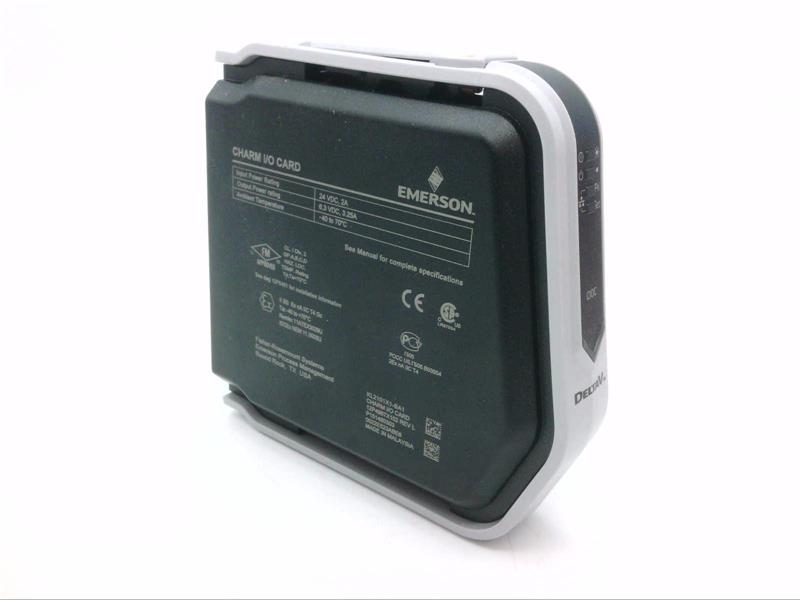

Emerson DeltaV KL2101X1-BA1 CHARM I/O Card (CIOC)

The Emerson DeltaV KL2101X1-BA1 is a CHARM I/O Card (CIOC), the interface card at the heart of DeltaV Electronic Marshalling. A single CIOC connects up to 96 single-channel CHARMs (CHARacterization Modules) to a DeltaV M-series, S-series, or PK controller over a redundant Ethernet I/O network, with every channel independently defined in software as analog input, analog output, discrete input, discrete output, RTD, or thermocouple/mV — the signal type is set by the CHARM and its terminal block, not by the card, which is what lets any point be marshalled electronically instead of hard-wired. CHARMs populate up to eight CHARM baseplates (12 channels each) beneath the card's 2-wide carrier. The card takes 24 VDC input and supplies 6.3 VDC at up to 3.25 A of redundant field power to the CHARMs, operates from -40 to 70 °C (-40 to 60 °C with fiber-optic I/O ports), and is rated for Class I, Division 2 and ATEX/IECEx/UKEX Zone 2 (Ex ec IIC Gc) hazardous locations. Calibration is not required.

KL2101X1-BA1 is the original CIOC generation (assembly 12P4987, model SE6501T01); the later CIOC2, with more computing power and Achilles Level 2 communications certification, carries a separate part number. In a live system two CIOCs run as a redundant pair on a shared carrier, so this card typically serves as one half of that pair or as a spare. This listing is for the CHARM I/O Card itself — carriers, CHARM baseplates, terminal blocks, and CHARMs are separate components and are not confirmed as included from the listing title.

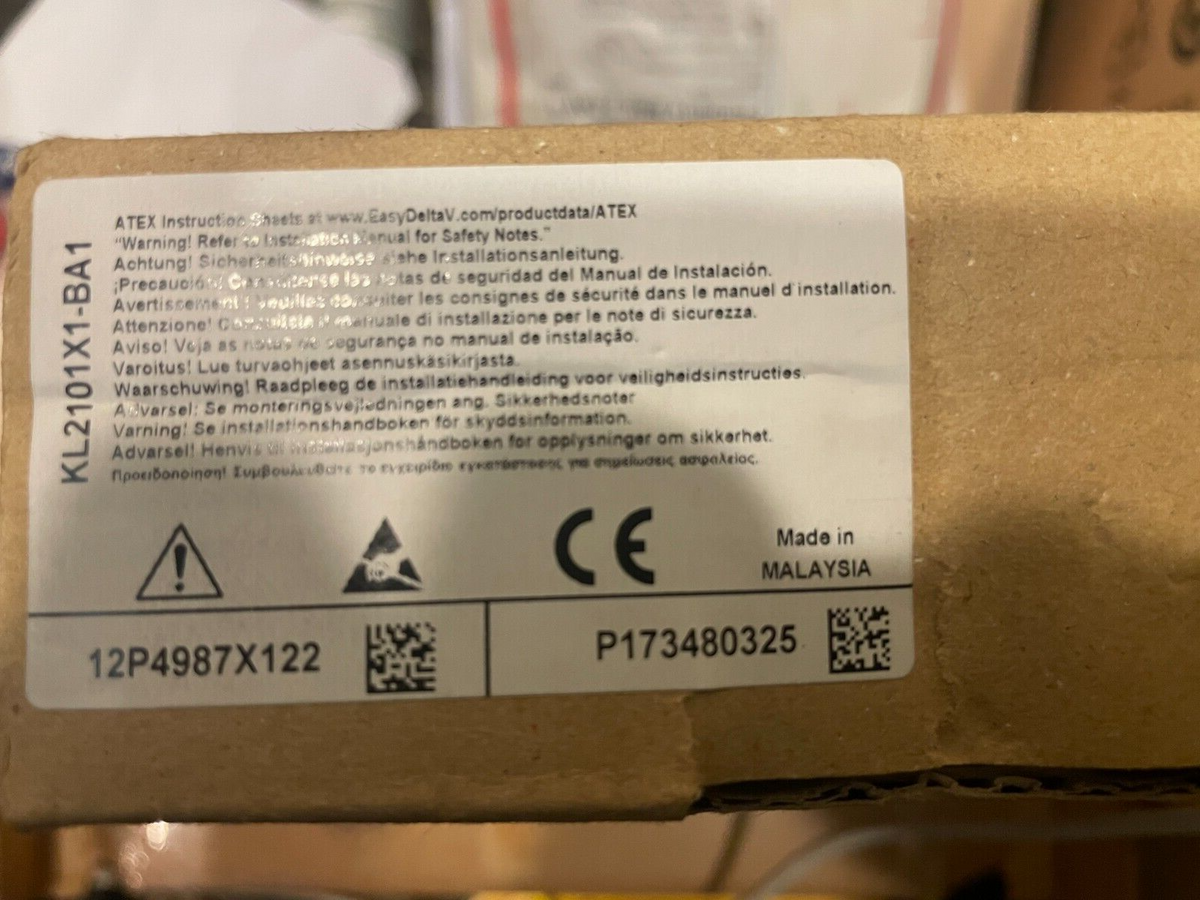

This unit is supplied as listed. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
