Emerson DeltaV KJ3223X1-BK1 S-Series AI 16-Channel 4-20 mA HART Card

P/N: KJ3223X1-BK1USED · TESTED

$1,699.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Channels 16 (4-20 mA HART, 2-wire transmitters)

Accuracy 0.2% of span over temperature range

Resolution 16-bit A/D converter

Full signal range 2-22 mA with over-range checking

Channel isolation Optically isolated from system, factory tested to 1000 V DC

HART Pass-through to AMS Device Manager; 600-800 ms scan per channel

Hazardous area Class I Div 2 Groups A-D; Class I Zone 2 (ATEX/UKEX Ex ec IIC Gc)

The Emerson DeltaV KJ3223X1-BK1 is a 16-channel analog input (AI) card for the DeltaV S-series distributed control system. It accepts 4-20 mA signals from 2-wire field transmitters and passes their HART digital data through to Emerson AMS Device Manager, digitizing each channel with a 16-bit A/D converter to an accuracy of 0.2% of span over the operating temperature range. The card covers a full signal range of 2-22 mA with over-range checking, optically isolates every channel from the system (factory tested to 1000 V DC), supplies transmitter loop power (13.5 V minimum at 20 mA, current-limited at 29 mA), and scans each enabled channel for HART variables and status every 600-800 ms. It is used in process-automation DCS installations across oil and gas, chemical, power and refining to bring transmitter measurements and device diagnostics into DeltaV control, and carries hazardous-area approvals for Class I Division 2 Groups A-D and Class I Zone 2 (ATEX/UKEX Ex ec IIC Gc).

This is the standard (non-redundant) AI card, wired for 2-wire transmitters; the redundant, 4-wire-capable variant is the separately numbered AI Plus. The listing covers the KJ3223X1-BK1 electronics module — DeltaV terminal blocks and carriers are ordered separately, so confirm exactly what is pictured.

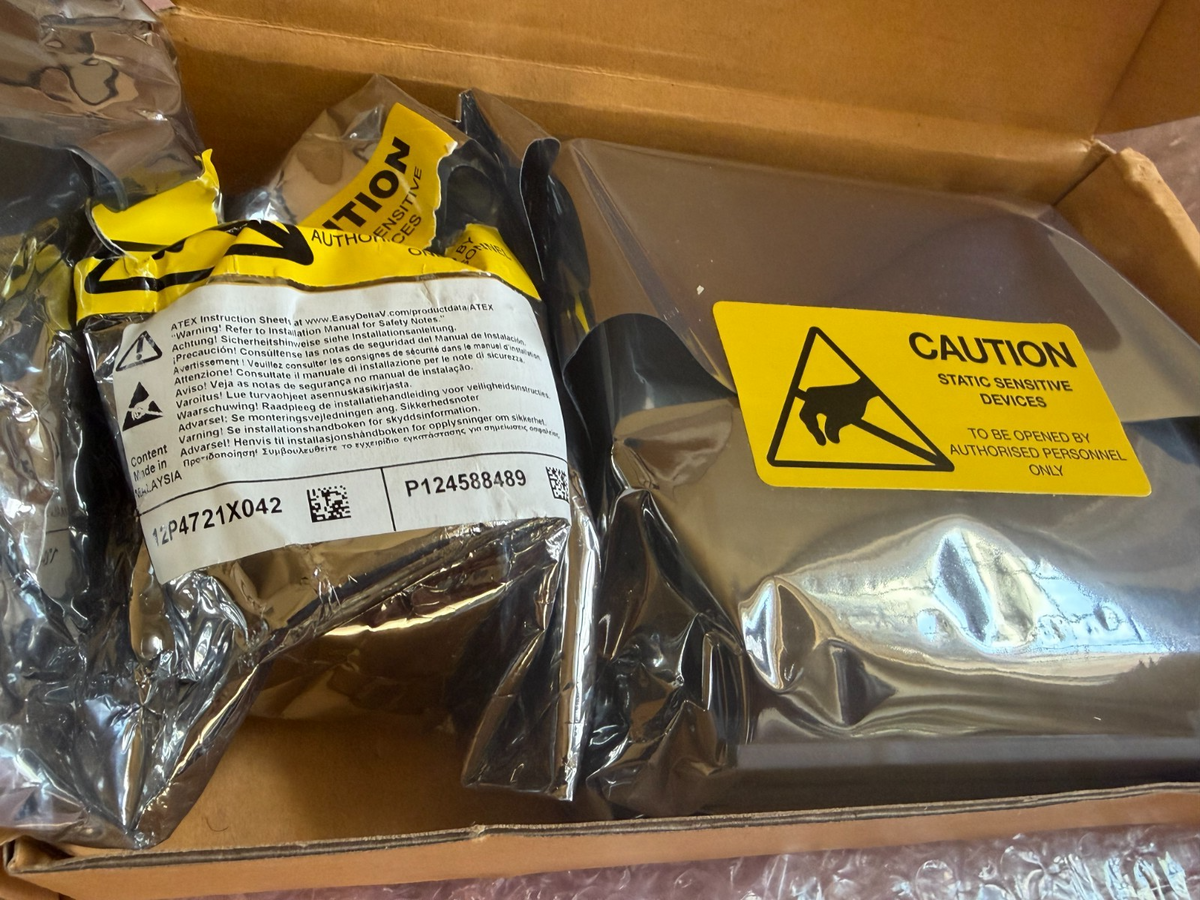

This unit is new, as listed. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
