Emerson DeltaV Discrete Input Card: 32C, 24Vdc. KJ3203X1-BK1 12P4694X032 Rev E.

Name: Emerson DeltaV Discrete Input Card: 32C, 24Vdc. KJ3203X1-BK1 12P4694X032 Rev E.
Brand: Emerson
SKU: 12P4694X032
Price: 975.0 USD
Availability: InStock

P/N: 12P4694X032USED · TESTED

$975.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Emerson DeltaV S-series traditional I/O

Type Discrete input card, 32-channel, 24 VDC, dry contact

Detection levels On: >2 mA; Off: <0.25 mA

Wetting voltage 24 VDC; input impedance approximately 5 kΩ

Local bus power 12 VDC nominal; 50 mA typical, 75 mA maximum

Field circuit power 150 mA maximum at 24 VDC per card

Isolation Each channel optically isolated, factory tested to 1500 VDC

Assembly number 12P4694X032 Rev E (as listed)

Item specifics

Model KJ3203X1-BK1

MPN 12P4694X032

Brand Emerson DeltaV

The Emerson KJ3203X1-BK1 is the DeltaV S-series 32-channel discrete input card for 24 VDC dry contacts. It monitors switches, pushbuttons and relay contacts at high density - 32 points in a single carrier slot - with every channel optically isolated and factory tested to 1500 VDC.

This listing is for one DI 32-channel card, Emerson assembly 12P4694X032 Rev E as shown in the title. The unit is used.

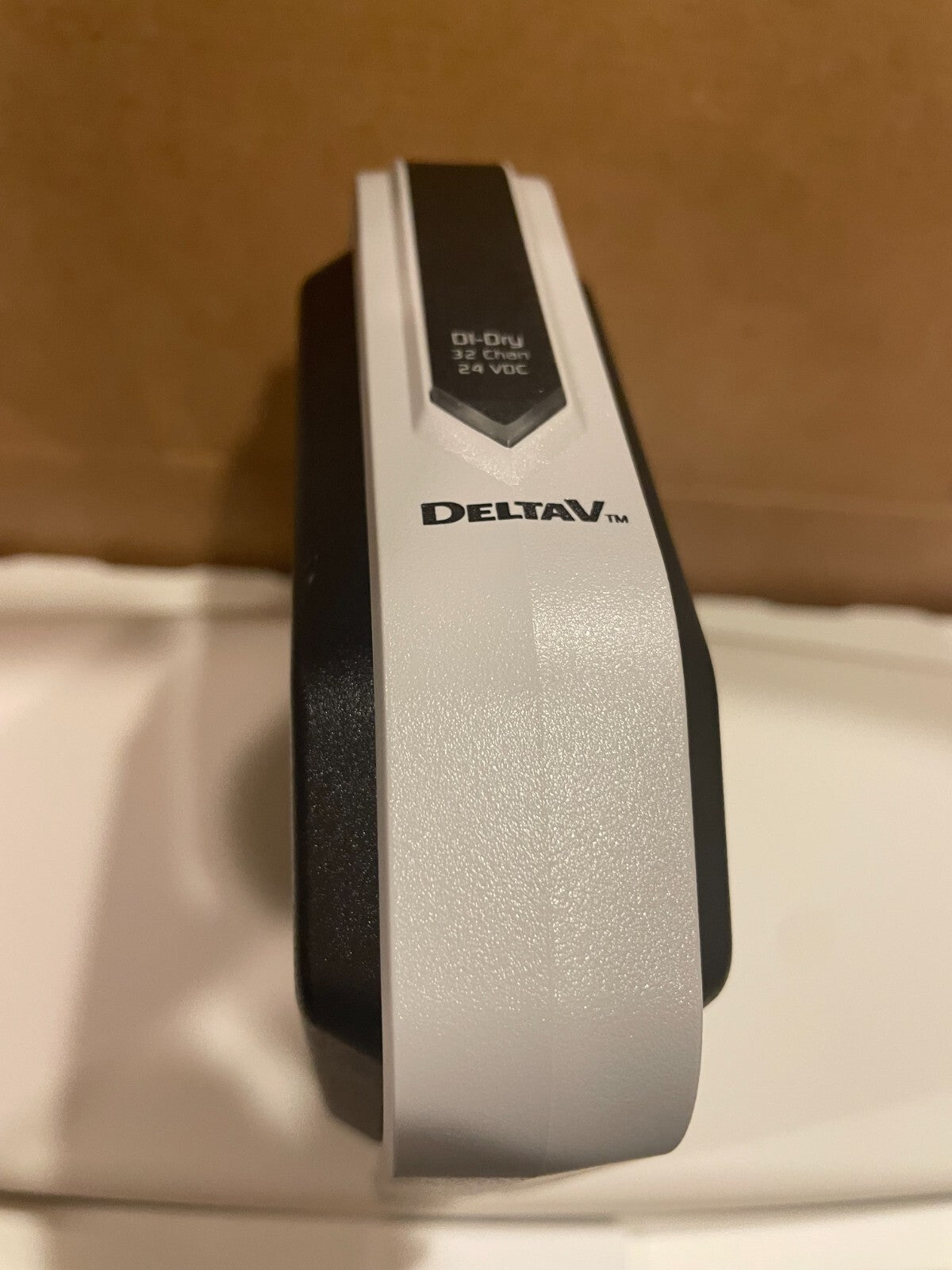

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
