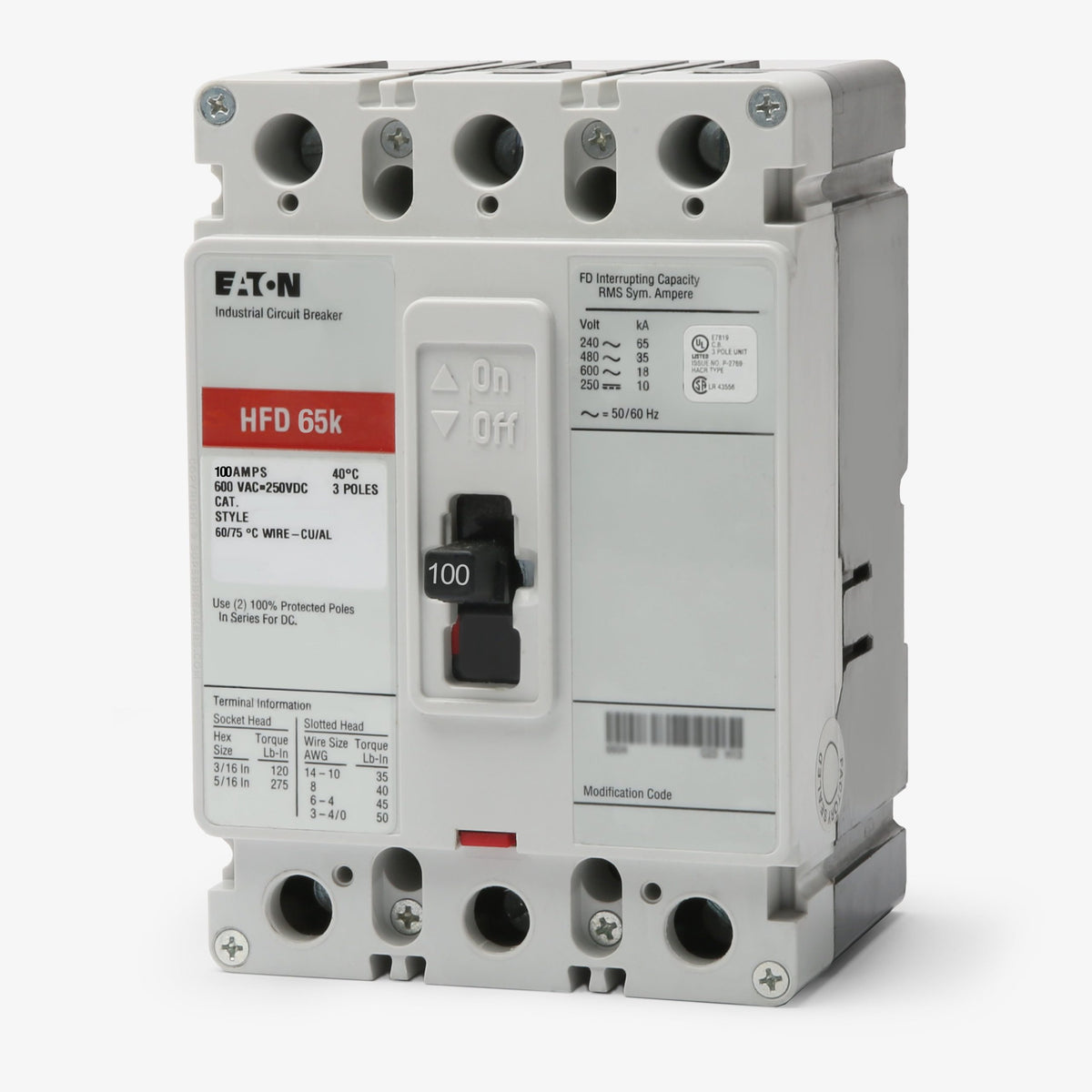

EATON HFD3100L TYPE HFD 100 AMP 600V 65k - New
P/N: HFD3100LNEW · SEALED
$650.00
In stock — last one· ships fast
Request a quote — volume & international30-day warranty included
Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.
Ships from Goleta, CA
Ships to 30+ countries
100% positive feedback
3,200+ items sold
Key specifications
Platform
Eaton Series C F-frame molded case circuit breaker, type HFD (high interrupting)
Voltage rating
600 Vac / 250 Vdc, 50/60 Hz
Interrupting ratings
100 kA @ 240 Vac · 65 kA @ 480 Vac · 25 kA @ 600 Vac · 22 kA @ 250 Vdc
Trip unit
Fixed thermal-magnetic, non-interchangeable (long-time + instantaneous)
Terminals
Line and load lugs, standard
Certification
UL Listed
Item specifics
Mounting Style
Bolt-On
Operating Temperature
40 °C (104 °F)
Interruption Type
Thermal Circuit Breaker
Maximum Amperage
100 A
Number of Phases
3
Current Rating
100 A
MPN
HFD3100L, HFD3100
Material
ABS/Plastic
Suitable For
Interior
Brand
Eaton
Tripping Characteristics
Type A
Operation Method
On/Off
Type
HFD
Break Time
Instantaneous
Control Style
Switch
Number of Ports
4
IP Rating
IP20
Voltage
600 V
Number in Pack
1
Model
HFD3100L
Number of Outlets
3
Number of Poles
3
Compatible Wire Gauge (AWG)
14
Country of Origin
India
The Eaton HFD3100L is a Series C, F-frame molded case circuit breaker from the high-interrupting HFD family, used for feeder and branch protection in commercial and industrial panelboards, switchboards and motor control centers. It carries a 100 A fixed thermal-magnetic trip on a 3-pole frame rated 600 Vac and 250 Vdc, with interrupting capacity of 100 kA at 240 Vac, 65 kA at 480 Vac and 25 kA at 600 Vac.
This listing is for a single new, factory-sealed HFD3100L bolt-on breaker with line and load lugs fitted as standard.

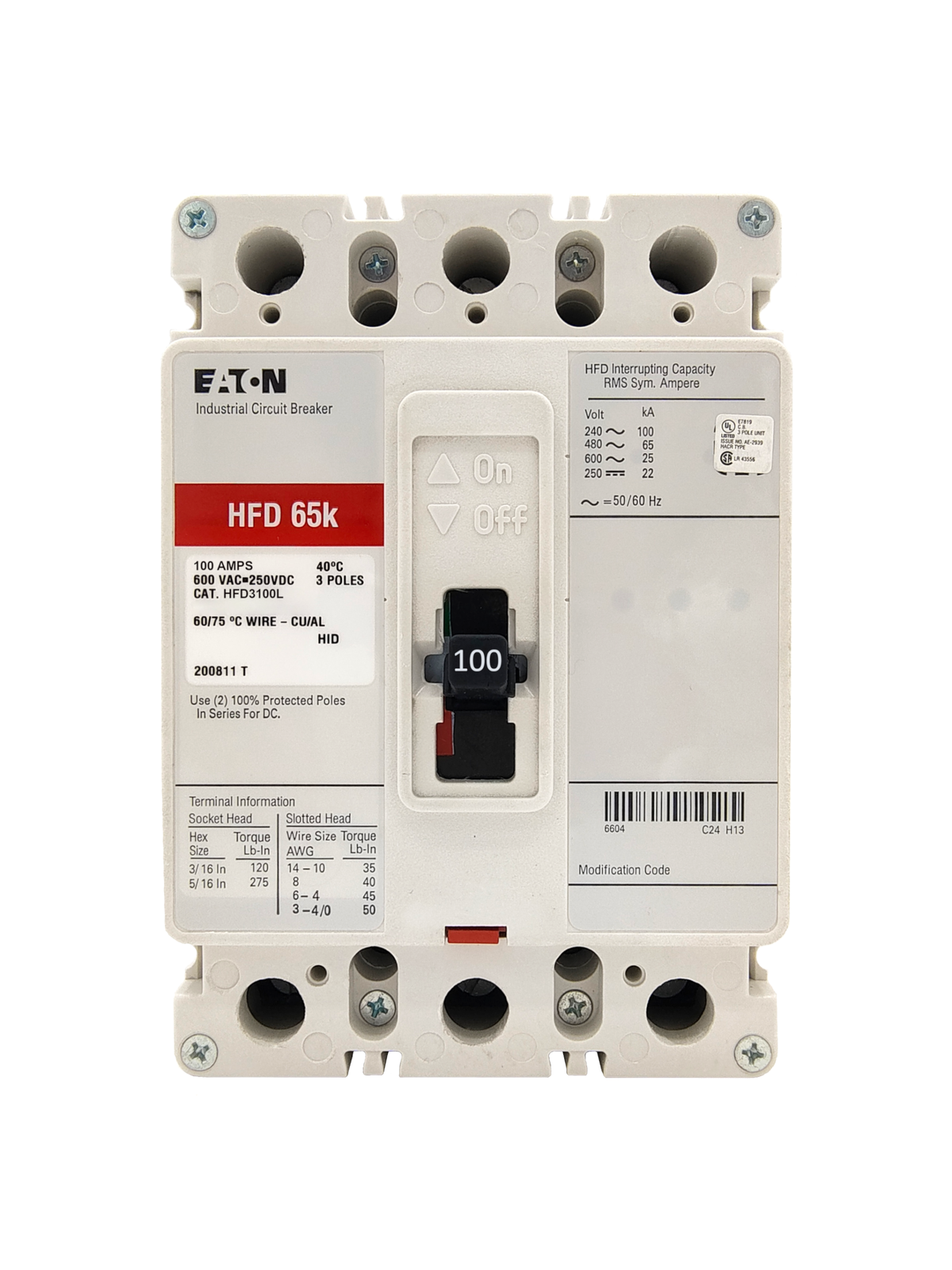

Condition: New · Sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
