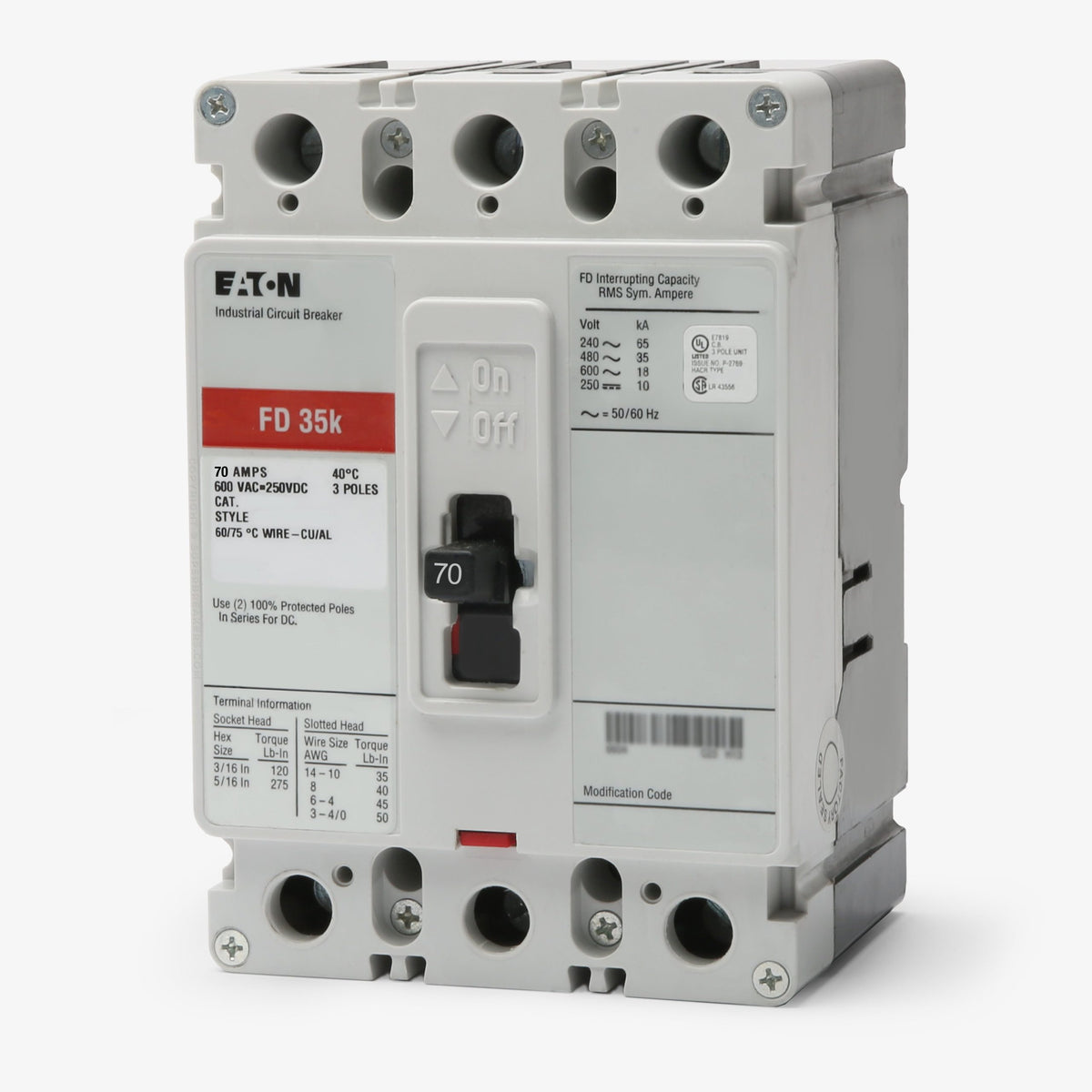

EATON FD3070L Circuit Breaker 70A 600V 3 Poles FD 35k

Name: EATON FD3070L Circuit Breaker 70A 600V 3 Poles FD 35k
Brand: Eaton
SKU: FD3070L
Price: 525.0 USD
Availability: OutOfStock

P/N: FD3070LNEW · SEALED · Open box

$525.00

Out of stock — we can source it

Notify me / source it

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Eaton Series C F-frame molded case circuit breaker, type FD

Rated current 70 A

Poles 3

Voltage rating 600 Vac / 250 Vdc

Interrupting ratings 65 kA @ 240 Vac · 35 kA @ 480 Vac

Trip unit Fixed thermal-magnetic (long-time + instantaneous)

Terminals Feed-thru connection, line and load lugs

Certification UL Listed

Item specifics

Country of Origin DOMINICAN REPUBLIC

Brand Eaton

Model FD3070L

MPN FD3070L

The Eaton FD3070L is a Series C, F-frame molded case circuit breaker, type FD, built for feeder and branch circuit protection in commercial and industrial distribution equipment. It is a 70 A, 3-pole thermal-magnetic breaker rated 600 Vac and 250 Vdc, with interrupting capacity of 65 kA at 240 Vac and 35 kA at 480 Vac — the 35k class called out in the listing title.

This listing is a new, open-box FD3070L feed-thru breaker with line and load lugs.

Condition: New · Open Box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
