TELEMECANIQUE VARIABLE SPEED AC DRIVE, ALTIVAR 21, ATV21HU22N4, 480V, 3HP, 3PH

Name: TELEMECANIQUE VARIABLE SPEED AC DRIVE, ALTIVAR 21, ATV21HU22N4, 480V, 3HP, 3PH
Brand: Telemecanique
SKU: ATV21HU22N4
Price: 399.0 USD
Availability: InStock

P/N: ATV21HU22N4USED · TESTED

$399.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Altivar 21 (ATV21) variable speed drive for three-phase asynchronous motors

Rated motor power 2.2 kW / 3 HP

Supply voltage 380 V -15% to 480 V +10%, three-phase, 50/60 Hz

Output current 5.1 A continuous · 5.6 A transient (60 s)

Output frequency range 0.5 to 200 Hz

Motor control Energy-saving, quadratic/constant V/Hz, sensorless flux vector

Communication Embedded Modbus (RS-485, RJ45) · BACnet, LonWorks, METASYS N2, APOGEE FLN option cards

Enclosure / EMC IP20 open type (UL Type 1 with vent cover and conduit kit) · integrated Class A EMC filter

Overview

Brand Schneider Electric

Part number ATV21HU22N4

Condition Used · Tested

Details 480V

3HP

3-phase

Item specifics

Country of Origin Japan

Model ALTIVAR 21

MPN ATV21HU22N4

Brand TELEMECANIQUE

The Altivar 21 is Schneider Electric's adjustable-speed AC drive family for three-phase asynchronous motors on variable-torque loads — the fans and pumps that dominate HVAC and building-services work. Sold under Schneider's Telemecanique brand, the ATV21HU22N4 is rated 2.2 kW (3 HP) from a 380–480 V three-phase supply and delivers 5.1 A of continuous output across a 0.5–200 Hz frequency range. Control choices run from energy-saving and V/Hz modes to sensorless flux vector, with Modbus built in over RS-485 and option cards available for BACnet, LonWorks, METASYS N2, and APOGEE FLN building networks.

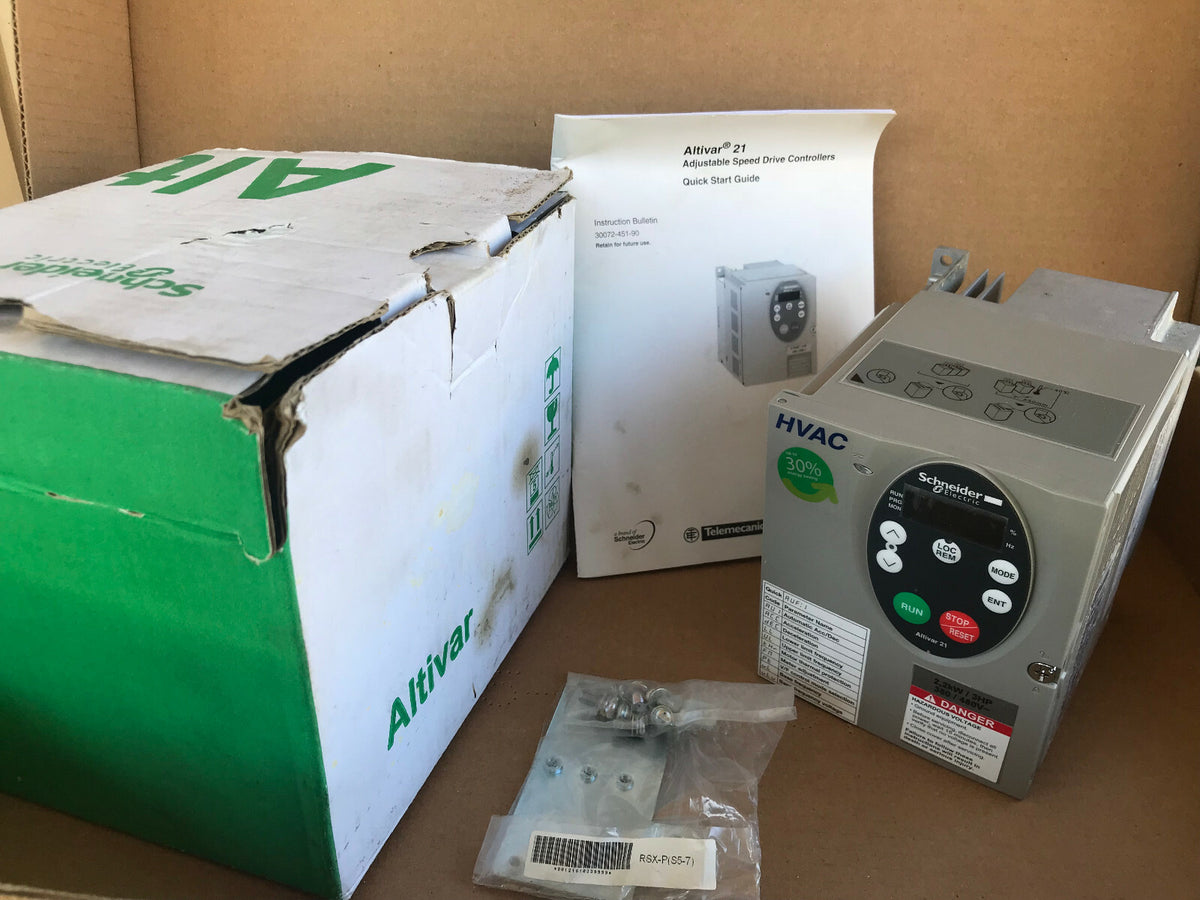

This listing is for the drive unit itself: a Japan-built ATV21HU22N4 in the compact IP20 open-style frame with an integrated Class A EMC filter, exactly as photographed. It ships in the manufacturer's box with the owner's manual and mounting bracket included, and suits maintenance spares or a like-for-like replacement for Altivar 21 drives already in service, with no re-engineering around a newer platform.

Condition: Used, tested, as listed, with some cosmetic blemishes on the unit. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
